Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

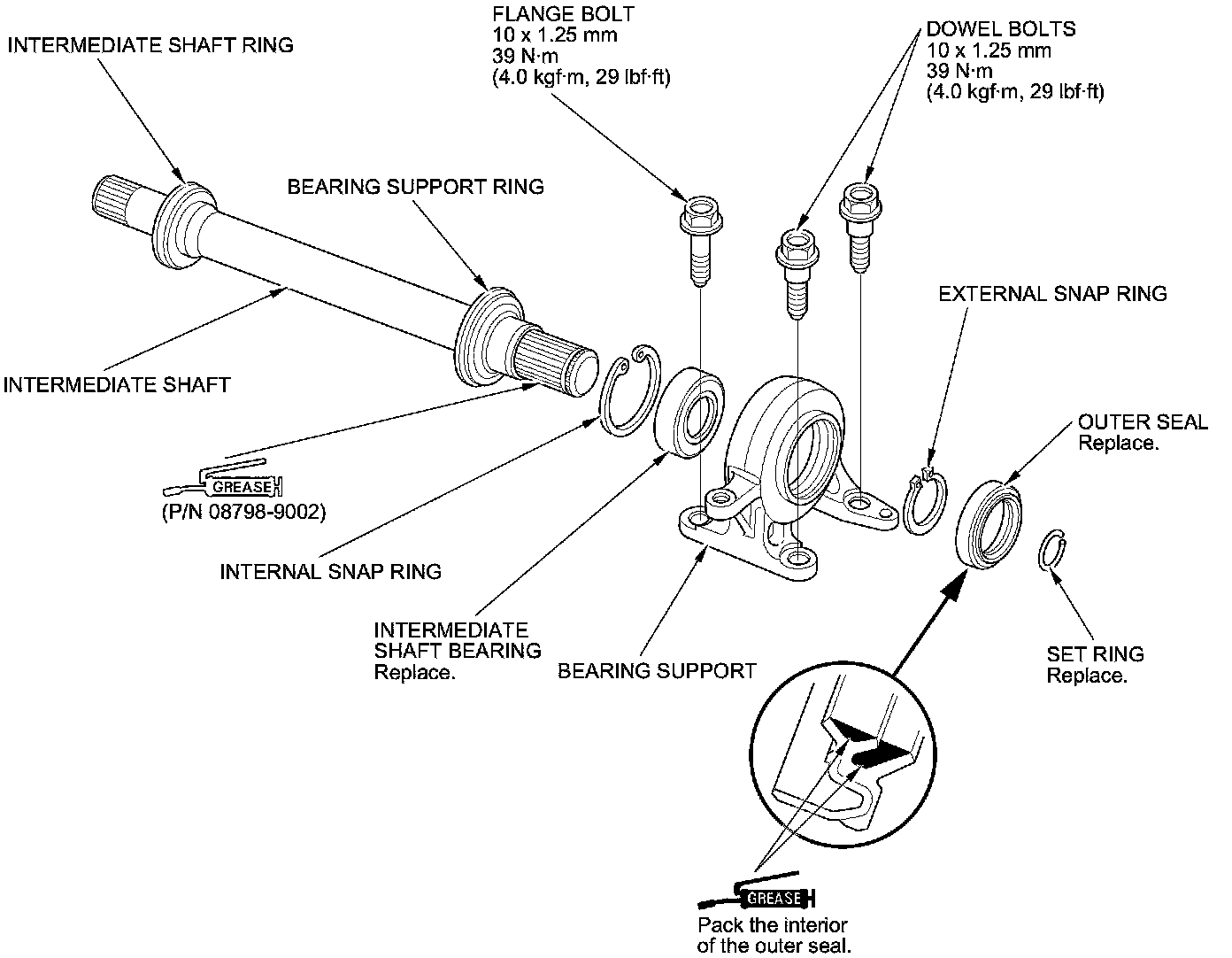

Exploded View





Special Tools Required

- Bearing Driver Attachment, 52 x 55 mm 07746-0010400
- Bearing Driver Attachment, 35 mm I.D. 07746-0030400
- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver, 64 mm 07GAD-PH70201

NOTE: Refer to the Exploded View, as needed, during this procedure.

1. Clean the disassembled parts with solvent, and dry them with compressed air.

NOTE: Do not wash the rubber parts with solvent.

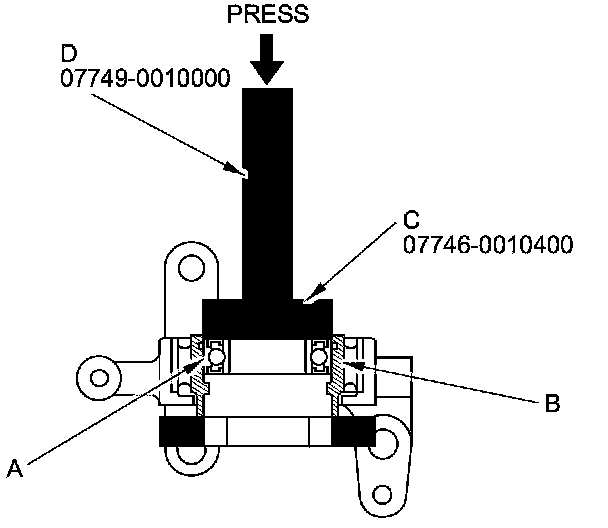

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment (C), the 15 x 135L driver handle (D), and a press.

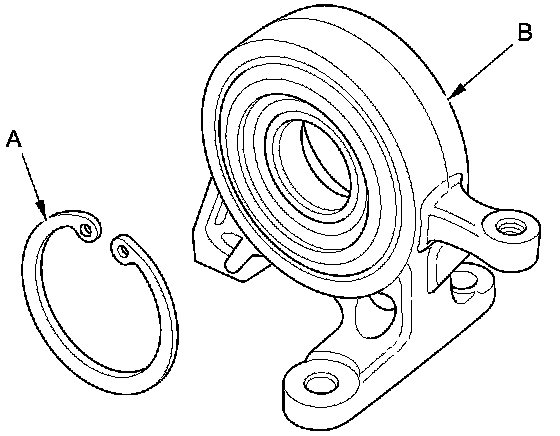

3. Install the internal snap ring (A) into the groove of the bearing support (B).

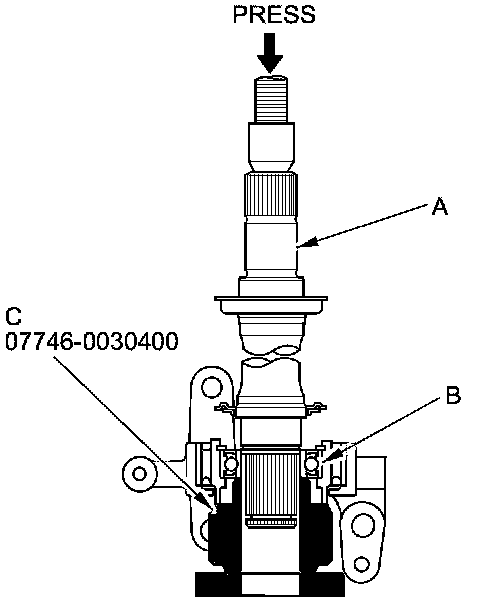

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm inner driver (C) and a press.

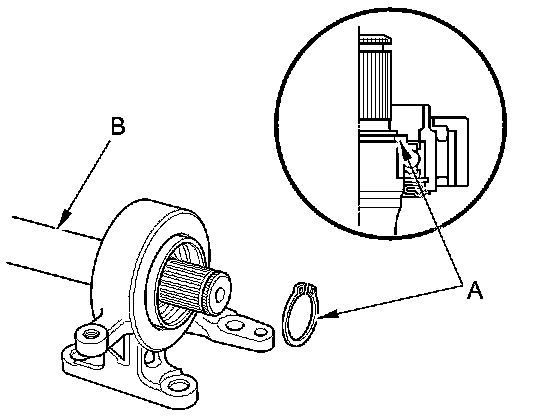

5. Install the external snap ring (A) into the groove of the intermediate shaft (B).

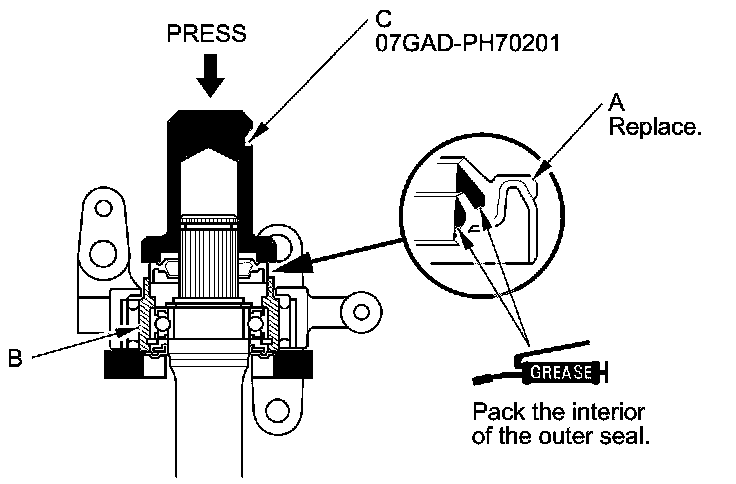

6. Install a new outer seal (A) into the bearing support (B) using the 64 mm oil seal driver (C) and a press.
