Driveshaft Dynamic Damper Replacement




Driveshaft Dynamic Damper Replacement

1. Remove the inboard joint.

2. Remove the dynamic damper band.

3. Remove the dynamic damper (A).





4. Install a new dynamic damper.

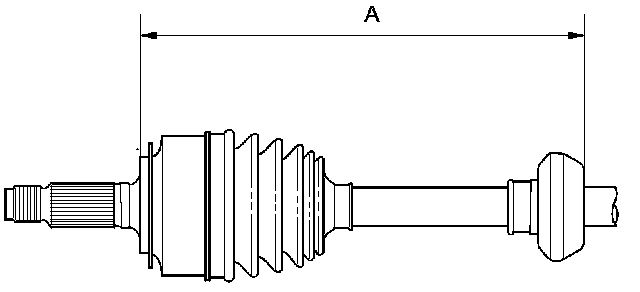

5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.









6. Install the dynamic damper band.

7. Install the inboard joint.
