Rear Driveshaft Removal

Rear Driveshaft Removal

1. Raise and support the vehicle Service and Repair.

2. Remove the rear wheel.

3. Remove the rear differential assembly Rear Differential Removal.

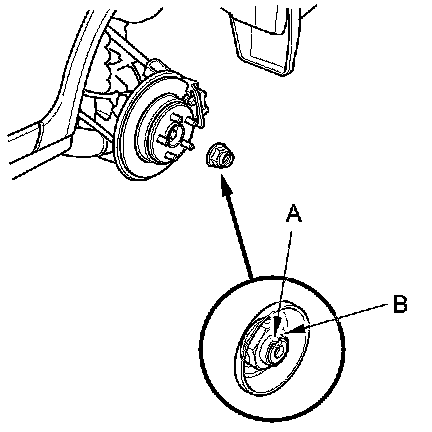

4. Pry up the stake (A) on the spindle nut (B), then remove the nut.

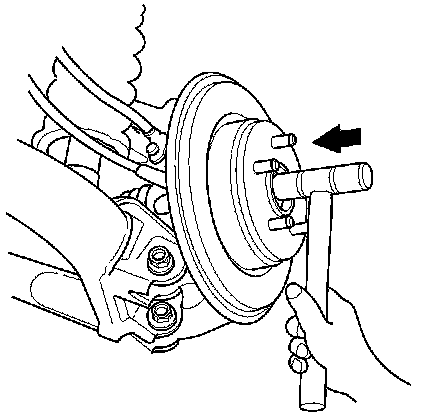

5. Remove the outboard joint from the rear hub using a soft face hammer or a puller if necessary.

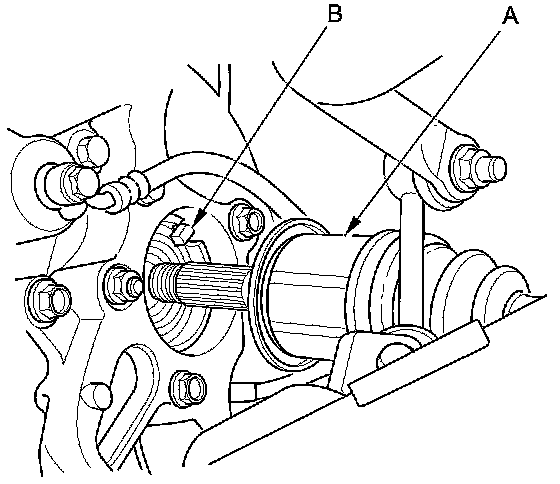

6. Remove the rear driveshaft (A).

NOTE:

- Be careful not to damage the wheel speed sensor (B).
- Pull on the outboard joint. Do not pull on the driveshaft because the joint may come apart.

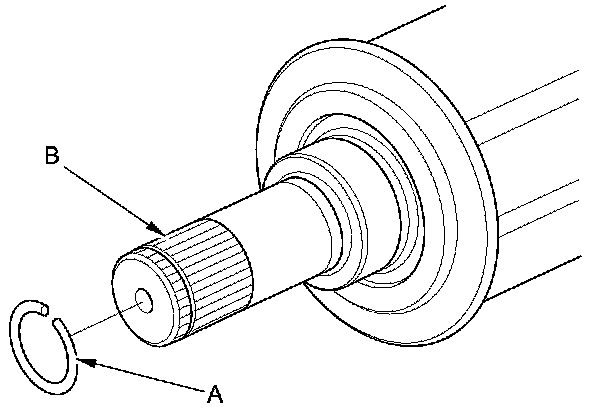

7. Remove the set ring (A) from the inboard joint (B).
