Transfer Drive Gear Bearing Replacement (M/T)

Transfer Drive Gear Bearing Replacement

Special Tools Required

- Bearing Driver Attachment, 37 x 40 mm 07746-0010200
- Bearing Driver Attachment, 42 x 47 mm 07746-0010300
- Driver Handle, 15 x 135L 07749-0010000
- Installer Attachment 40 mm 07LAD-PW50601

NOTE: Coat all parts with MTF during reassembly.

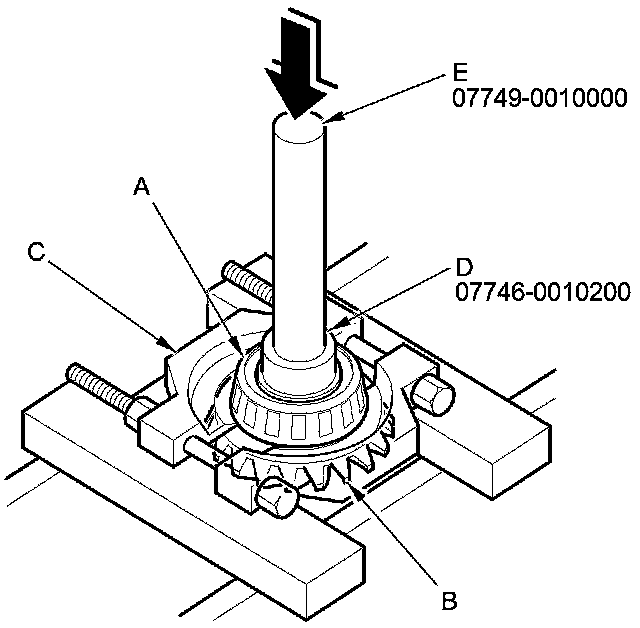

1. Remove the 76.2 mm tapered roller bearing (A) from the transfer drive gear (B) using a commercially available bearing separator (C), the 37 x 40 mm bearing driver attachment (D), the 15 x 135L driver handle (E), and a press.

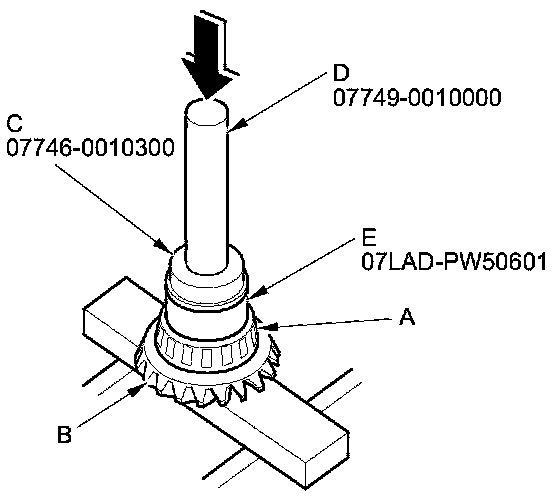

2. Install a new 76.2 mm tapered roller bearing (A) on the transfer drive gear (B) using the 42 x 47 mm bearing driver attachment (C), the 15 x 135L driver handle (D), the 40 mm installer attachment (E), and a press.
