Transfer Holder Disassembly (M/T)

Transfer Holder Disassembly

1. Cut the stake of the transfer shaft locknut using a chisel. Keep all of the chiseled particles out of the transfer shaft assembly.

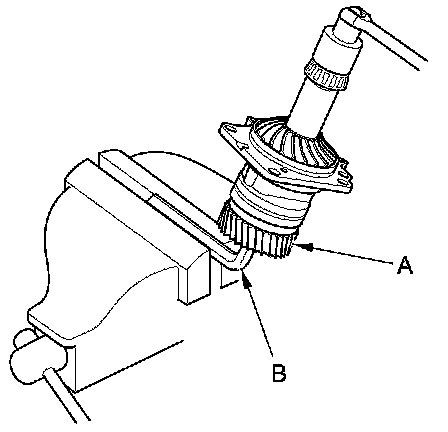

2. Hold the transfer shaft assembly (A) with a 14 mm hex wrench (B) clamped in a bench vise, then loosen the transfer shaft locknut.

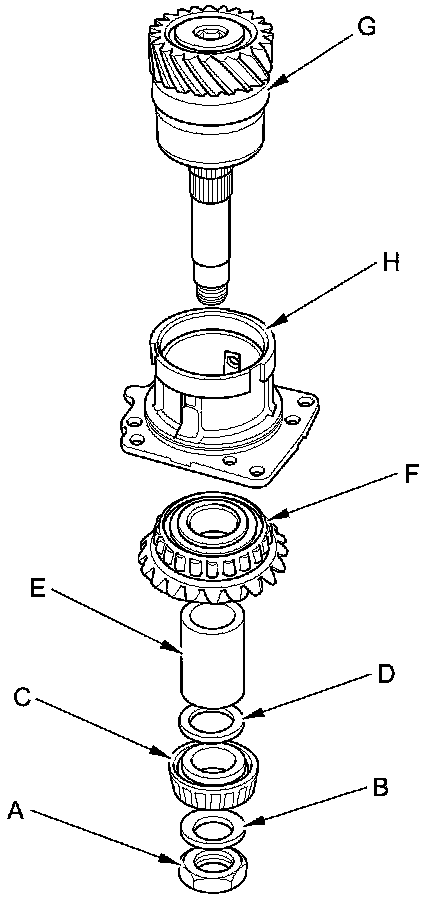

3. Remove the transfer shaft locknut (A), the conical spring washer (B), the 57 mm tapered roller bearing (C), the 25 mm thrust shim (D), the transfer collar (E), the transfer drive gear (F), and the transfer shaft assembly (G) from the transfer holder (H).
