Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation (A/T)

Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 72 x 75 mm 07746-0010600

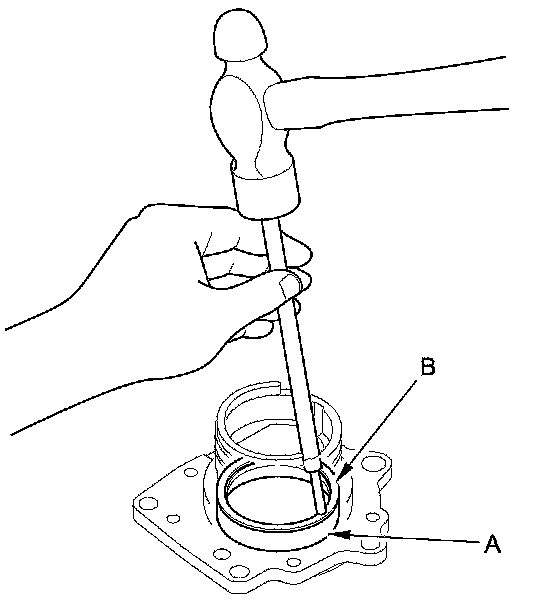

1. Remove the tapered roller bearing outer race (A) and the 75 mm thrust shim (B) from the transfer holder.

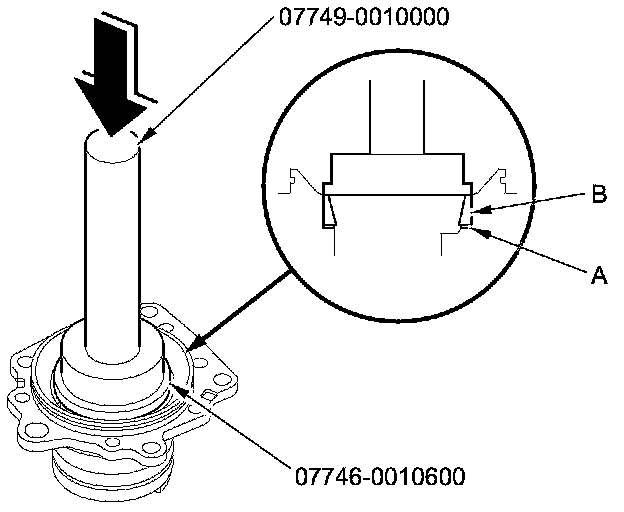

2. Install the 75 mm thrust shim (A) in the transfer holder, then install the tapered roller bearing outer race (B) using the driver handle and the 72 x 75 mm attachment.
