Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation (M/T)

Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation

Special Tools Required

- Bearing Driver Attachment, 72 x 75 mm 07746-0010600
- Driver Handle, 15 x 135L 07749-0010000

NOTE: Coat all parts with MTF during reassembly.

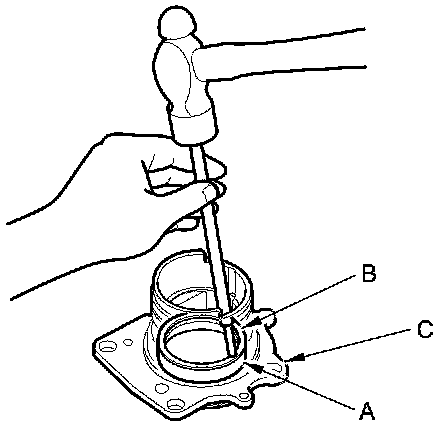

1. Remove the 76.2 mm tapered roller bearing outer race (A) and the 76 mm thrust shim (B) from the transfer holder (C).






2. Install the 76 mm thrust shim (A) in the transfer holder.

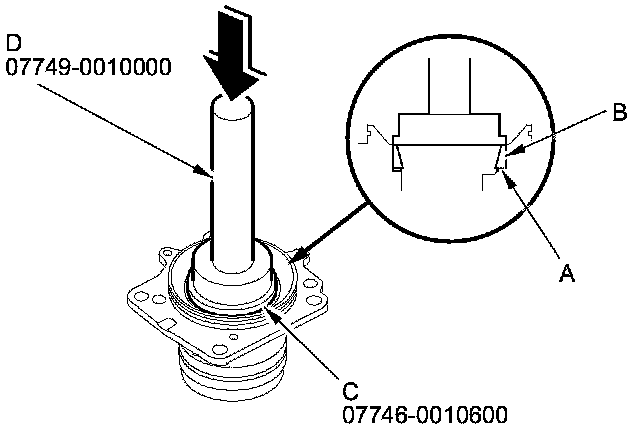

3. Install the 76.2 mm tapered roller bearing outer race (B) using the 72 x 75 mm bearing driver attachment (C), the 15 x 135L driver handle (D), and a press in the direction shown.
