Transfer Housing Tapered Roller Bearing Outer Race Replacement (A/T)

Transfer Housing Tapered Roller Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment 07947-SD90101
- Bearing Installer Attachment 07KAF-PS30120
- Bearing Installer Attachment 07LAF-PZ70110
- Installer Shaft, 14 x 165 mm 07JAF-SJ80110
- Installer Nut, 14 mm 07JAF-SJ80120

NOTE: Replace the bearing outer race and the tapered roller bearing as a set.

1. Remove the 57 mm bearing outer race (A), the 62 mm bearing outer race (B), and the 50.3 mm bearing outer race (C) from the transfer housing by heating the transfer housing to about 212 °F (100 °C) using a heat gun. Do not heat the housing more than 212 °F(100 °C). Some 57 mm outer races are press-fitted in the transfer housing.

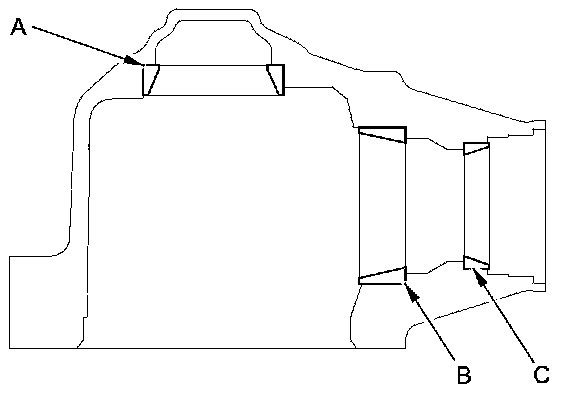

Bearing Outer Race Locations

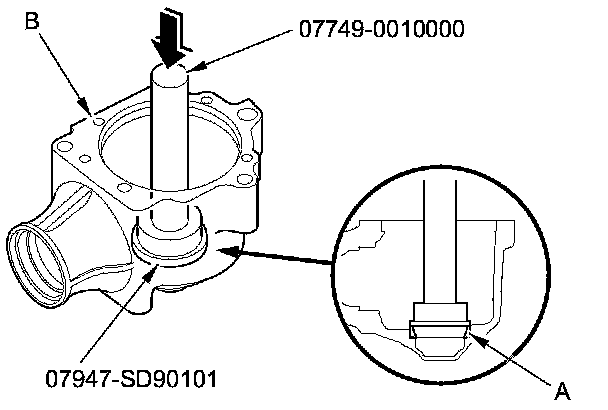

2. Install the 57 mm bearing outer race (A) in the housing (B) using the driver handle and the oil seal driver attachment.

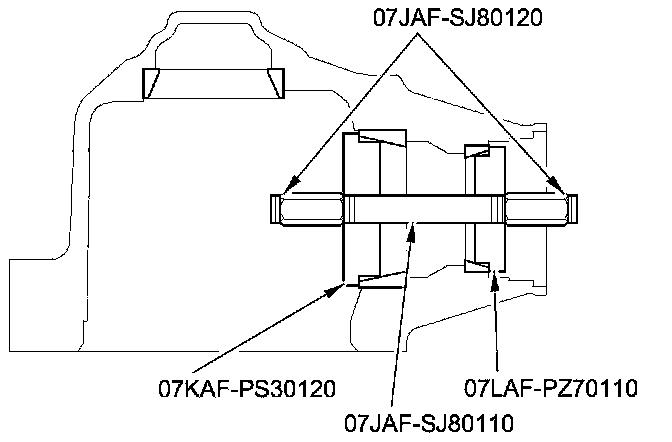

3. Install the 62 mm bearing outer race and the 50.3 mm bearing outer race in the housing using the installer nuts, the installer shaft, and the bearing installer attachments.
