Transfer Housing Tapered Roller Bearing Outer Race Replacement (M/T)

Transfer Housing Tapered Roller Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment 07947-SD90101
- Installer Shaft, 14 x 165 mm 07JAF-SJ80110
- Installer Nut, 14 mm 07JAF-SJ80120
- Bearing Installer Attachment 07KAF-PS30120
- Bearing Installer Attachment 07LAF-PZ70110

NOTE:

- Coat all parts with MTF during reassembly.
- Replace the tapered roller bearing and the tapered roller bearing outer race as a set if either part is replaced.

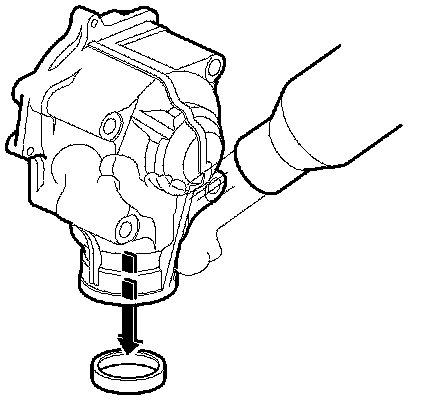

1. Remove the tapered roller bearing outer races from the transfer housing by heating the transfer housing to about 212 °F (100 °C) using a heat gun.

NOTE: Do not heat the transfer housing more than 212 °F (100 °C).

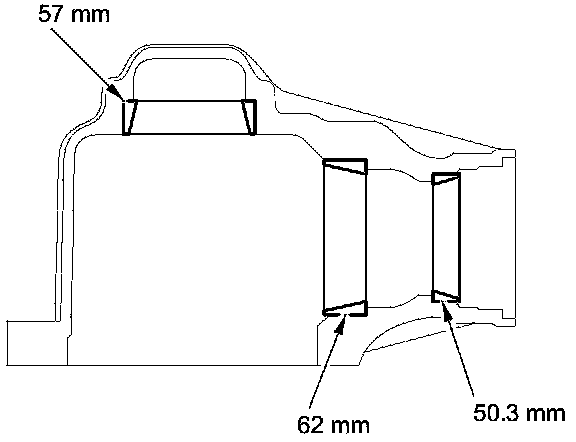

Bearing Outer Race Locations

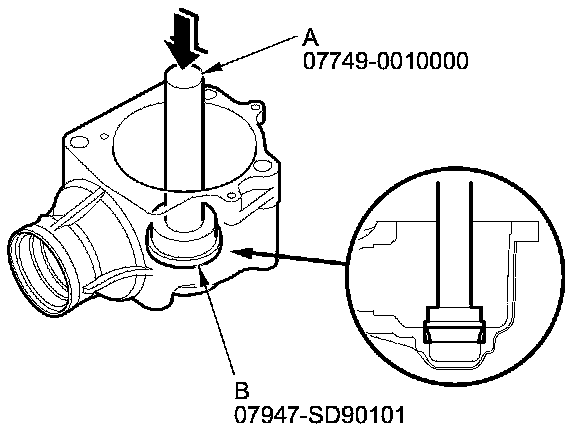

2. Install the 57 mm tapered roller bearing outer race using the 15 x 135L driver handle (A) and oil seal driver attachment (B) in the direction shown.

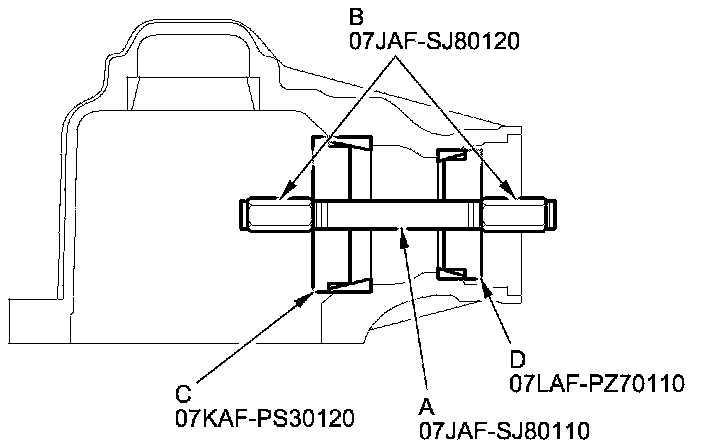

3. Install the 62 mm tapered roller bearing outer race and 50.3 mm tapered roller bearing outer race using the 14 x 165 mm installer shaft (A), 14 mm installer nut (B), bearing installer attachment (C), and (D) in the direction shown.
