Transfer Output Shaft Bearing Removal/Installation (A/T)

Transfer Output Shaft Bearing Removal/Installation

Special Tools Required

- Driver Handle, 40 mm I.D. 07746-0030100
- Bearing Driver Attachment, 35 mm I.D. 07746-0030400

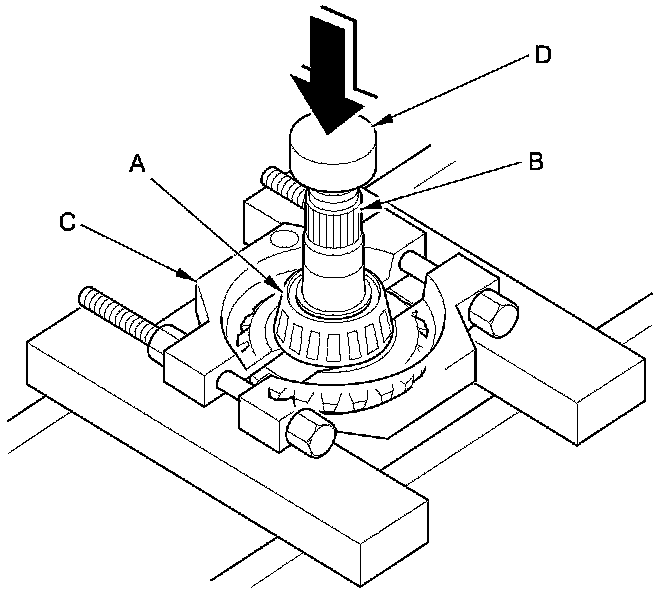

1. Remove the tapered roller bearing (A) from the transfer output shaft (B) using a bearing separator (C) and a press. Place a spacer (D) between the transfer output shaft and the press to prevent damaging the transfer output shaft.

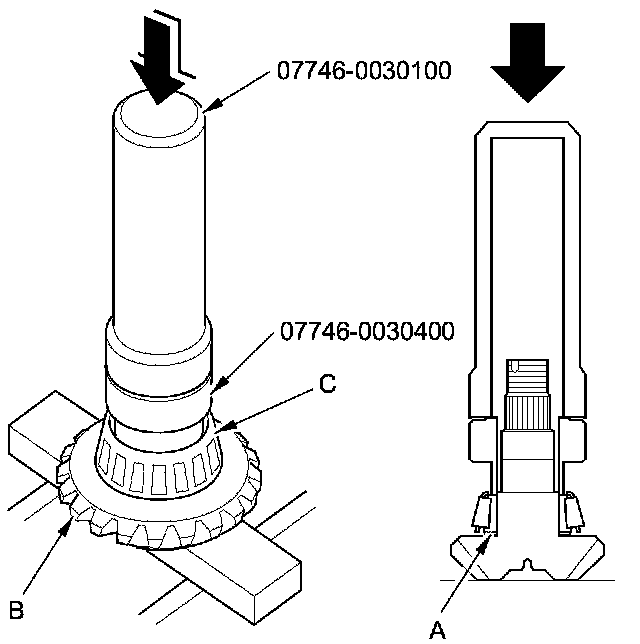

2. Install the 35 mm thrust shim (A) on the transfer output shaft (B).





3. Install the tapered roller bearing (C) on the transfer output shaft using the 40 mm I.D. driver handle, the 35 mm I.D. attachment, and a press.
