Transfer Assembly Installation (A/T)

Transfer Assembly Installation

1. Clean the area where the transfer assembly contacts the transmission with solvent, and dry with compressed air. Then apply ATF to the contact areas. When installing the transfer assembly, be sure not to allow dust or other foreign particles to enter the transmission.

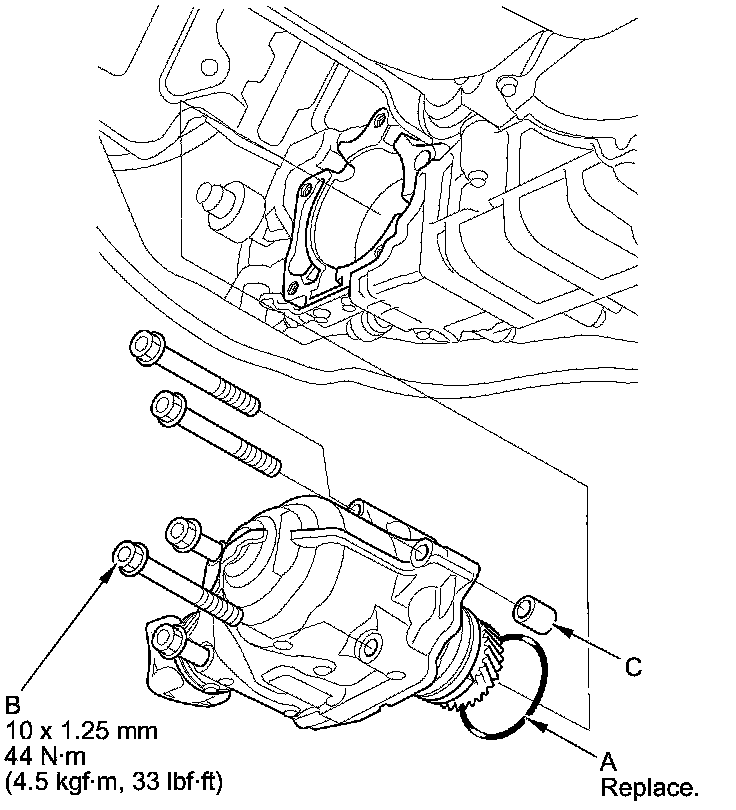

2. Install a new O-ring (A) on the transfer.





3. Insert the five bolts (B) in the transfer housing, then install the transfer assembly with the dowel pin (C).

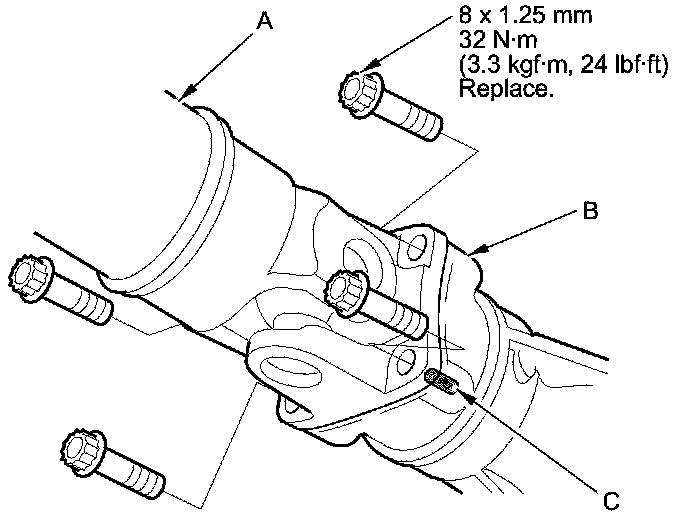

4. Install the No. 1 propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).





5. Refill the transmission with ATF.

6. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level ATF Level Check.
