Transfer Assembly Installation (M/T)

Transfer Assembly Installation

NOTE:

- While installing the transfer assembly on the transmission, do not allow dust or other foreign particles to enter the transmission.
- Be careful not to damage the clutch housing with transfer gear.

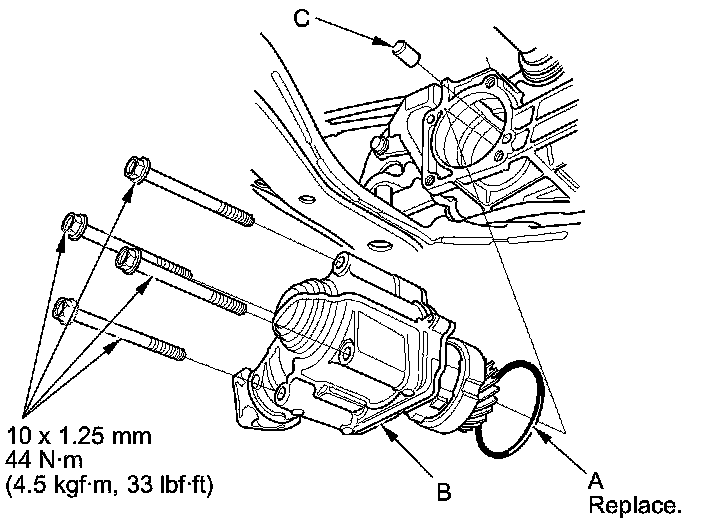

1. Apply MTF to a new O-ring (A). Then install it on the transfer assembly (B), then install the 10 x 20 mm dowel pin (C) on the transmission.





2. Apply MTF to the transfer gear and transmission contact area, then install the transfer assembly on the transmission.

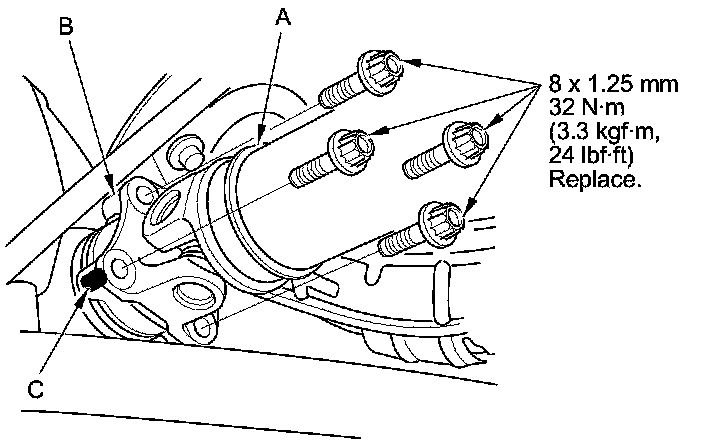

3. Install the No. 1 propeller shaft (A) on the transfer assembly (B) by aligning the reference marks (C) you made.





4. Refill the transmission with MTF to the proper level Service and Repair.

5. Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level Service and Repair.

6. Test-drive the vehicle.
