Transfer Assembly Removal (M/T)

Transfer Assembly Removal

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Drain the MTF. Reinstall the drain plug with a new washer Service and Repair.

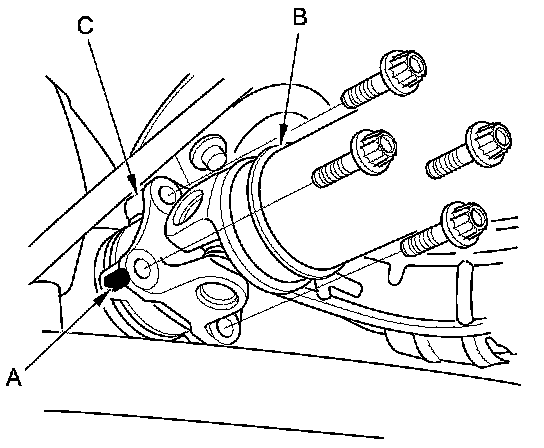

3. Make reference marks (A) across the No.1 propeller shaft (B) and the transfer companion flange (C).





4. Separate the No.1 propeller shaft from the transfer assembly.

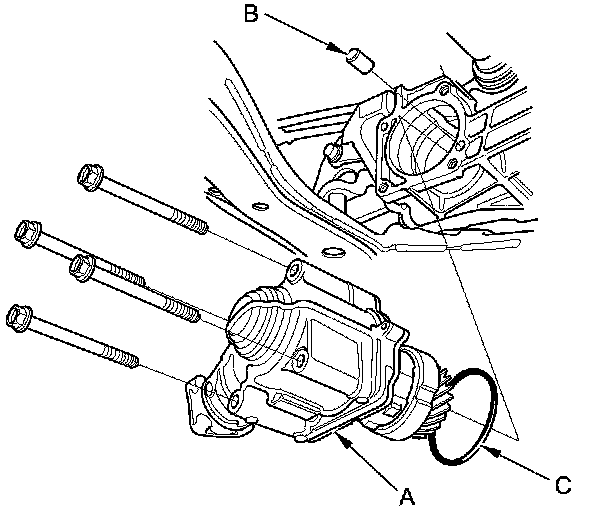

5. Remove the transfer assembly (A), the 10 x 20 mm dowel pin (B), and the O-ring (C).
