Windshield Washer Hose: Service and Repair

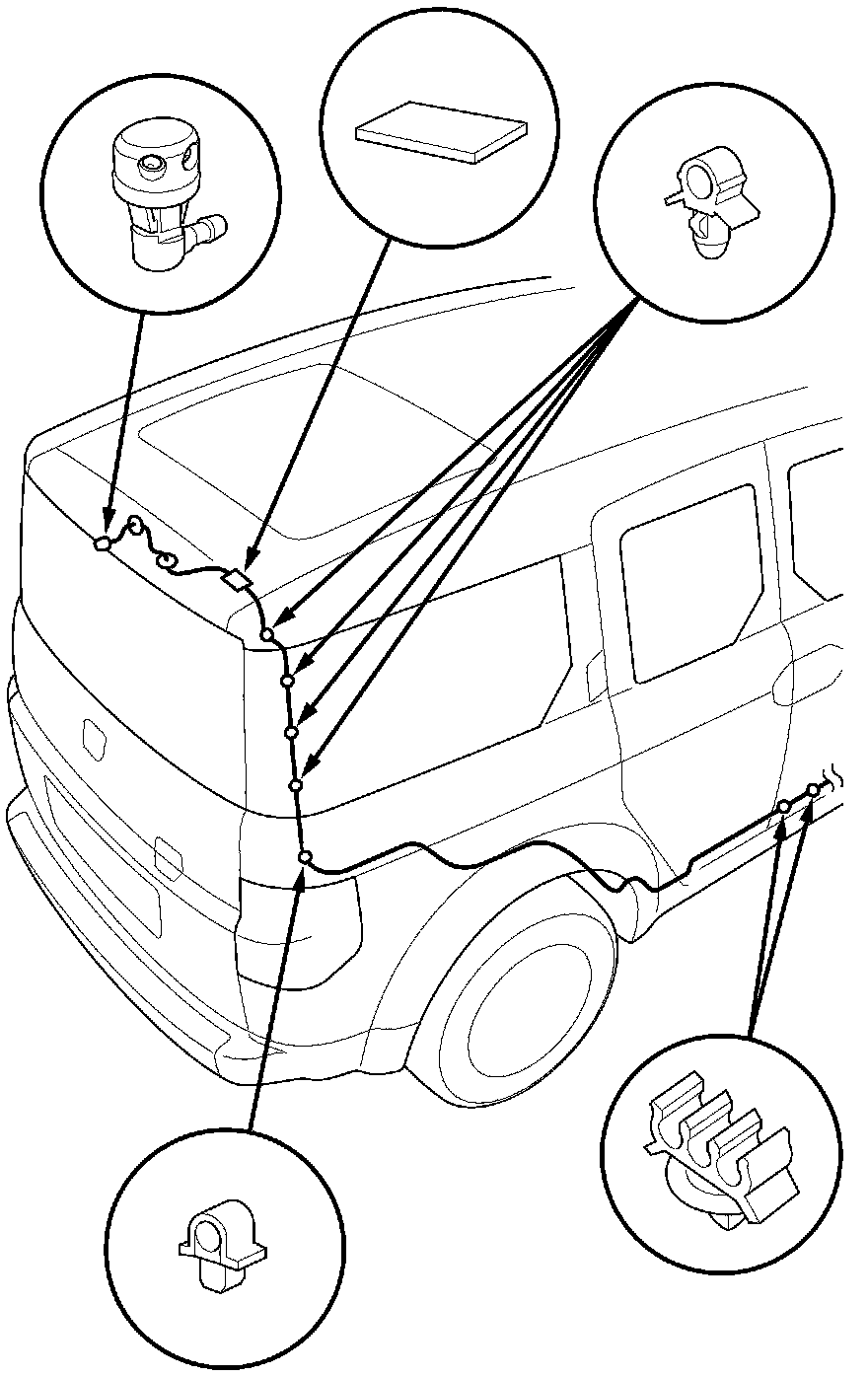

Washer Tube Replacement

1. Remove the right inner fender.
- '09-11 models Service and Repair

2. Remove the washer nozzles and clips, then remove the tubes.










3. Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.

NOTE: Make sure the washer tube is routed behind the side curtain airbag tether strap Side Curtain Airbag Replacement.
