B2033

DTC Troubleshooting: B2033

DTC B2033:

Left Power Slide Motor Circuit Malfunction

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Turn the ignition switch to LOCK (0), and then back to ON (II).

2. Turn the power sliding door main switch ON.

3. Operate the open side of the left power sliding door switch four or more times.

4. Clear the DTCs with the HDS.

5. Check for DTCs with the HDS.

Is DTC B2033 indicated?

YES -

Go to step 6.

NO -

Intermittent failure, the power sliding door system is OK at this time. Check for loose or poor connections at the left power sliding door control unit connectors, and at the left power slide motor connectors.�

6. Turn the ignition switch to LOCK (0).

7. Disconnect left power sliding door control unit connector C (5P).

8. Disconnect the 2P connector from the left power slide motor assembly.

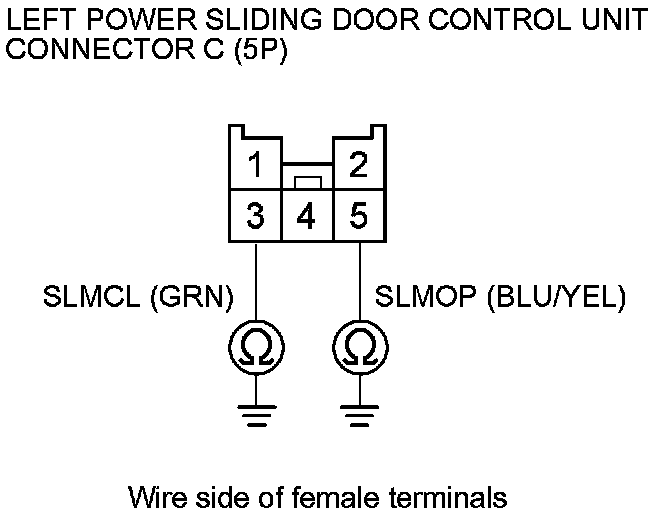

9. Check for continuity between left power sliding door control unit connector C (5P) terminals No. 3 and No. 5 and body ground individually.





Is there continuity?

YES -

Repair a short to ground in the wire.�

NO -

Go to step 10.

10. Do the left power slide motor test Power Sliding Door Slide Motor Test.

Is the motor OK?

YES -

Replace the left power sliding door control unit.�

NO -

Replace the left power slide motor assembly.�
