61-2x
SRS DTC Troubleshooting: 61-2x
DTC 61-2x ("x" can be 0 thru 9 or A thru F):
Short in the Driver's Seat Belt Buckle Switch
NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes, and Battery Terminal Disconnection and Reconnection Procedures.
1. Clear the DTC memory Reading and Clearing Diagnostic Trouble Codes.
2. Turn the ignition switch to ON (II), then buckle and un-buckle the driver's seat belt several times.
3. Read the DTC Reading and Clearing Diagnostic Trouble Codes.
Is DTC 61-2x indicated?
YES -
Go to step 4.
NO -
Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures Reading and Clearing Diagnostic Trouble Codes. If another DTC is indicated, troubleshoot the DTC.�
4. Turn the ignition switch to LOCK (0).

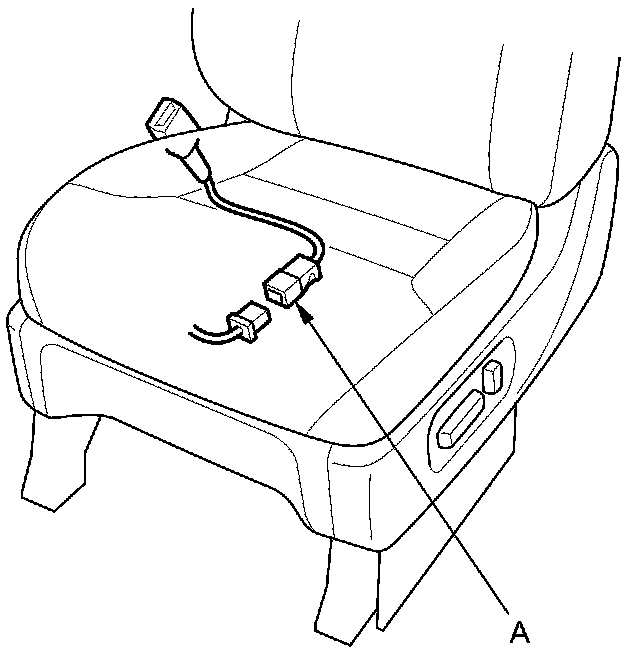

5. Disconnect the driver's seat wire harness (with driver's 8-way power seat) or floor wire harness (with driver's manual height adjustable seat) 3P connector from the driver's seat belt buckle switch 3P connector (A).
6. Buckle the driver's seat belt.

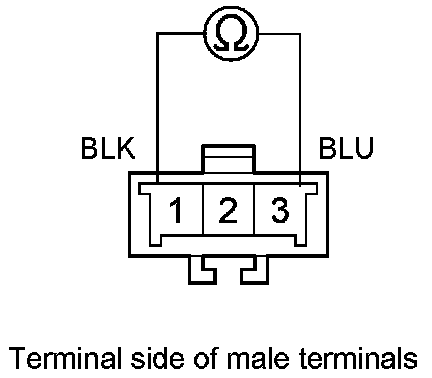

- Measure the resistance between driver's seat belt buckle switch 3P connector terminals No. 1 and No. 3. There should be less than 1.0 Ohms.

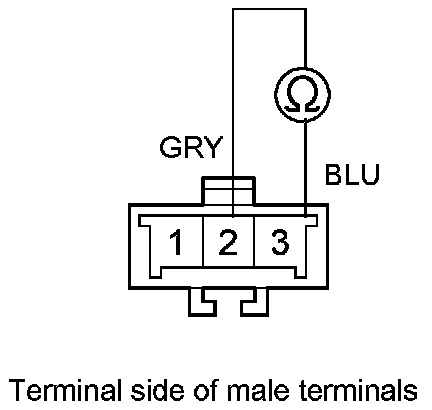

- Measure the resistance between driver's seat belt buckle switch 3P connector terminals No. 2 and No. 3. There should be an open circuit or least 1 MOhms.
Are the resistances as specified?
YES -
Go to step 7.
NO -
Replace the driver's seat belt buckle assembly Front Seat Belt Replacement, then clear the DTC.�
7. Un-buckle the driver's seat belt.

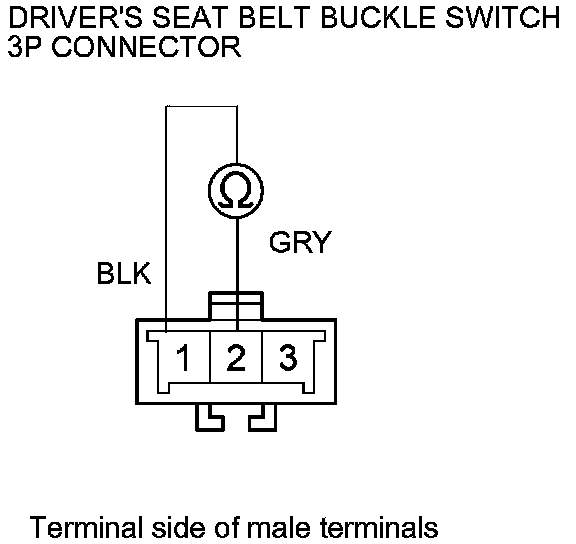

- Measure the resistance between driver's seat belt buckle switch 3P connector terminals No. 1 and No. 2. There should be less than 1.0 Ohms.

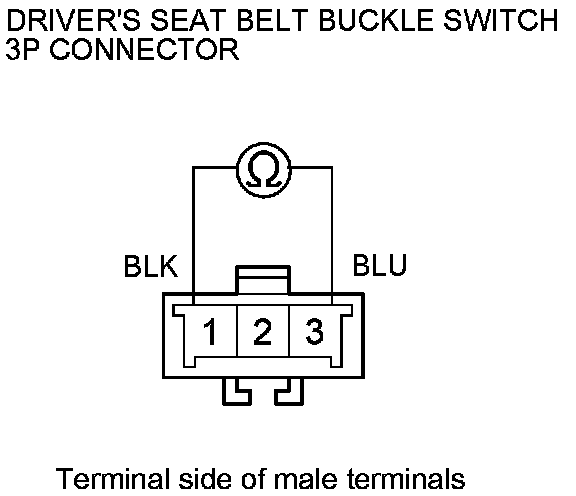

- Measure the resistance between driver's seat belt buckle switch 3P connector terminals No. 1 and No. 3. There should be an open circuit or at least 1 MOhms.
Are the resistances as specified?
YES -
Go to step 8.
NO -
Replace the driver's seat belt buckle assembly Front Seat Belt Replacement, then clear the DTC.�

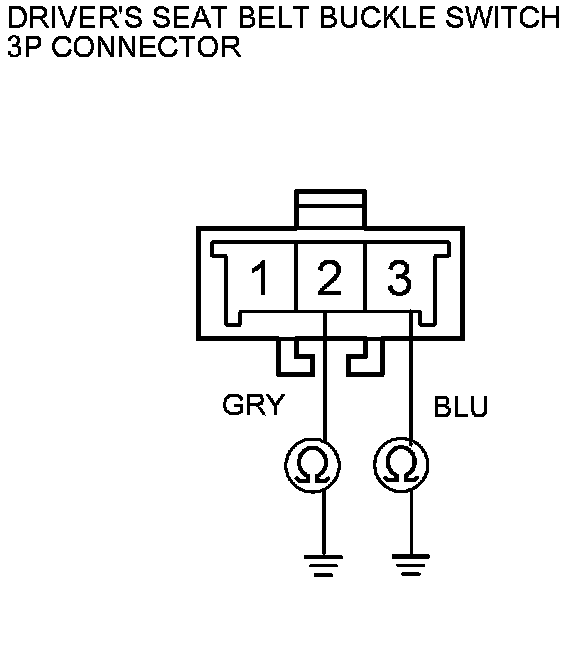

8. Measure the resistance between body ground and driver's seat belt buckle switch 3P connector terminals No. 2 and No. 3, individually. There should an open circuit or at least 1 MOhms.
Is the resistance as specified?
YES -
Go to step 9.
NO -
Replace the driver's seat belt buckle assembly Front Seat Belt Replacement, then clear the DTC.�
9. Disconnect the negative cable from the battery, then wait at least 3 minutes.
10. Disconnect both seat belt tensioner 4P connectors Service and Repair.
11. Disconnect SRS unit connector B (28P) from the SRS unit Service and Repair.

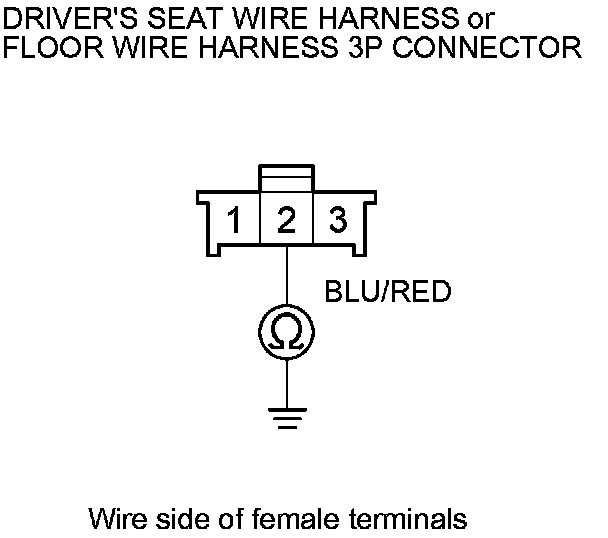

12. Measure the resistance between driver's seat wire harness (with driver's 8-way power seat) or floor wire harness (with driver's manual height adjustable seat) 3P connector terminals No. 2 and body ground. There should be an open circuit or at least 1 MOhms.
Is the resistance as specified?
YES -
Check the connections at the floor wire harness, connector F (14P), and connector H (14P) at the driver's under-dash fuse/relay box Passenger's Under-dash Fuse/Relay Box Connector Locations. If the connections are OK, go to step 13.
NO -
Short to ground in the driver's seat wire harness (with driver's 8-way power seat) or floor wire harness, or the MICU/under-dash fuse/relay box. Replace the faulty harness or part, then clear the DTC.�

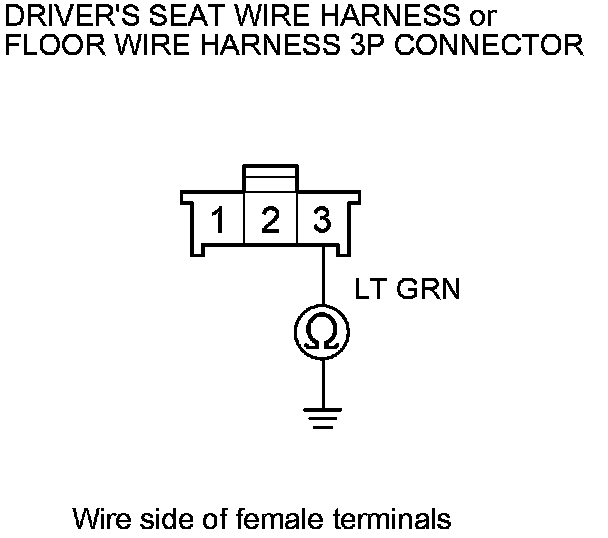

13. Measure the resistance between driver's seat wire harness (with driver's 8-way power seat) or floor wire harness (with driver's manual height adjustable seat) 3P connector terminals No. 3 and body ground. There should be an open circuit or at least 1 MOhms.
Is the resistance as specified?
YES -
Faulty SRS unit; replace the SRS unit SRS Unit Replacement.�
NO -
Short to ground in the driver's seat wire harness (with driver's 8-way power seat) or floor wire harness; replace the faulty harness, then clear the DTC.�
