A/T System

Advanced Diagnostics - DTC P0344: Camshaft Position (CMP) Sensor Intermittent Interruption (A/T System)






General Description

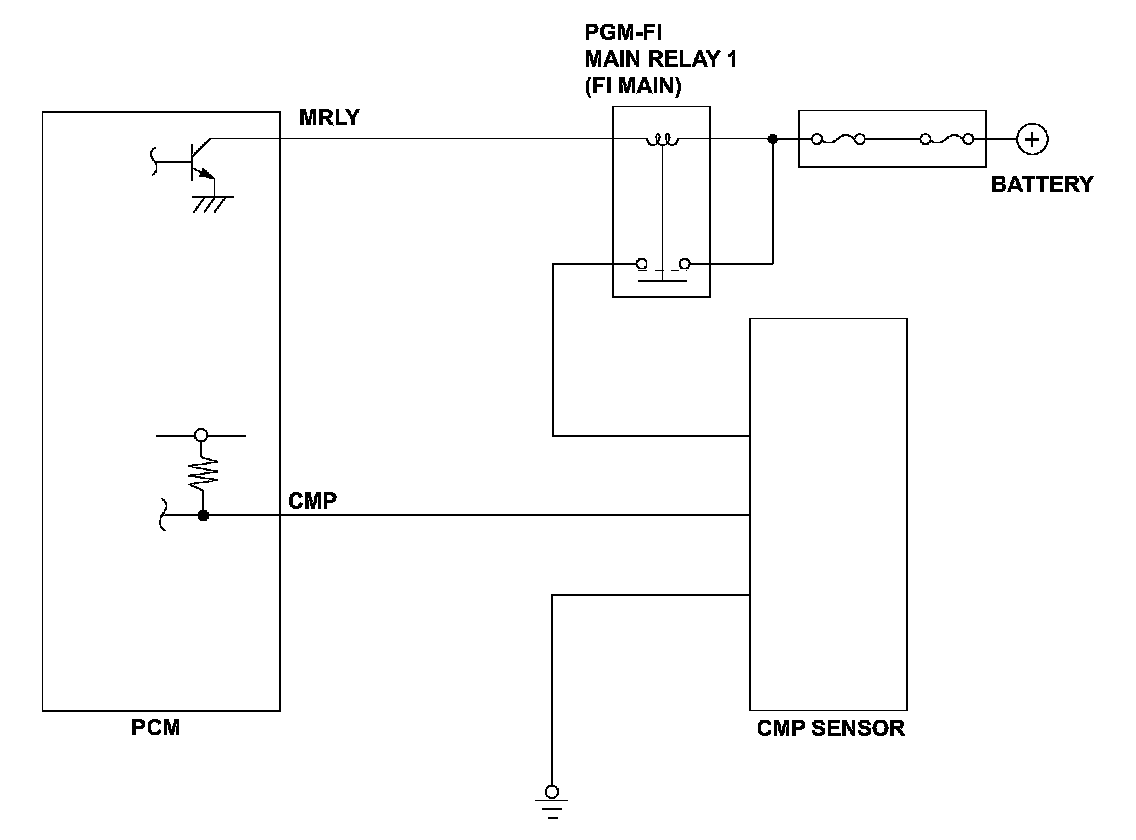

The camshaft position (CMP) sensor consists of a rotor and a semiconductor that detects rotor position. When the engine starts, the rotor turns and the magnetic flux in the semiconductor device changes. The changes of magnetic flux are converted into pulsing signals to the powertrain control module (PCM). The PCM determines the camshaft position according to the signals from the crankshaft position (CKP) sensor and the CMP sensor. If the number of pulsing signals from the CMP sensor during intervals between the CKP standard pulses is other than the proper number, the PCM detects a malfunction and stores a DTC.

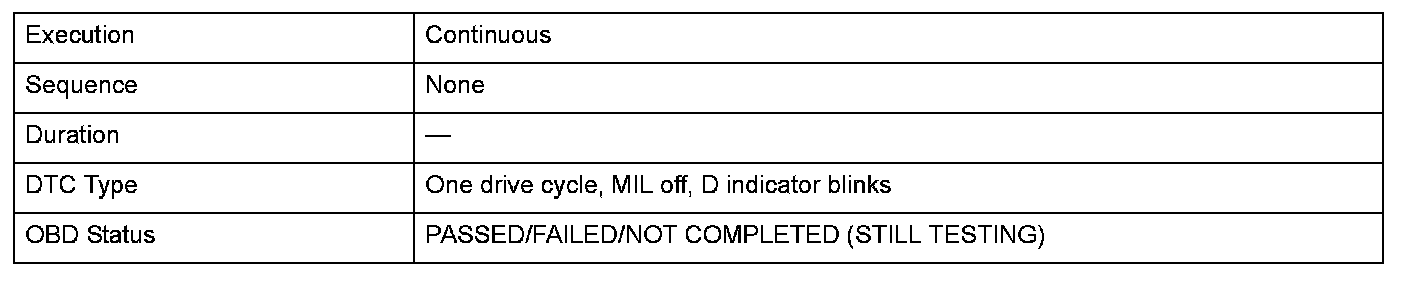

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

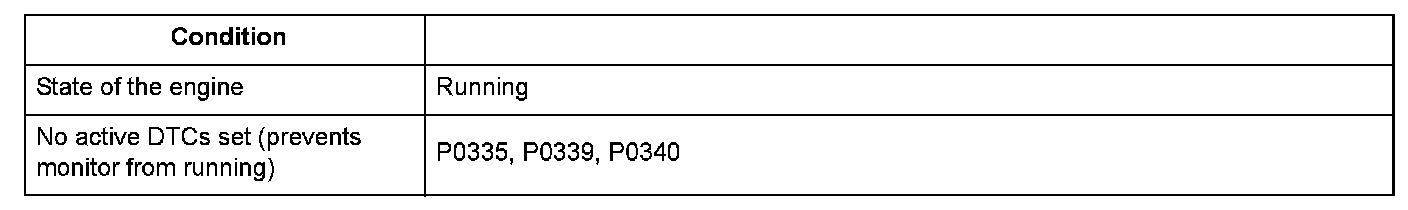

Enable Conditions






Malfunction Threshold
Other than two CMP sensor pulses are detected during intervals between the CKP standard pulses for each crankshaft revolution. This condition occurs at least 30 times.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, the D indicator blinks, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
