A/T System

Advanced Diagnostics - DTC P0389: Crankshaft Position (CKP) Sensor B Intermittent Interruption (A/T System)






General Description

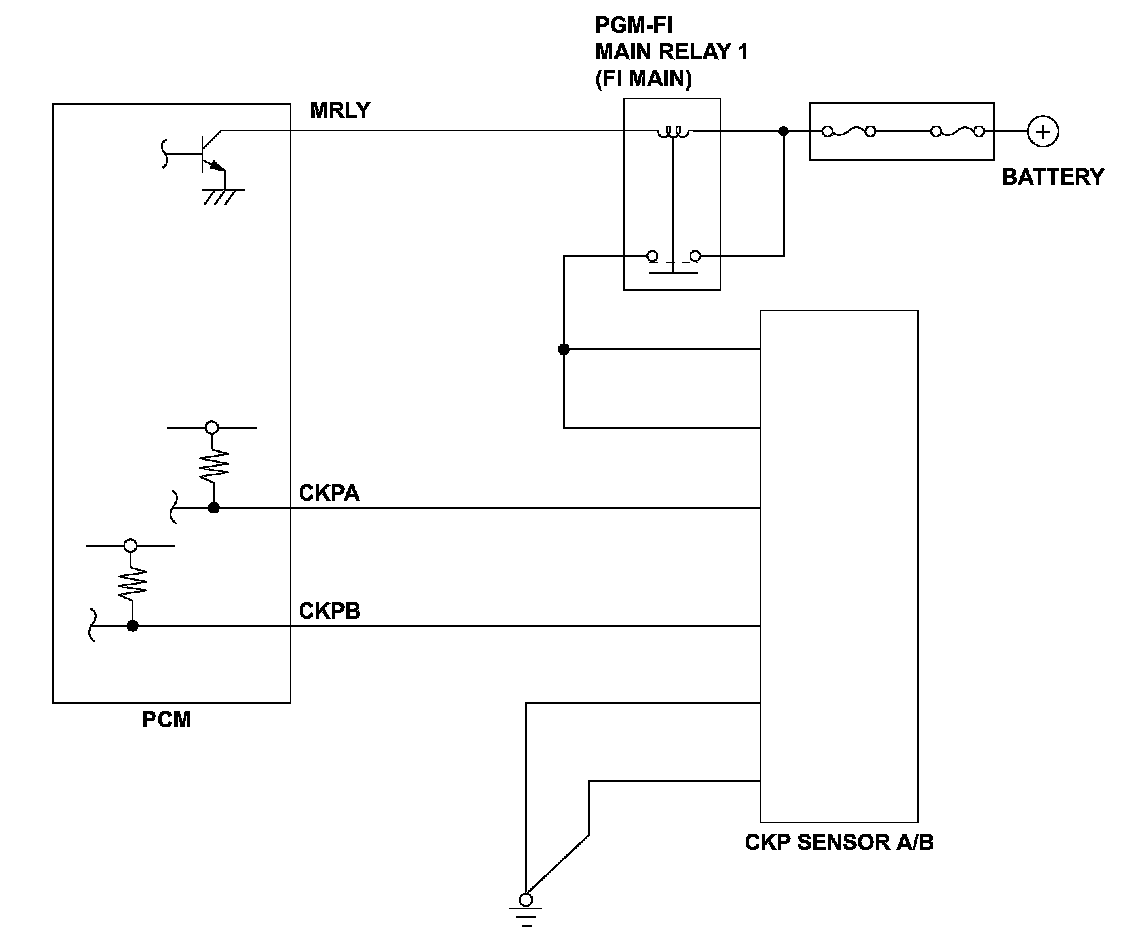

Crankshaft position (CKP) sensor B consists of a rotor and a semiconductor that detects rotor position. When the engine starts, the rotor turns and the magnetic flux in the semiconductor device changes. The changes of magnetic flux are converted into pulsing signals to the powertrain control module (PCM). CKP sensor B detects injection/ignition timing for each cylinder and engine speed. If an abnormal amount of pulsing signals are detected from CKP sensor B, the PCM detects a malfunction and stores a DTC.

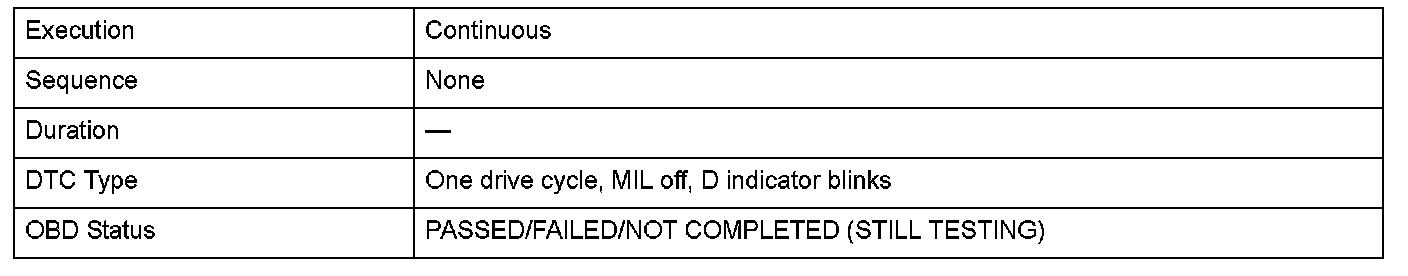

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

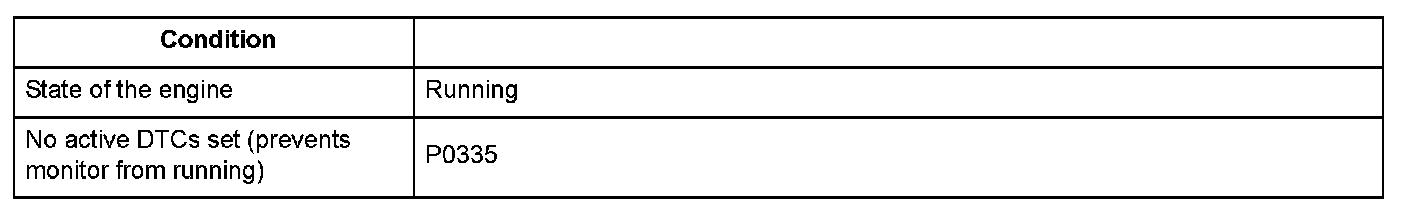

Enable Conditions






Malfunction Threshold
Other than 22 pulses are detected during intervals between reference pulses for each crankshaft revolution. This condition has been detected at least 30 times.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, the D indicator blinks, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
