DTC Troubleshooting

DTC Troubleshooting: P0706 (6)

DTC P0706:

Open in Transmission Range Switch Circuit

NOTE:

- Before you troubleshoot, review General Troubleshooting Information How To Troubleshoot The A/T System.
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

1. Make sure the shift cable adjustment.

2. Turn the ignition switch to ON (II).

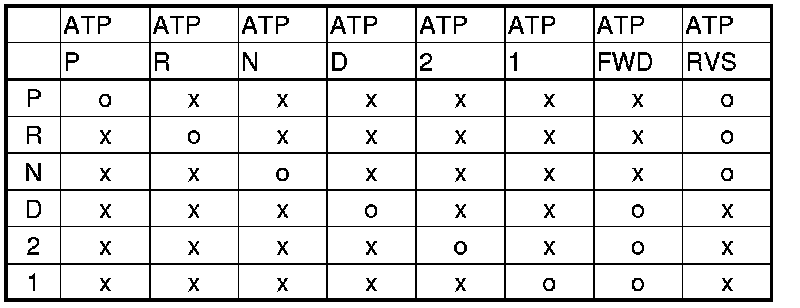

3. Compare the ATPP, ATPR, ATPN, ATPD, ATP2, ATP1, ATPFWD, and ATPRVS inputs with the HDS to the following table, in each shift lever position.









Are the transmission range switch signals OK?

YES -

Intermittent failure, the system is OK at this time.�

NO -

Go to step 4.

4. Compare the ATPP, ATPR, ATPN, ATPD, ATP2, ATP1, ATPFWD, and ATPRVS inputs with the HDS to the table in step 3.

Do all signals remain OFF?

YES -

Go to step 12.

NO -

Record the abnormal circuit, then go to step 5.

5. Turn the ignition switch to LOCK (0).

6. Disconnect the transmission range switch connector.

7. Connect the transmission range switch connector terminal which did not indicate ON in step 4 to body ground with a jumper wire.

8. Turn the ignition switch to ON (II).

9. Check the transmission range switch signal that did not indicate ON with the HDS.

Does the transmission range switch signal indicate ON?

YES -

Replace the transmission range switch Service and Repair.�

NO -

Go to step 10.

10. Turn the ignition switch to LOCK (0).

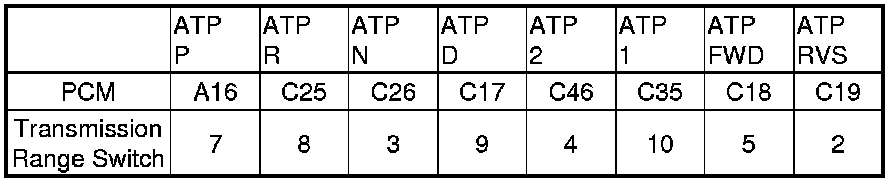

11. Check for continuity between the transmission range switch connector terminal and the PCM terminal of the input which indicated OFF. Refer to the following table.





Is there continuity?

YES -

Replace the PCM Service and Repair.�

NO -

Repair open in the wire between the corresponding transmission range switch connector terminal and the PCM.�

12. Turn the ignition switch to LOCK (0).

13. Disconnect the transmission range switch connector.

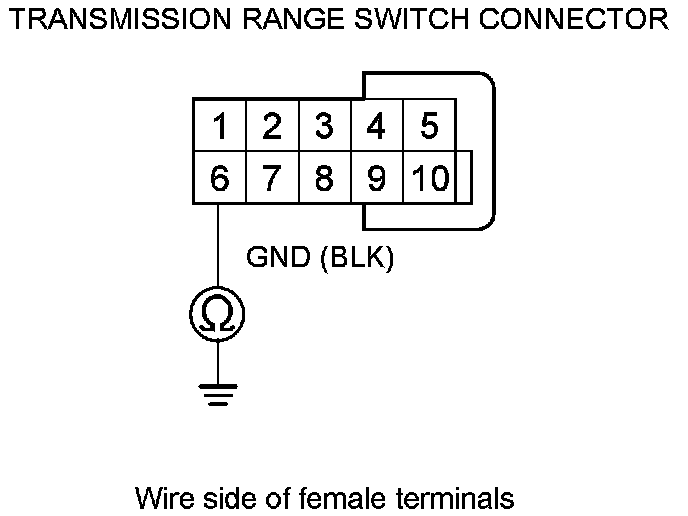

14. Check for continuity between transmission range switch connector terminal No. 6 and body ground.





Is there continuity?

YES -

Replace the transmission range switch Service and Repair.�

NO -

Repair open in the wire between the transmission range switch and body ground (G101), or repair poor body ground (G101).�

- For 2007 model (G101)
- For 2008 - 2010 models with J35A6 engine (G101)
- For 2008 - 2010 models with J35A7 engine (G101)
