Antenna Amplifier: Service and Repair

AM/FM Antenna Amplifier Replacement

1. Remove the right rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

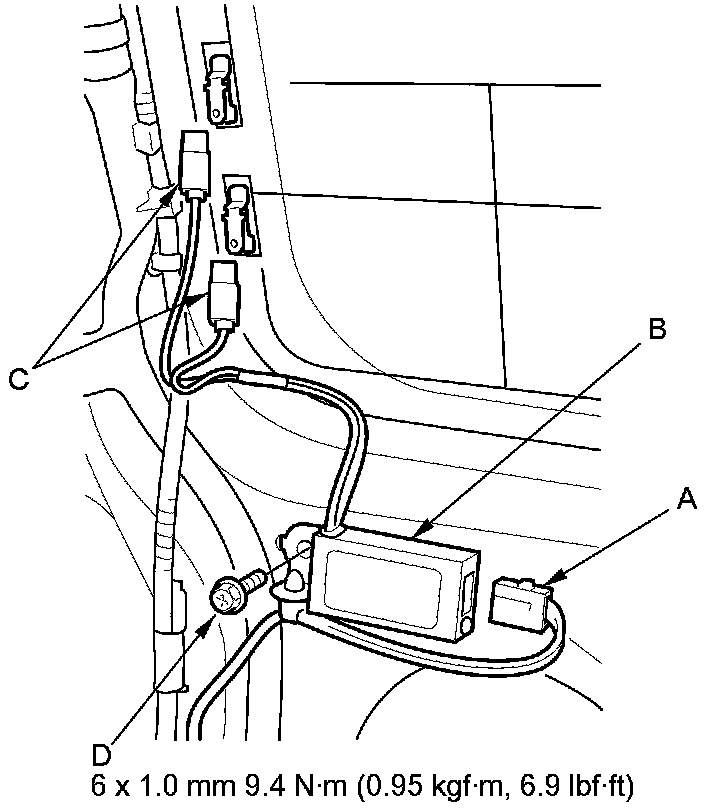

2. Disconnect the 3P connector (A) from the AM/FM antenna amplifier (B).





3. Disconnect connectors (C), then remove the bolt (D) and AM/FM antenna amplifier.

4. Install the amplifier in the reverse order of removal.
