Cellular Phone: Description and Operation

HandsFreeLink System Description

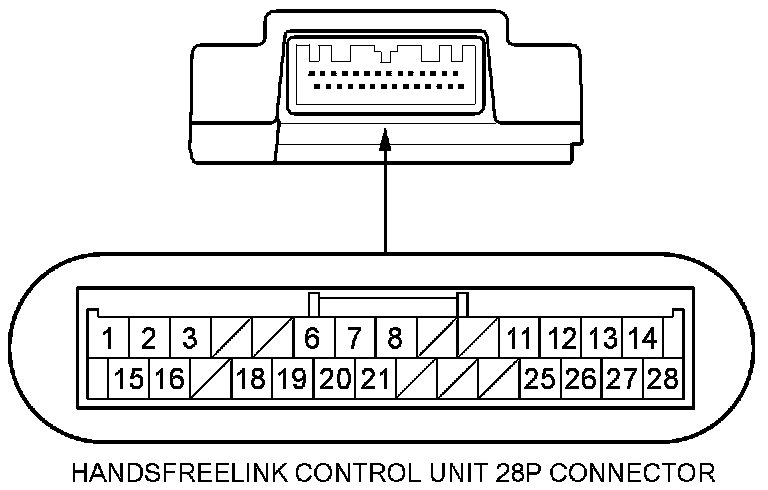

HandsFreeLink Control Unit Inputs and Outputs

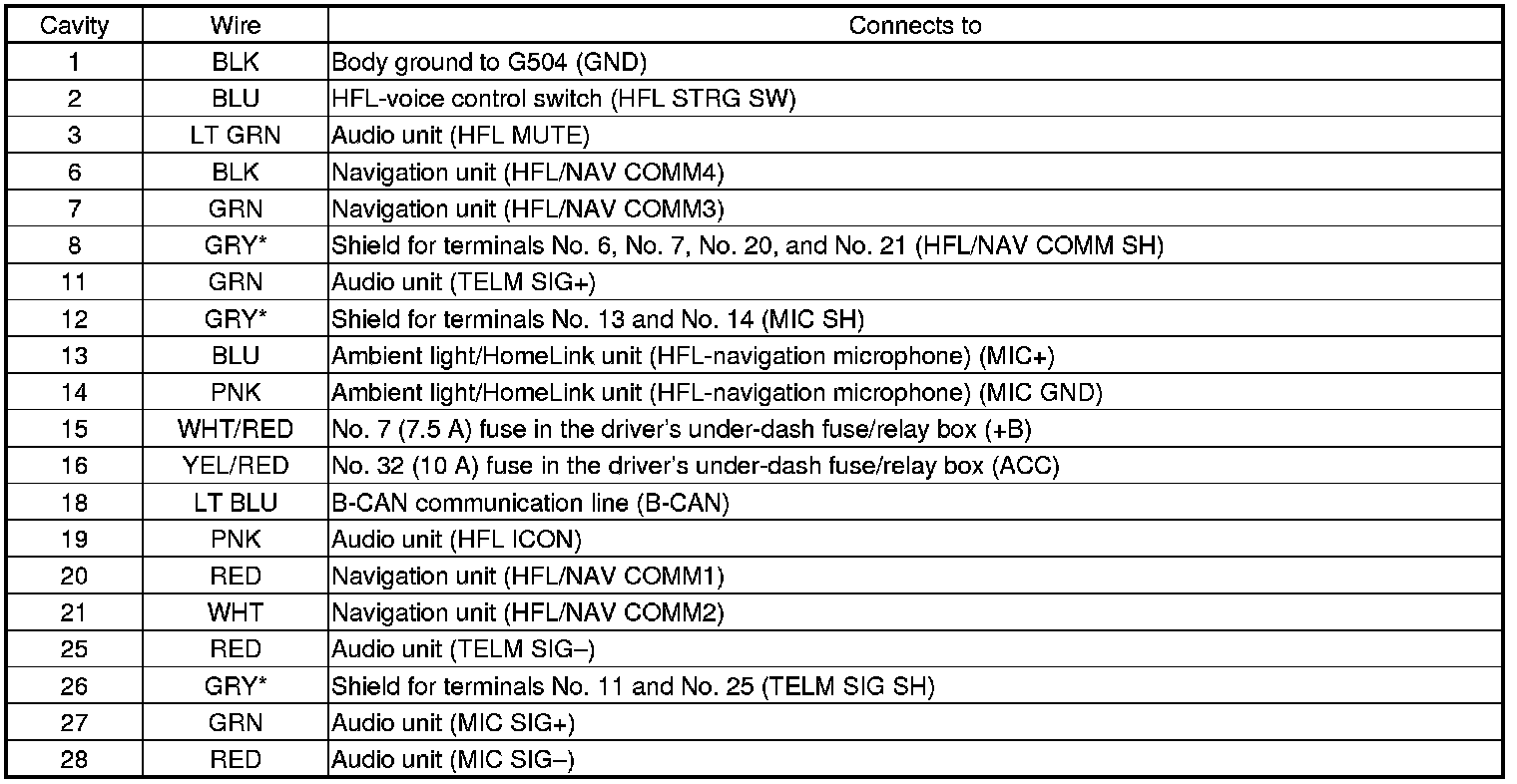

When replacing a HandsFreeLink control unit connector, match the wires to the cavities listed in the following table.
