HFL Switch Test

HFL Switch Test

1. Remove the HFL-voice control switch HFL Switch Removal/Installation.

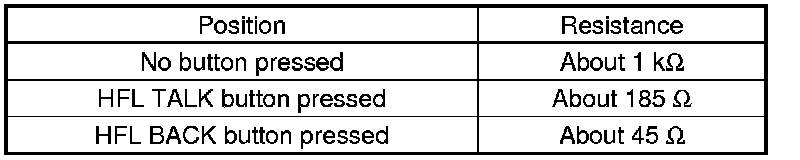

2. Measure the resistance between terminals No. 2 and No. 3 in each switch position according to the table.

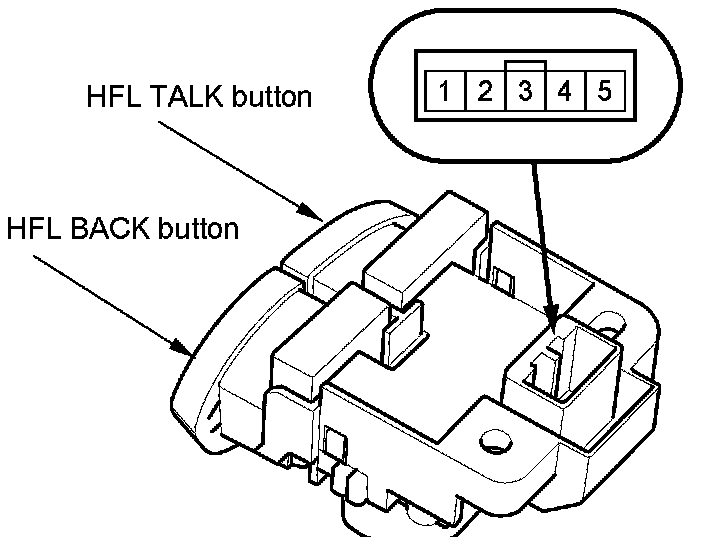

HFL Switch









3. If the resistance is not as specified, replace the switch.
