HandsFreeLink Control Unit Input Test

HandsFreeLink Control Unit Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

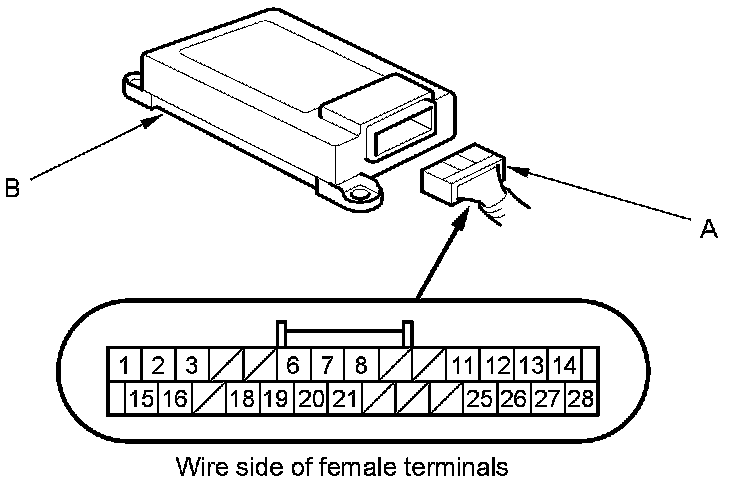

1. Disconnect the 28P connector (A) from the HandsFreeLink control unit (B) Service and Repair.





2. Inspect the connector and socket terminals for a good pinfit to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

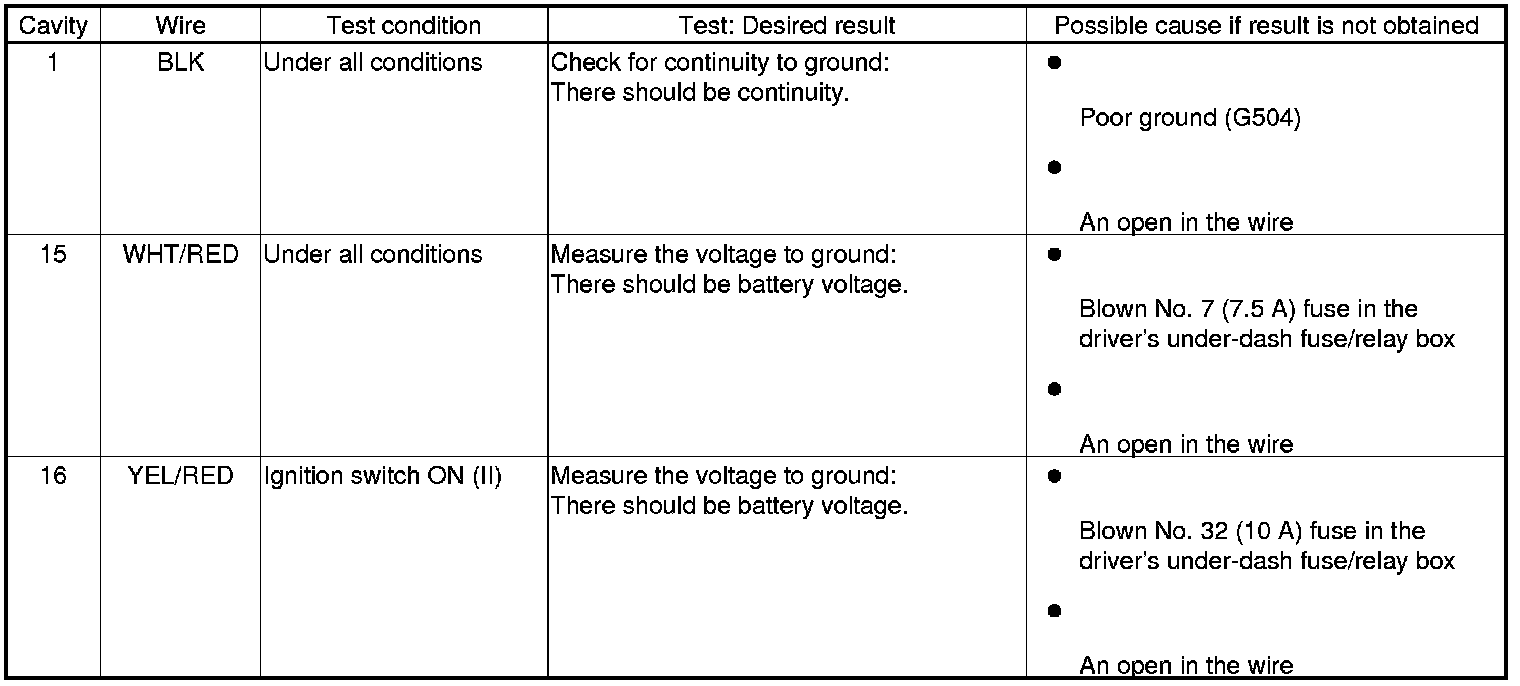

3. Reconnect the connector, and make these input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 4.

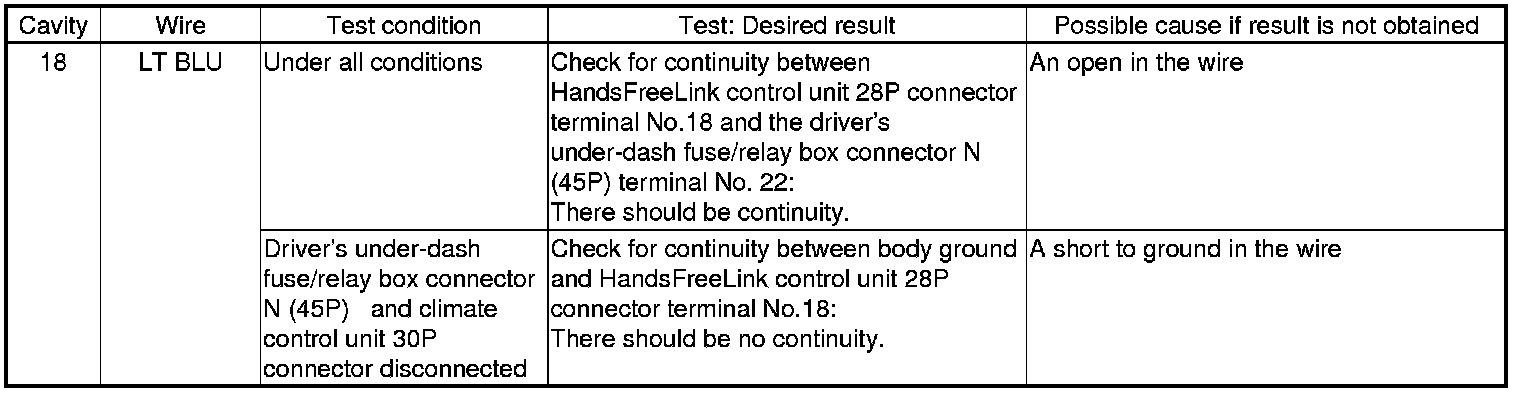

4. Disconnect the 28P connector again, and make this input test at the connector.

- If the test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, the HandsFreeLink control unit is faulty, replace it.
