Rear Vision Camera: Service and Repair

Rearview Camera Removal/Installation

'08-10 models

1. Remove the tailgate lower trim panel .

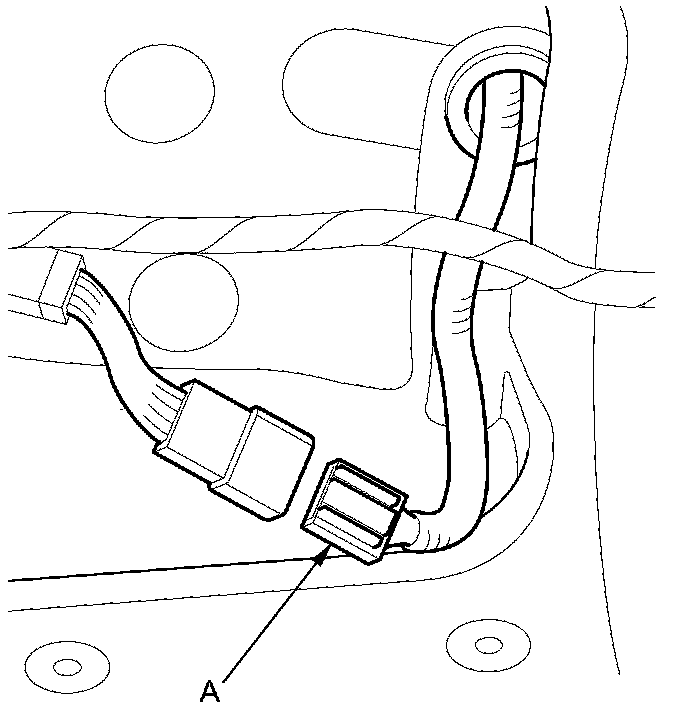

2. Disconnect the rearview camera 6P connector (A).

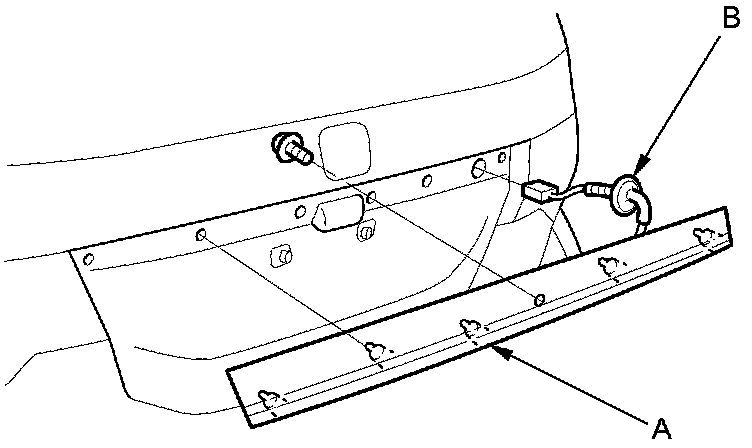

3. Remove the rear license trim (A), then remove the grommet (B) from the tailgate and push the connector through the hole in the tailgate.

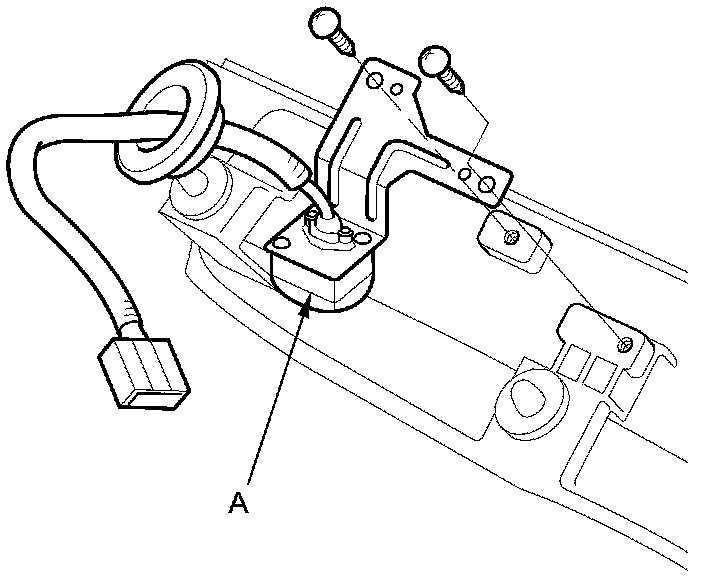

4. From the rear license trim, remove the screws and rearview camera (A).





5. Install the rearview camera in the reverse order of removal.
