Auxiliary Jack Assembly Replacement

Auxiliary Jack Assembly Replacement

'08-10 models

1. Remove the dashboard center lower cover Dashboard Center Lower Cover Removal/Installation.

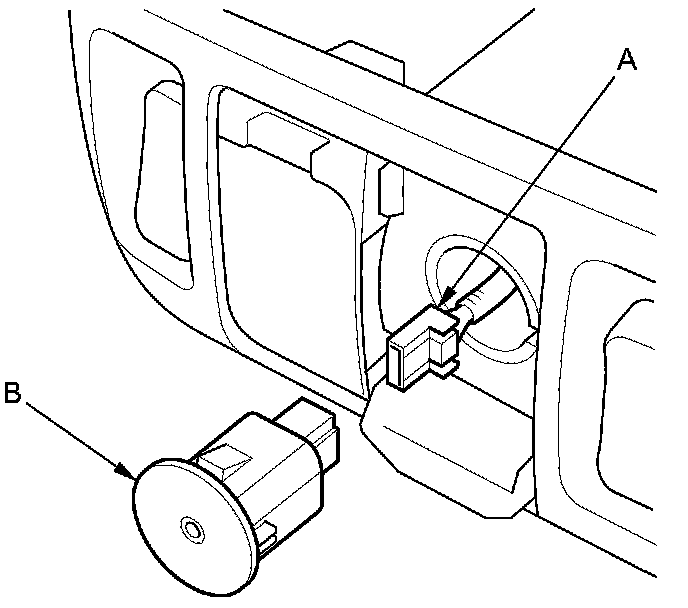

2. Disconnect the 5P connector (A) and pull out the auxiliary jack assembly (B).





3. Install the auxiliary jack assembly in the reverse order of removal.
