Auxiliary Jack Assembly Replacement (With Rear Entertainment System)

Auxiliary Jack Assembly Replacement

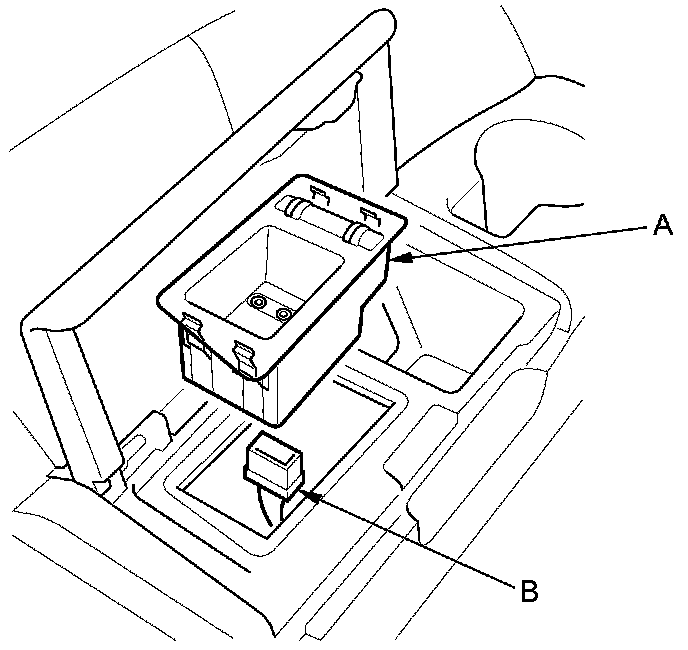

1. Carefully pry out the auxiliary jack assembly (A).





2. Disconnect the 14P connector (B), and remove the auxiliary jack assembly.

3. Install the auxiliary jack assembly in the reverse order of removal.
