Entertainment Systems: Description and Operation
Rear Entertainment System Description
The rear entertainment system is composed of a special audio unit, a DVD player unit, a rear controller and screen, a wireless headphones, a wireless remote control, and an auxiliary jack assembly.
System Components
Audio Unit
- Provides rear system power
- Provides control for the rear functions
- Allows the rear display to show information about the rear system status
- Provides a method to stop the rear passenger's from having control of the rear system
DVD Player Unit
- Offers simple operation (control in the audio unit)
- Automatically turns off when battery voltage drops below 12 volts
Rear Screen
- Has a flip down 9" display
- Displays information on the LCD
- Display does not work when pushed beyond the detent
- Provides output for infrared (IR) headphones
Wireless Headphone
- Has automatic ON/OFF control
- Has volume control
- Works only in the second and third row seats, not outside the vehicle or in the front seats
Wireless Remote Control
Allows remote operation of the audio and DVD player units.
Auxiliary Jack Assembly
- Allows input from standard video game and video equipment using RCA connectors
- Provides two headphone connectors and separate volume controls
Audio Remote Switch
Allows operation of the audio and DVD player units at the steering wheel.
Voice Control Switch
Allows operation of the audio and DVD player units through the navigation system.
Navigation Display
Allows operation of the audio and DVD player units through the navigation system.
Operating Method
Audio Unit

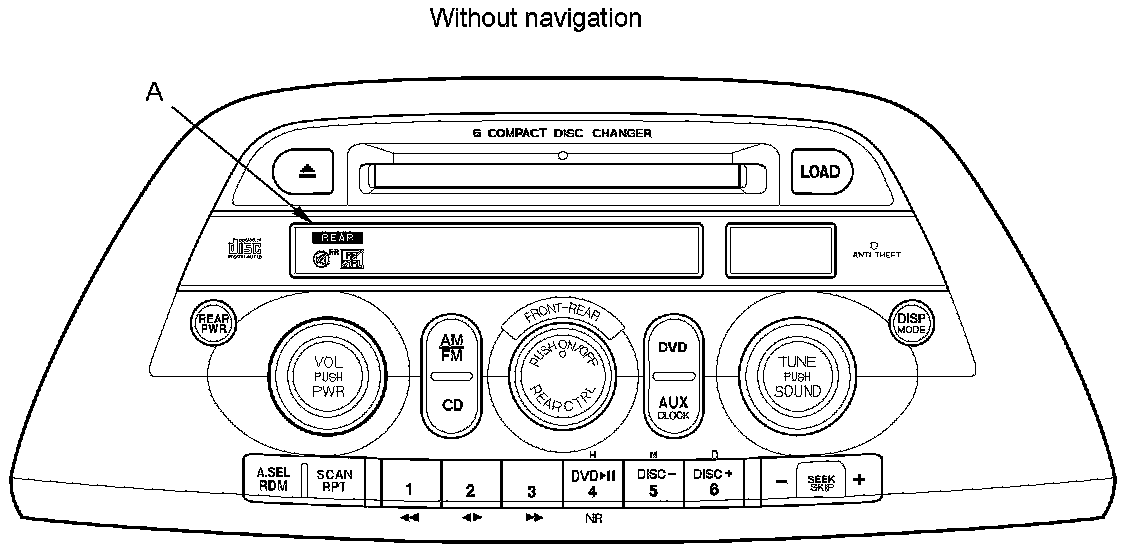

1. Turn the rear entertainment system ON.

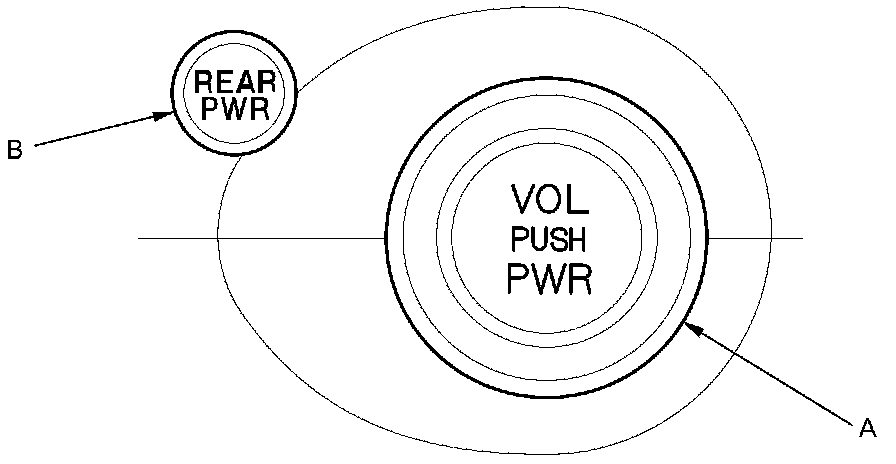

- After the main power switch VOL PUSH PWR (A) is turned ON, push REAR PWR switch (B) to turn the rear system ON. To turn the rear system OFF, push REAR PWR again, and to turn the whole system OFF, push VOL PUSH PWR.

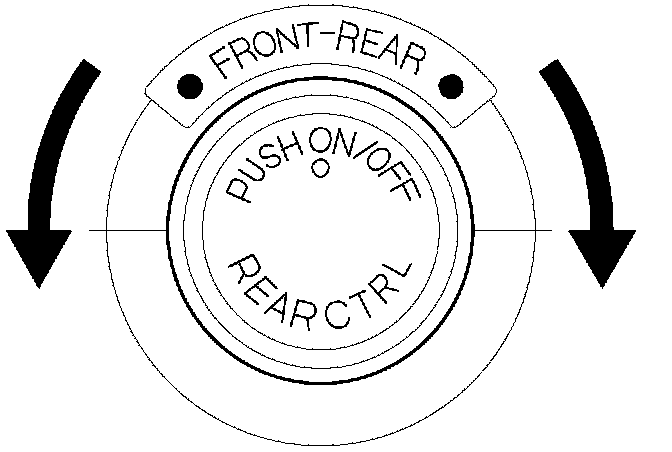

1. Using the selector knob.
- Turn left to select the front controls (Audio).
- Turn right to select the rear controls (After rear operation is finished, selector automatically returns to the front control in 10 seconds).

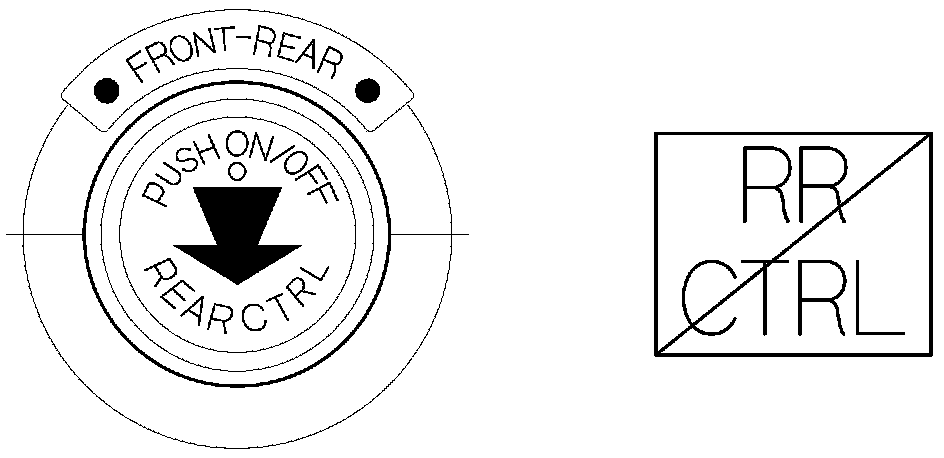

1. Rear Control Enable/Disable.
- By pushing the selector knob, the driver can prevent the rear passengers from operating the system. Each push of the selector knob cycles the switch between ON-OFF (Rear Control Enabled/Rear Control Disabled). When rear operation is disabled, the LCD on the audio unit displays RR CONT OFF.

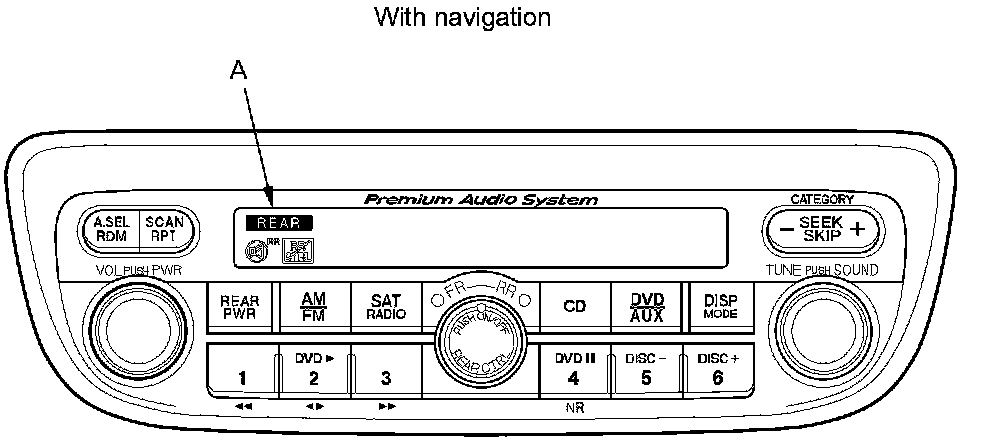

1. Viewing the display.
- The display (A) indicates the status of the front and rear systems.

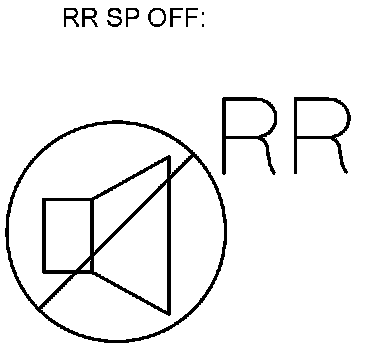

1. Rear speaker automatic OFF Function.
- By turning the rear speaker OFF you can reduce the interference between the front source and the rear source (Headphone). The speaker turns ON/OFF automatically when the front and rear have different sources selected. When the rear speaker is in the OFF mode, the LCD display on the audio unit displays RR SP OFF.

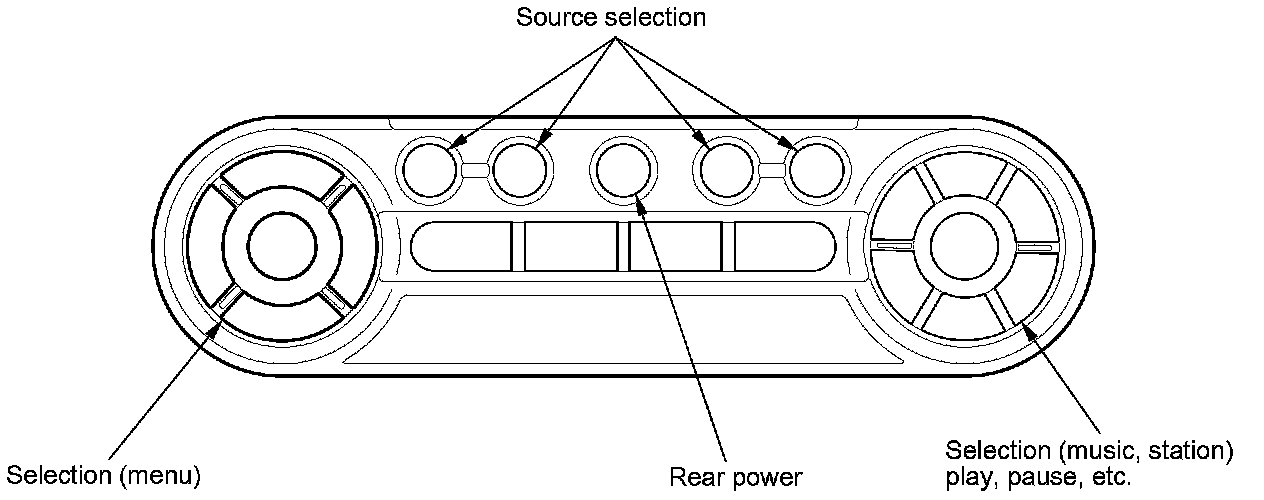

Wireless Remote Control
Remote control switch use and function.
- With Rear Power ON and rear control enabled, the rear passengers can control the functions, except volume, with the remote.
- Rear passengers can control the functions, unless the rear control has been turned off by the front user.
DVD Player Unit Connector for Inputs and Outputs
When replacing a DVD player unit connector, match the wires to the cavities listed in the following table.

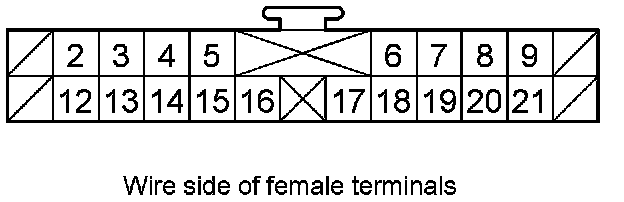

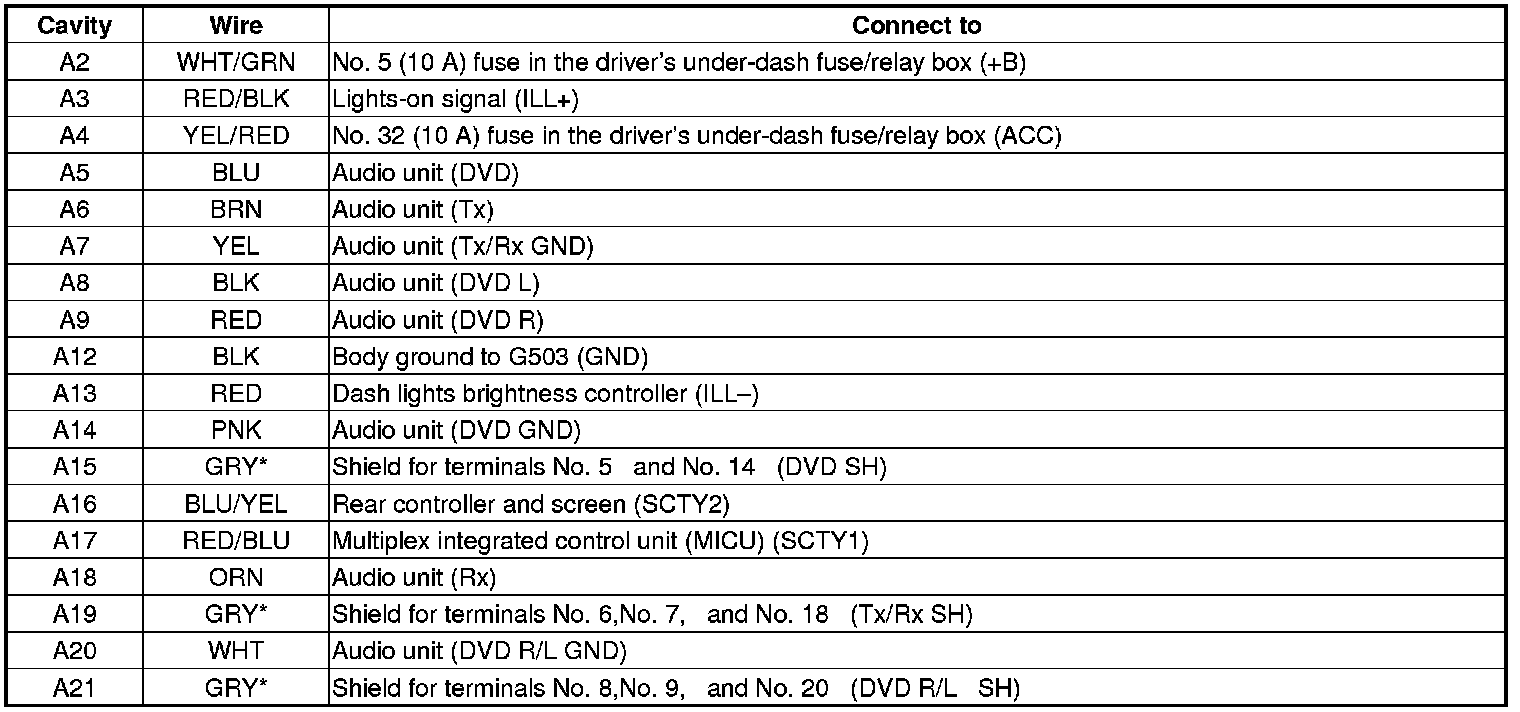

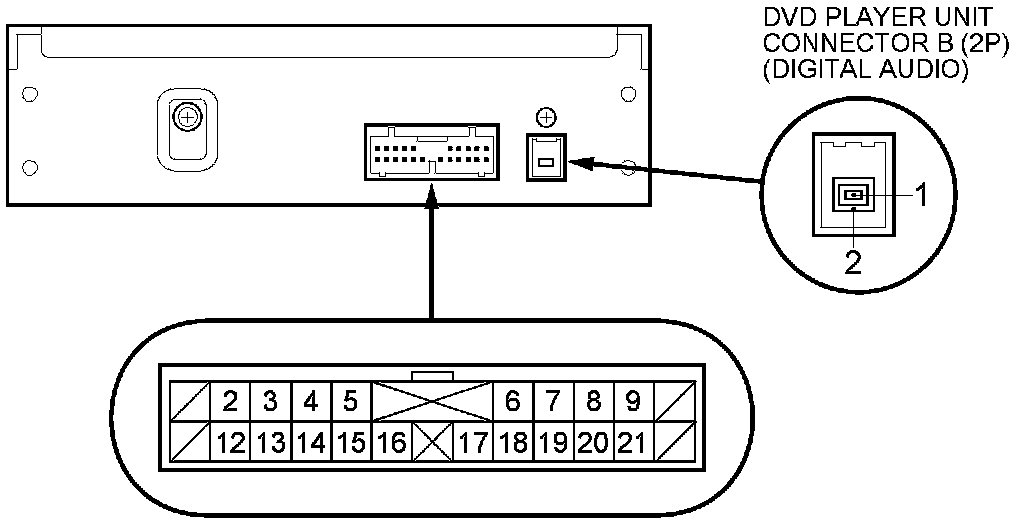

DVD PLAYER UNIT CONNECTOR A (22P)

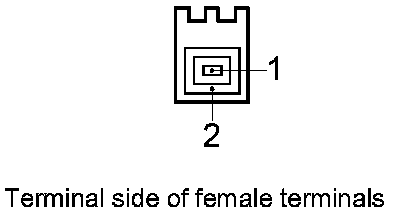

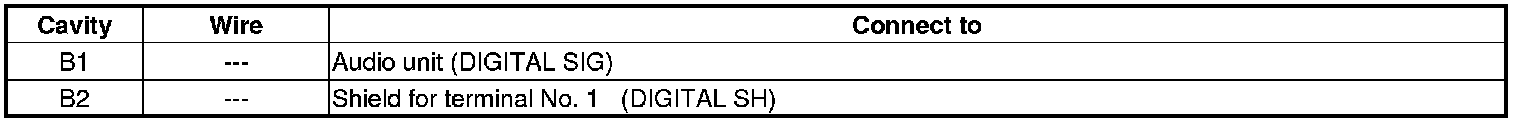

DVD PLAYER UNIT CONNECTOR B (2P) (DIGITAL AUDIO)
Rear Controller and Screen Connector for Inputs and Outputs
When replacing a rear controller and screen connector, match the wires to the cavities listed in the following table.

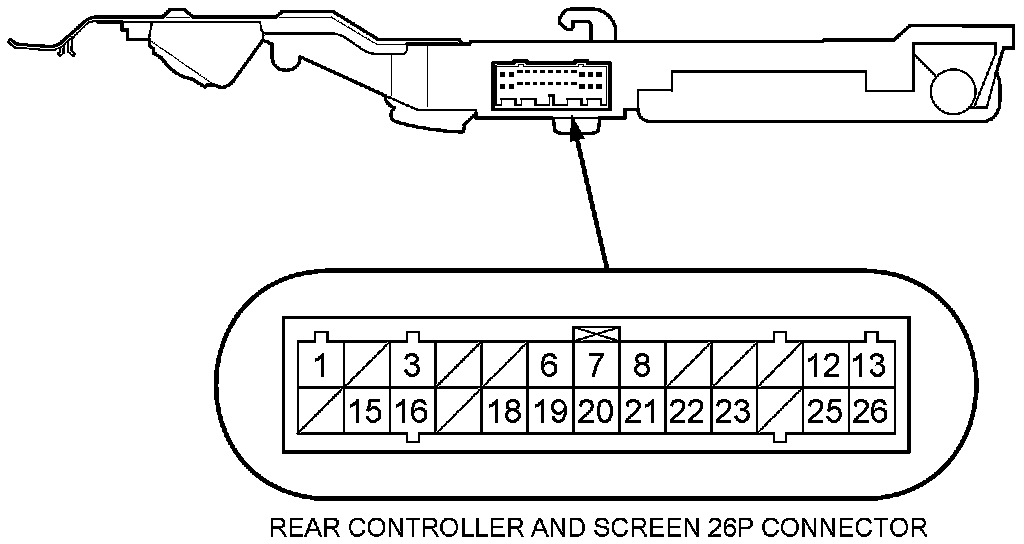

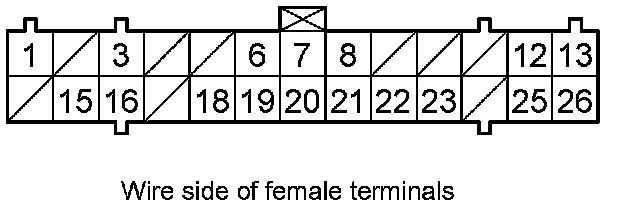

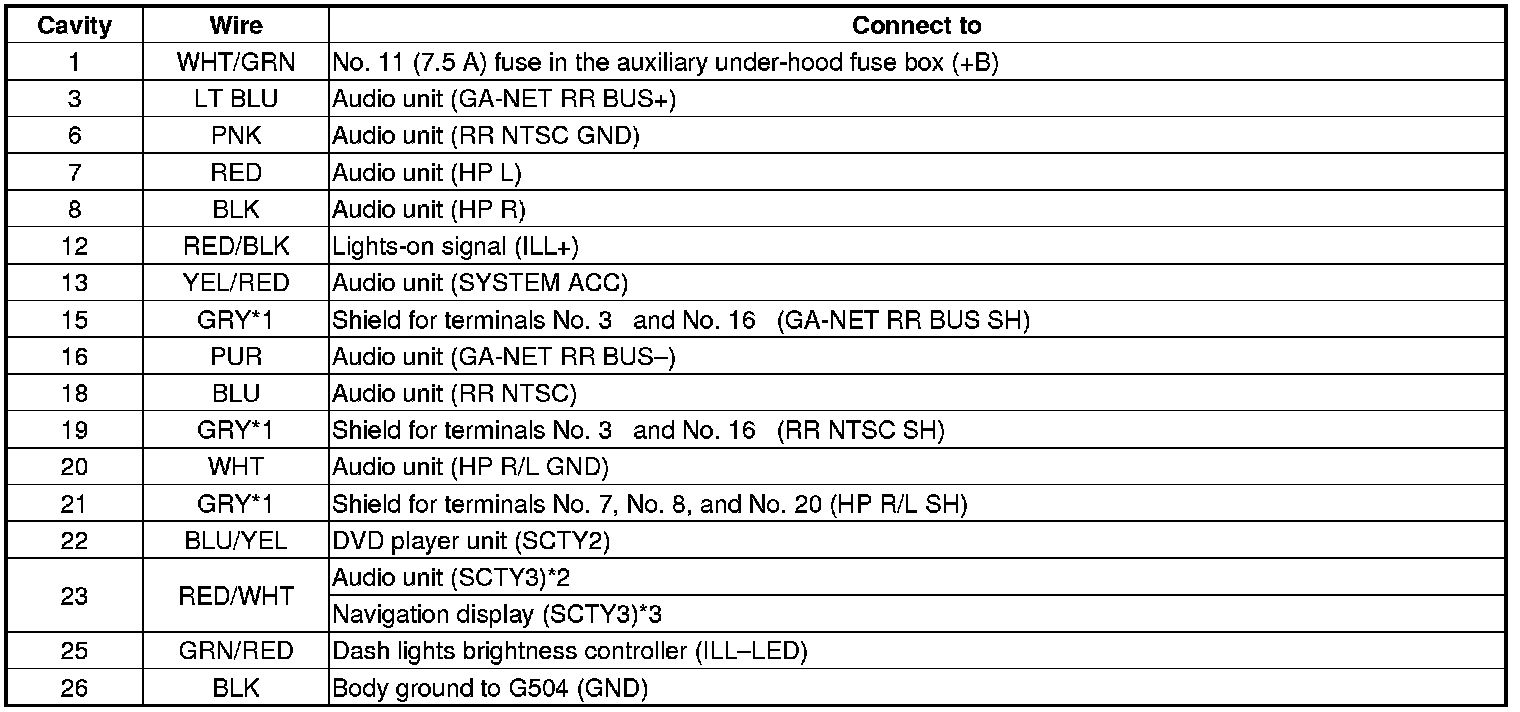

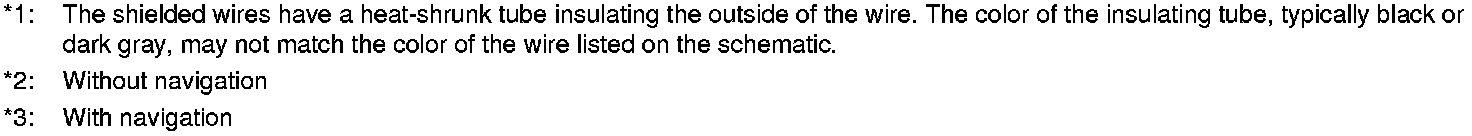

REAR CONTROLLER AND SCREEN 26P CONNECTOR
Auxiliary Jack Assembly Connector for Inputs and Outputs
When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in the following table.

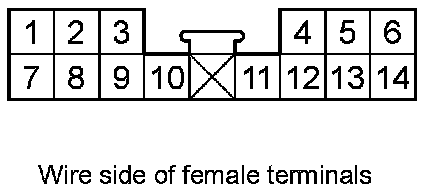

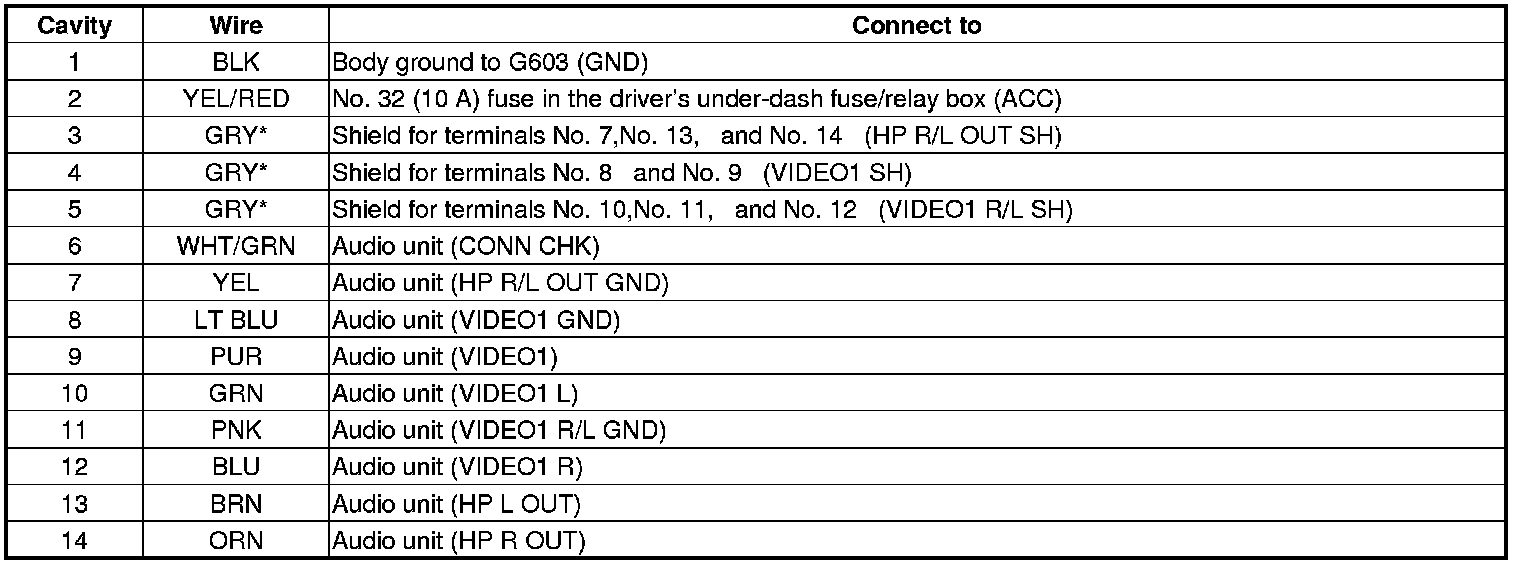

AUXILIARY JACK ASSEMBLY 14P CONNECTOR
