DVD Player Unit Illumination Does Not Come on/Does Not Dim

Rear Entertainment System Symptom Troubleshooting - DVD player unit illumination does not come on/does not dim

DVD player unit illumination does not come on/does not dim

NOTE:

- Check the vehicle battery condition first Testing and Inspection.
- Check the connector for poor connections or loose terminals.

1. Turn the ignition switch to ON (II).

2. Turn the combination light switch on and off.

Does the DVD player unit illumination dim with the combination light switch in the on position?

YES -

Operation is normal at this time.�

NO -

Go to step 3.

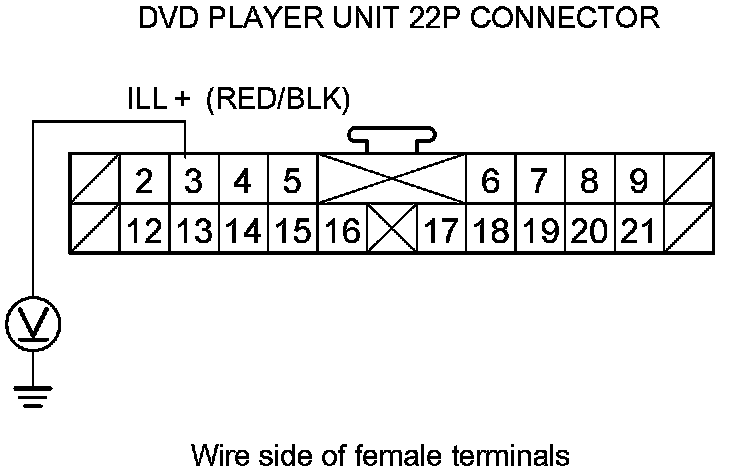

3. Measure the voltage between DVD player unit 22P connector terminal No. 3 and body ground. Operate the combination light switch on and off to see if the voltage changes.





Is there battery voltage with the combination light switch in the on position?

YES -

Replace the DVD player unit Service and Repair.�

NO -

Go to step 4.

4. Check the No. 7 (7.5 A) fuse in the passenger's under-dash fuse/relay box.

Is the fuse OK?

YES -

Repair an open in the wire between the No. 7 (7.5 A) fuse in the passenger's under-dash fuse/relay box and the DVD player unit.�

NO -

Replace the fuse, and recheck.�
