Garage Door Opener Transmitter: Testing and Inspection

HomeLink Remote Control System Test

NOTE:

- Explain to the customer that garage door remote transmitters come in two types: fixed code and rolling code. Each type has its own programming method. If the customer has concerns about the HomeLink unit, have the customer contact the HomeLink assistance desk at 800-355-3515.
- If the HomeLink will not open the customer's garage, do this:

If the HomeLink remote control system will not open the customer's garage, do this:

1. Press any of the buttons on the HomeLink unit.

- If the red indicator comes on, go to step 3.
- If the red indicator does not come on, go to step 2.

2. Measure the voltage between the roof console 10P connector terminals No. 6 (+) and No. 5 (-). There should be battery voltage.

- If the voltage is not as specified, check for these problems:
- A blown No. 6 (7.5 A) fuse in the driver's under-dash fuse/relay box.
- A faulty driver's under-dash fuse/relay box.
- An open in the WHT/BLU wire between the driver's under-dash fuse/relay box and the roof console.
- An open in the BLK wire between the roof console and G601.
- If the voltage is as specified, go to step 3.

3. Make sure the commercially available Genie remote transmitter (test remote) has fresh batteries.

NOTE: The Genie transmitter can be either the fixed code type or the rolling code type.

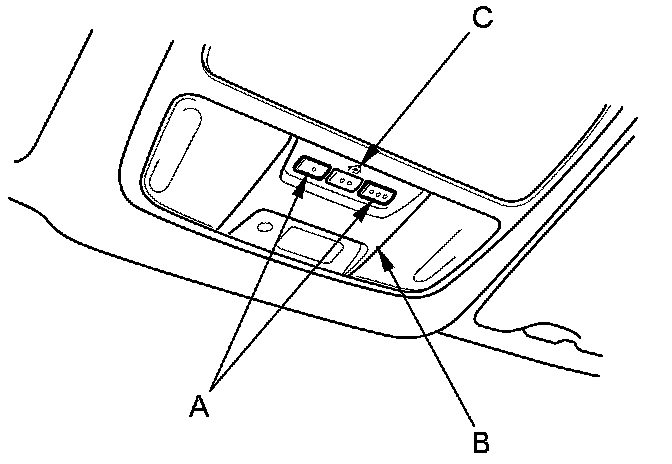

4. Clear any previously learned codes by pressing and holding the two outside buttons (A) on the HomeLink unit (B) until the red indicator (C) on the unit starts blinking (about 20 seconds), then release the buttons.

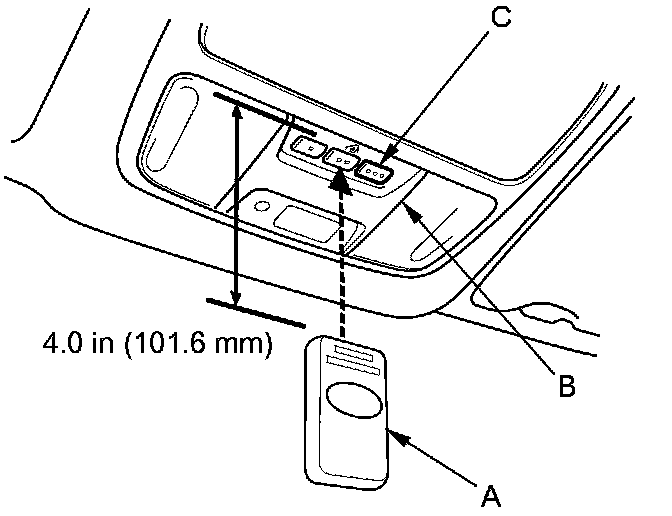

5. Point the test remote transmitter (A) straight up exactly 4.0 in (101.6 mm) away from the HomeLink unit (B).





6. Press and hold the button on the test remote transmitter and one of the buttons (C) on the HomeLink unit at the same time.

7. Wait about 20 seconds while watching the red indicator on the HomeLink unit.

- If the red indicator starts blinking slowly and then blinks faster, the unit is OK. Release the buttons, then clear the learned code (see step 4).
- If the red indicator does not blink, replace the roof console Front Individual Map Light Test/Replacement (With Moonroof).
