Navigation System Forced Starting of Display (With Navigation)

Navigation System Forced Starting of Display

Special Tools Required

- SCS Service Connector 07PAZ-0010100

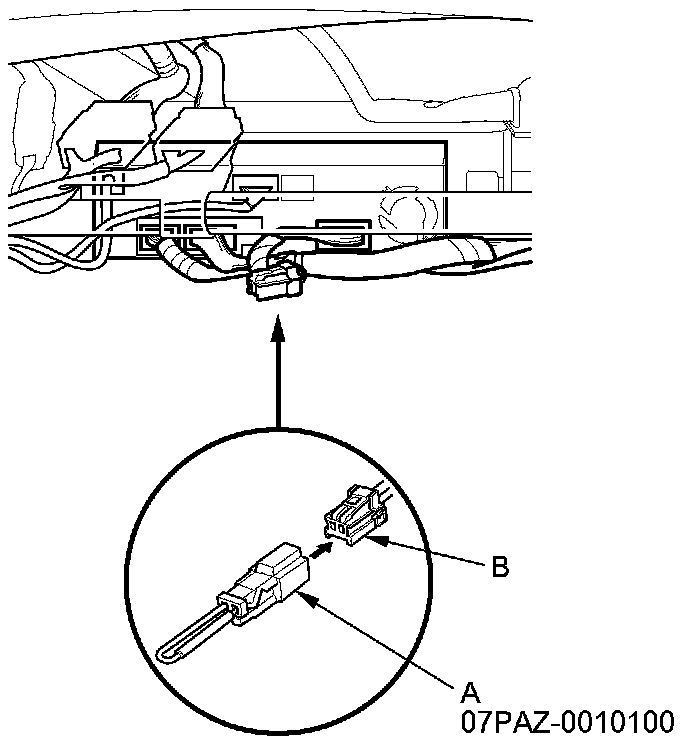

1. Connect the SCS service connector (A) to the navigation service check connector (B) located behind the navigation unit.





2. Turn the ignition switch to ON (II).

3. Check that the system starts up and then changes to the Navi System Link screen.

NOTE: If the system fails to display the Navi System Link screen, refer to no picture is displayed No Picture Is Displayed.
