Navigation System Voice Control Switch Test (With Navigation)




Voice Control Switch Test

1. Remove the voice control switch Voice Control Switch Removal/Installation.

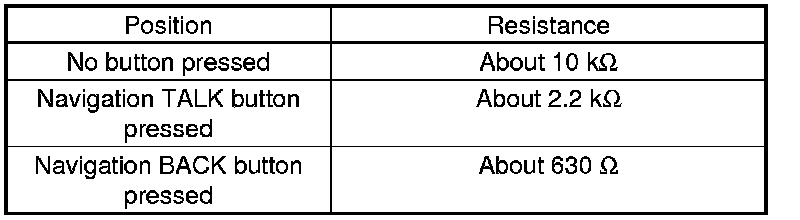

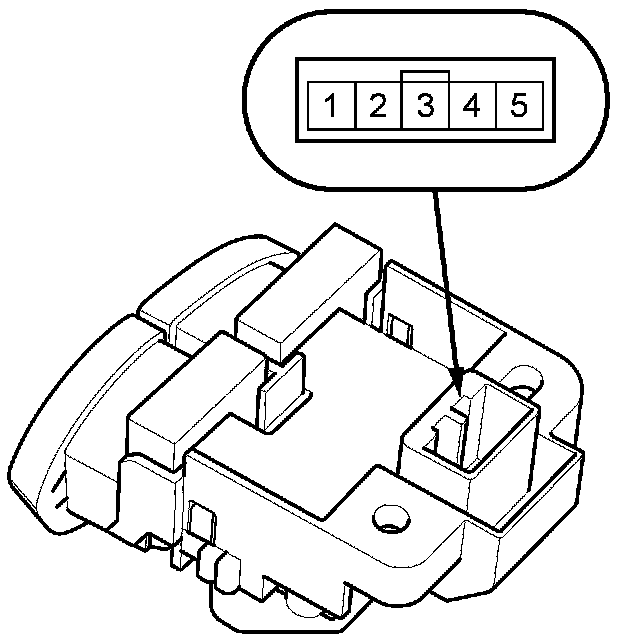

2. Measure the resistance between terminals No. 1 and No. 2 in each switch position according to the table.









3. If the resistance is not as specified, replace the switch.
