CDs Cannot Be Inserted and/or Ejected From the CD Changer

Navigation System Symptom Troubleshooting - CDs cannot be inserted and/or ejected from the CD changer

CDs cannot be inserted and/or ejected from the CD changer

NOTE: If the navigation screen tilts up and down normally, refer to the audio system symptom troubleshooting for a possible stuck or jammed disc in the audio disc changer.

1. Press the OPEN/CLOSE button to open the navigation display.

2. Remove the navigation display.

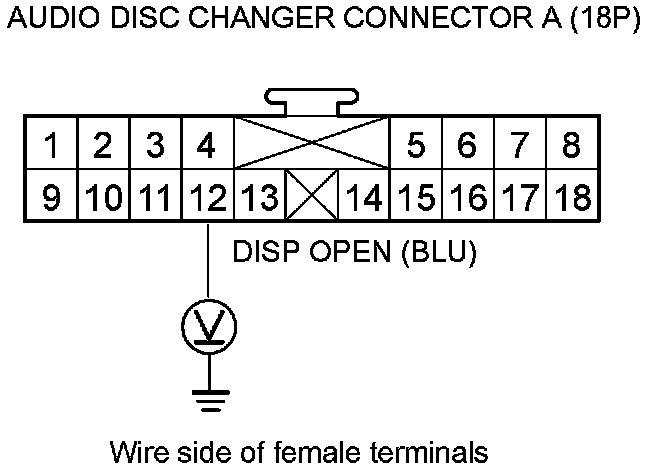

3. Measure the voltage between audio disc changer connector A (18P) terminal No. 12 and body ground.





Is there battery voltage?

YES -

Go to step 4.

NO -

Check the connections at the audio disc changer. If OK, replace the audio disc changer.�

4. Disconnect audio disc changer connector A (18P) and navigation display connector B (10P).

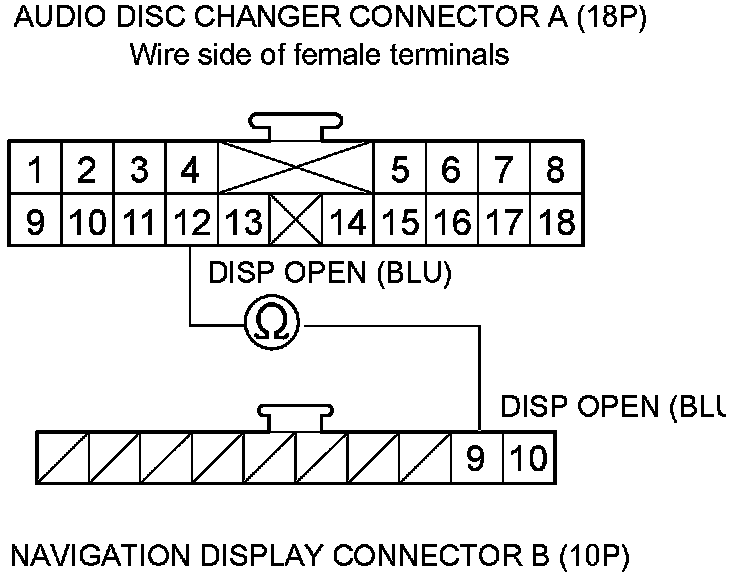

5. Check for continuity between audio disc changer connector A (18P) terminal No. 12 and navigation display connector B (10P) terminal No. 9.





Is there continuity?

YES -

Substitute a known-good navigation display. If the problem is repaired, replace the navigation display.�

NO -

Repair an open in the wire between the audio disc changer and the navigation display.�
