Pedal Positioning System: Service and Repair

Power Adjustable Pedals Replacement

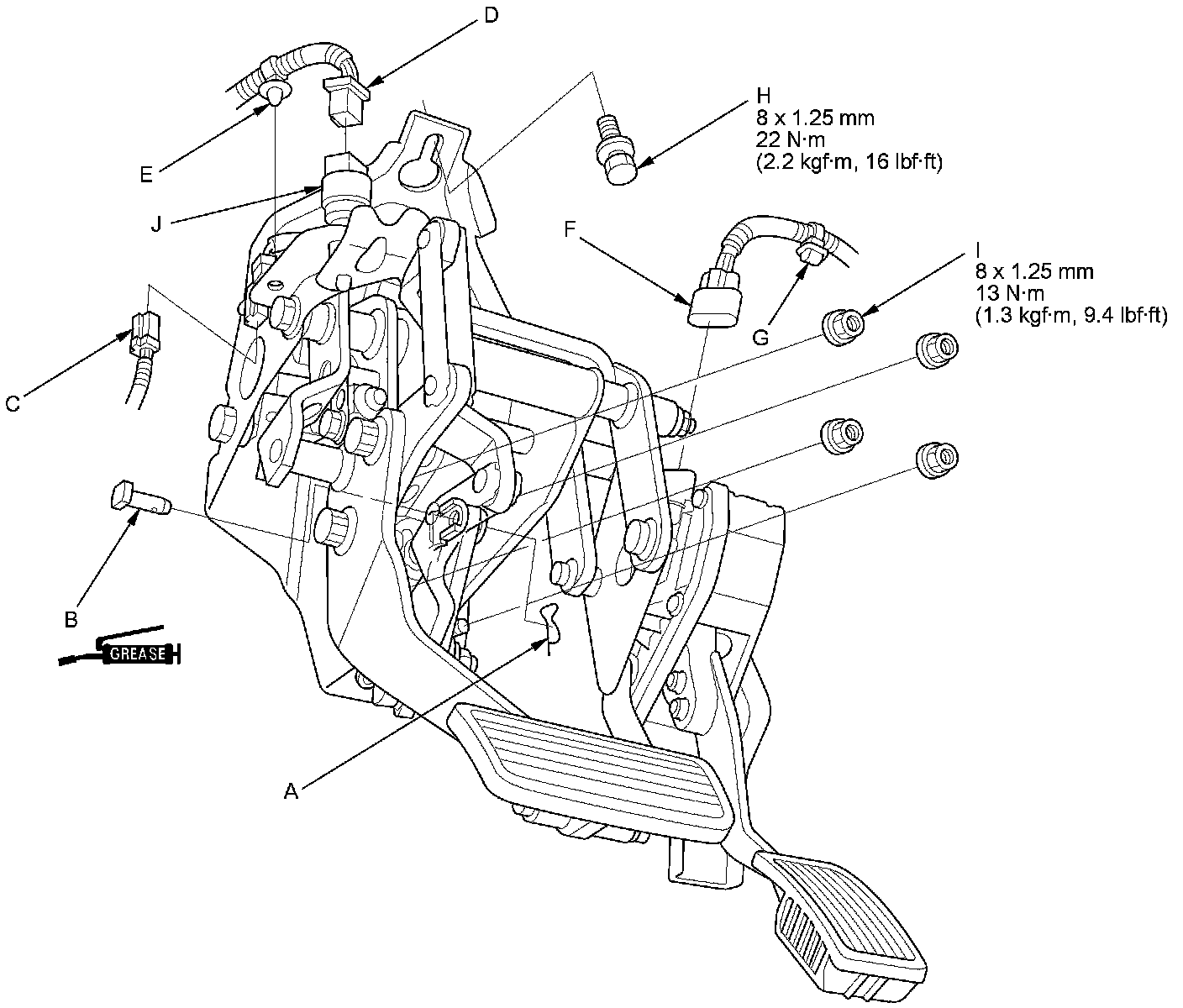

1. Remove the lock pin (A) and the clevis pin (B).





2. Disconnect accelerator/brake pedal adjuster motor connector (C).

3. Disconnect the brake pedal position switch connector (D), and remove the clip (E).

4. Disconnect the accelerator pedal position (APP) sensor 6P connector (F), and remove the clip (G).

5. Remove the power adjustable pedals bracket mounting bolt (H) and nuts (I).

6. Remove the adjustable pedals assembly.

7. Remove the brake pedal position switch (J) by turning it 45° counterclockwise.

8. Install the adjustable pedals assembly in the reverse order of removal.

9. Adjust the brake pedal and the brake pedal position switch Adjustments.
