Pedal Positioning System: Testing and Inspection

Power Adjustable Pedals Switch Test and Replacement

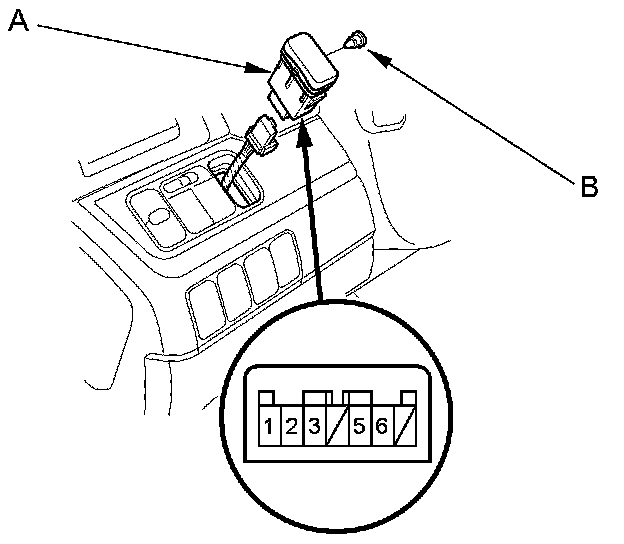

1. Carefully push out the power adjustable pedals switch (A) and disconnect the 7P connector from the switch.

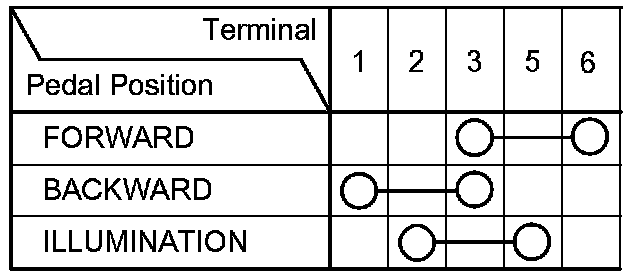

2. Check for continuity between the terminals in each pedal position according to the table. If there is no continuity, replace the power adjustable pedals switch or the bulb (B).
