Amplifier: Service and Repair

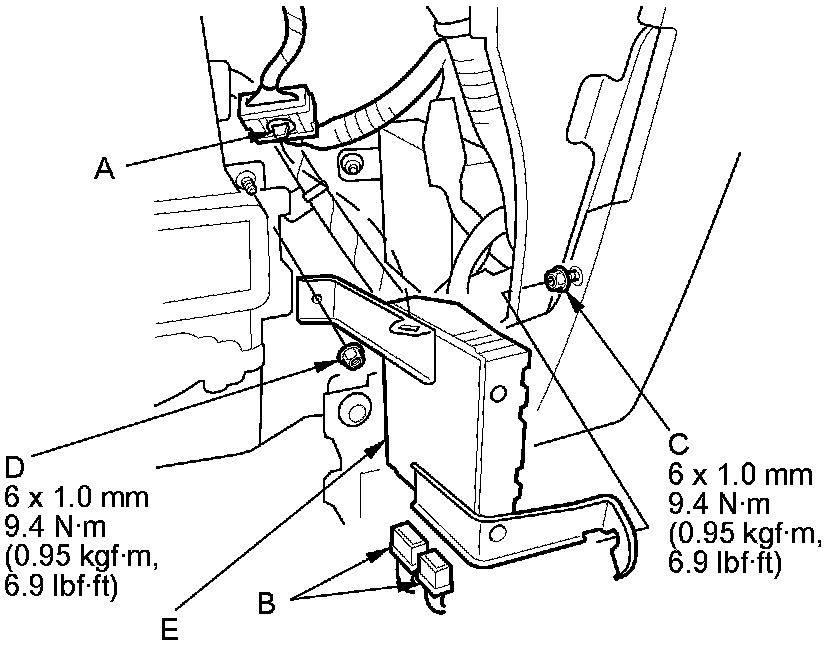

Stereo Amplifier Removal/Installation

1. Remove the glove box Lower Glove Box Removal/Installation.

2. Remove the connector clip (A), and disconnect the connectors (B).





3. Loosen the mounting bolt (C), and remove the mounting nut (D), then remove the stereo amplifier (E).

4. Install the stereo amplifier in the reverse order of removal.
