Audio System Description


XM Receiver Connector for Inputs and Outputs (With XM)

When replacing a XM receiver connector, match the wires to the cavities listed in the following table.

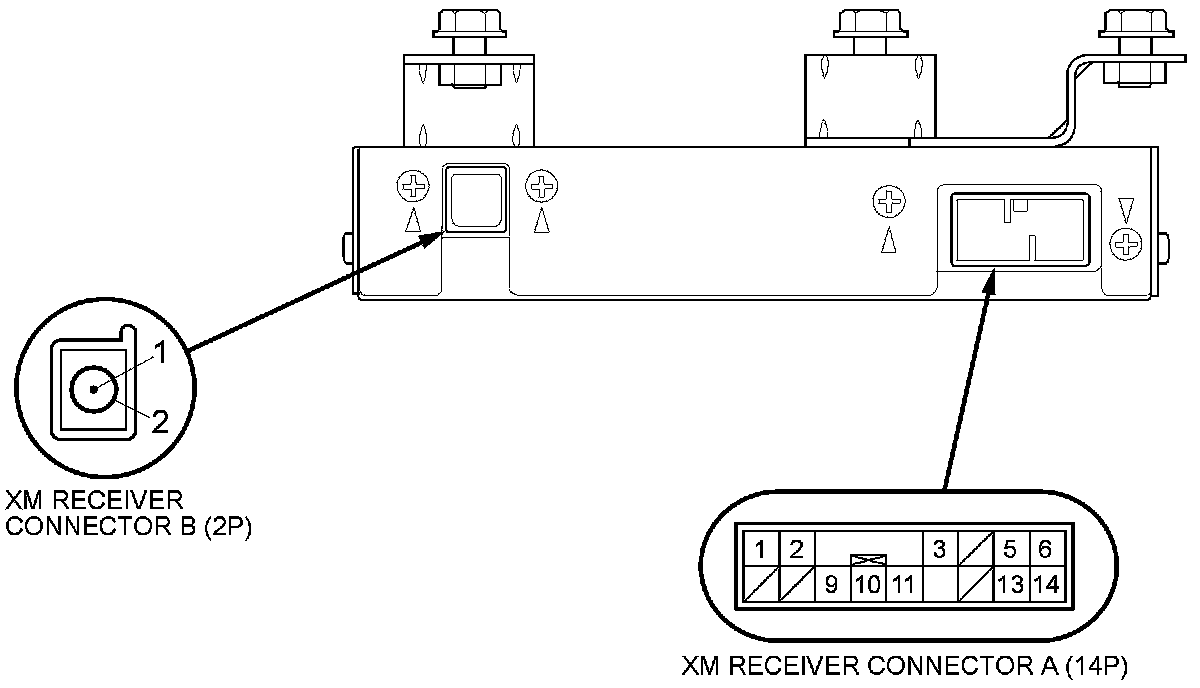

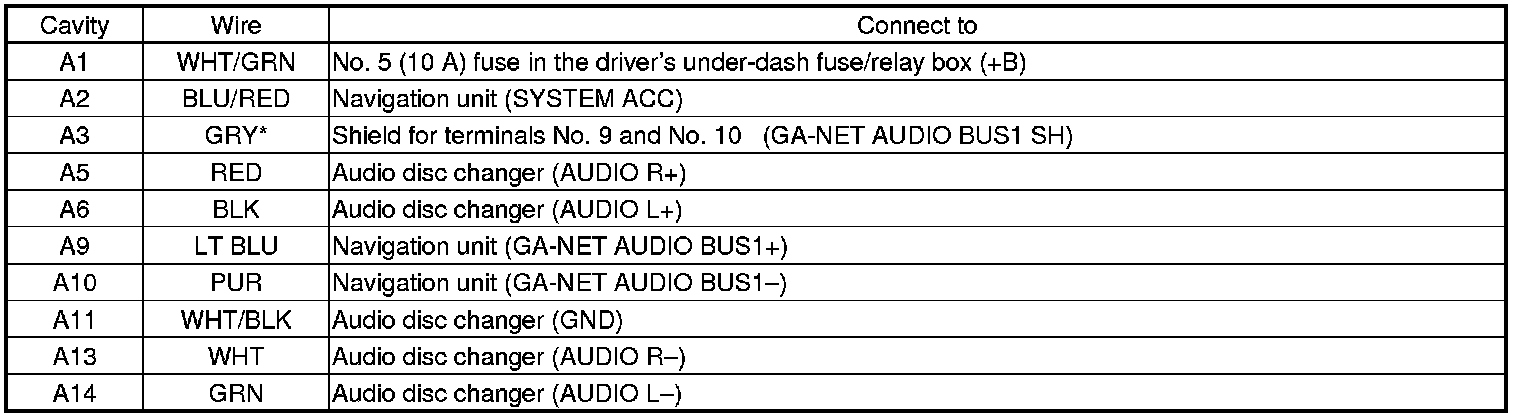

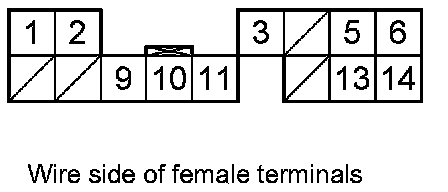

XM RECEIVER CONNECTOR A (14P) (With navigation)















XM RECEIVER CONNECTOR A (14P) (Without navigation)

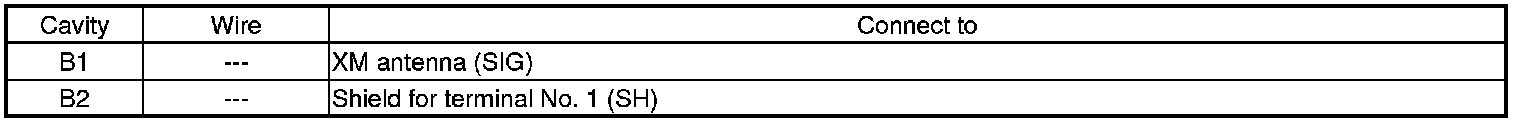

XM RECEIVER CONNECTOR B (2P)











Active Noise Cancellation Microphone Connector for Inputs and Outputs ('08-10 models with ANC)

When replacing an active noise cancellation microphone connector, match the wires to the cavities listed in the following tables.

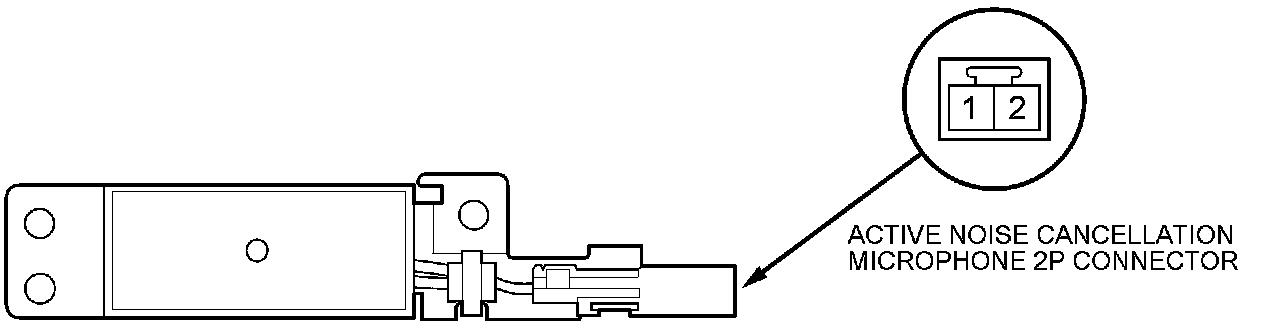

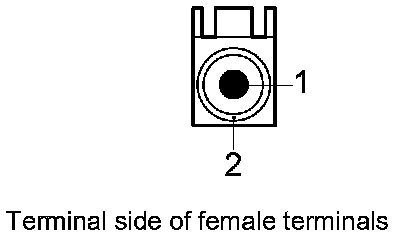

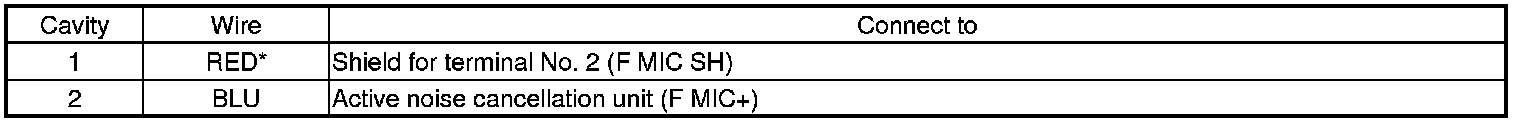

ACTIVE NOISE CANCELLATION FRONT MICROPHONE 2P CONNECTOR

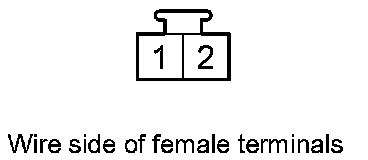

ACTIVE NOISE CANCELLATION REAR MICROPHONE 2P CONNECTOR















Active Noise Cancellation Unit Connector for Inputs and Outputs

When replacing an active noise cancellation unit connector, match the wires to the cavities listed in the following
table.

'07 model with ANC

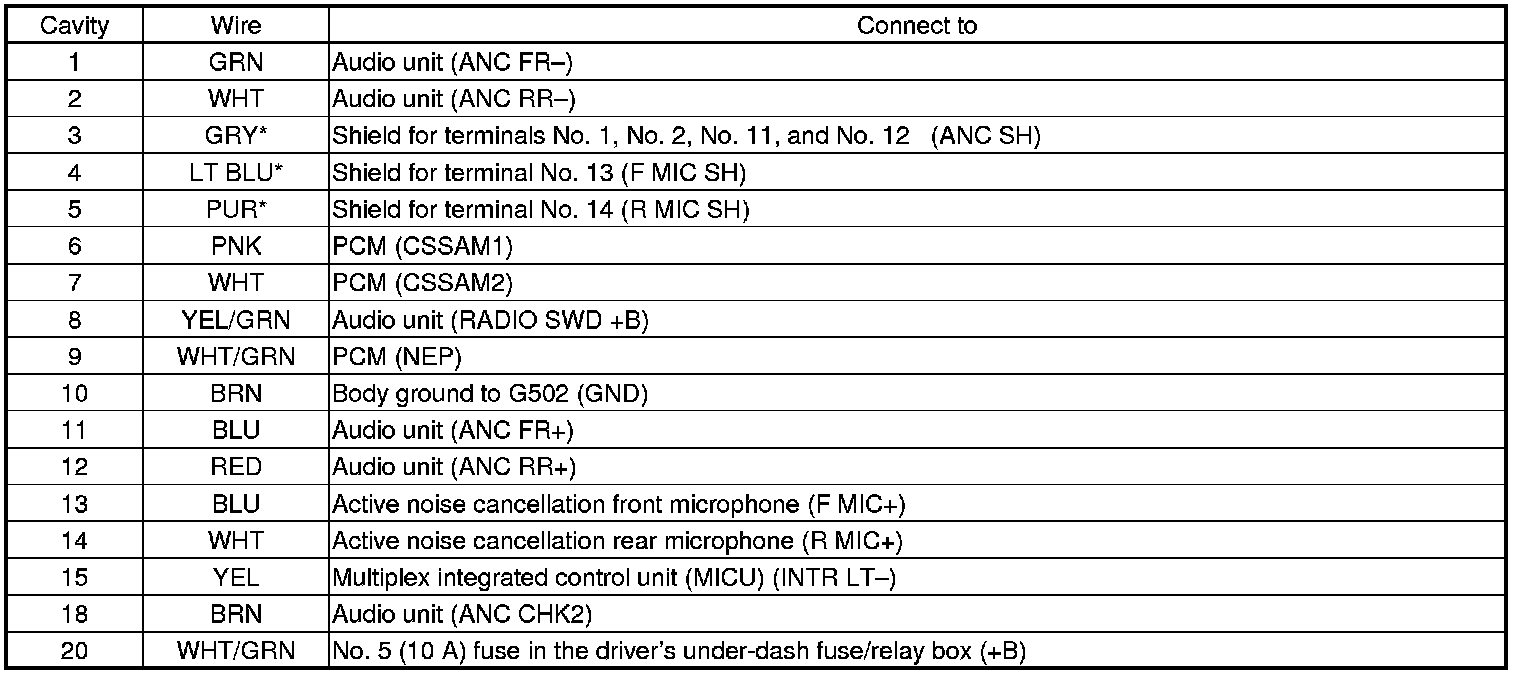

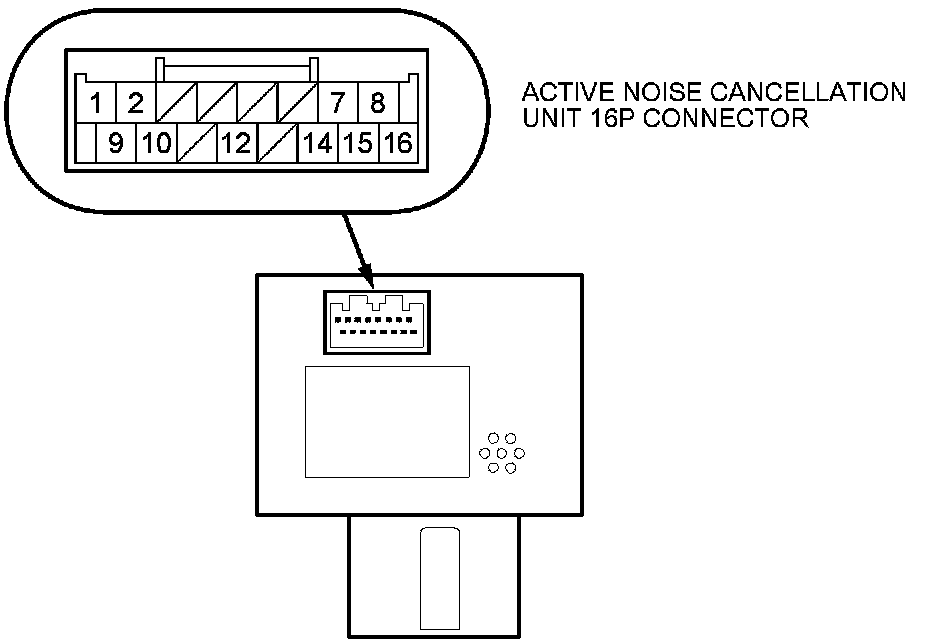

ACTIVE NOISE CANCELLATION UNIT 16P CONNECTOR











'08-10 models with premium audio system

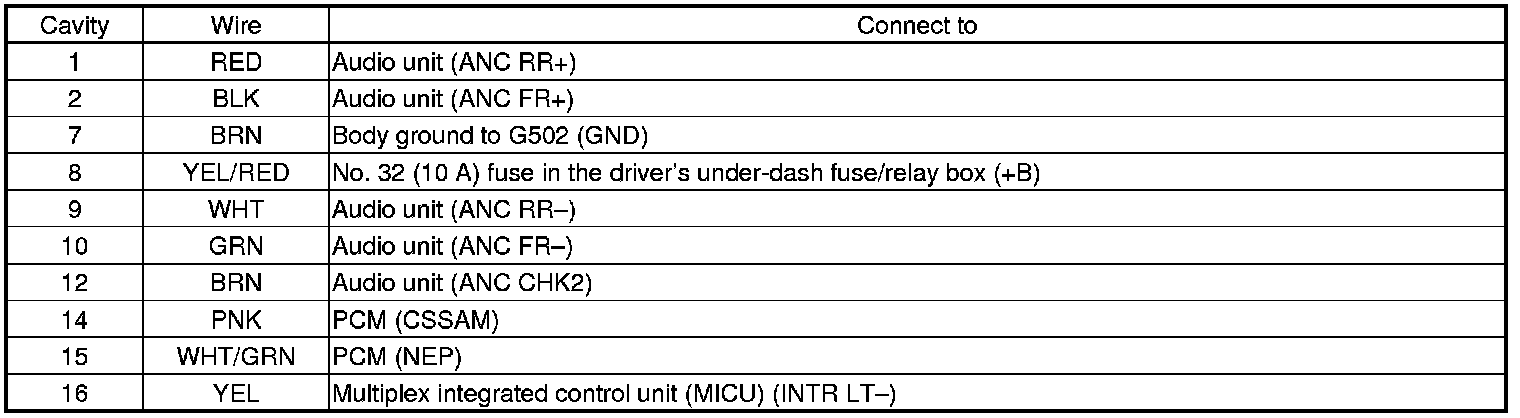

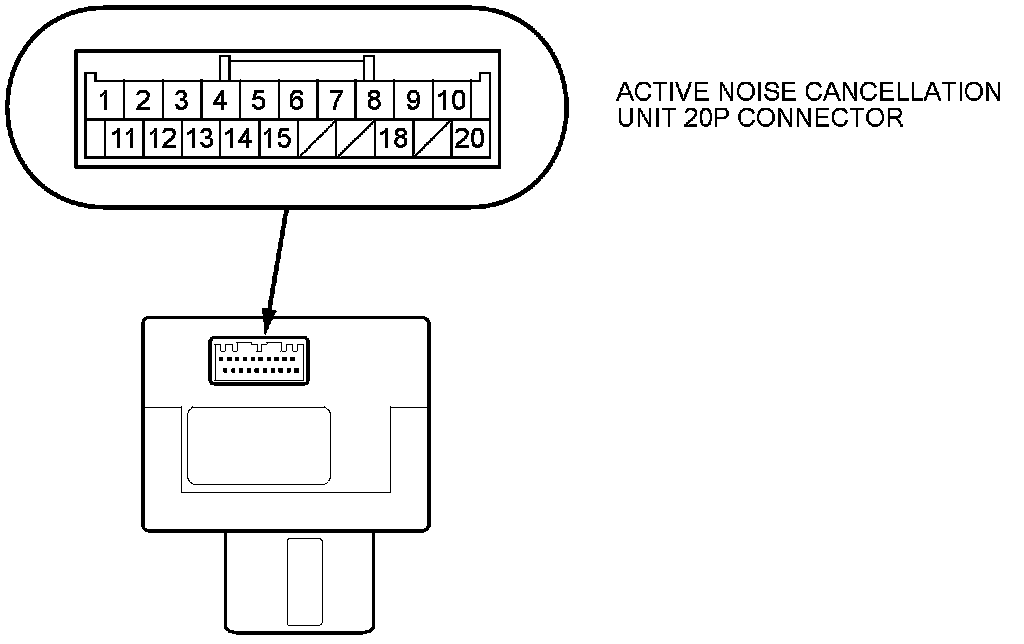

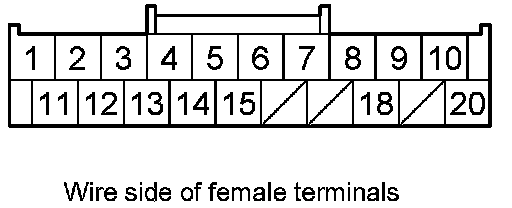

ACTIVE NOISE CANCELLATION UNIT 20P CONNECTOR















'08-10 models without premium audio system, with ANC

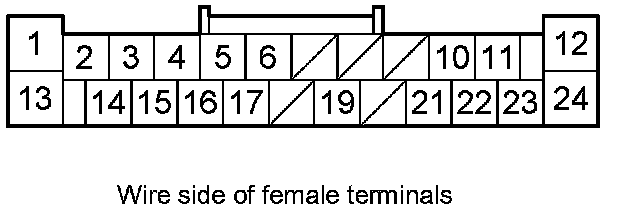

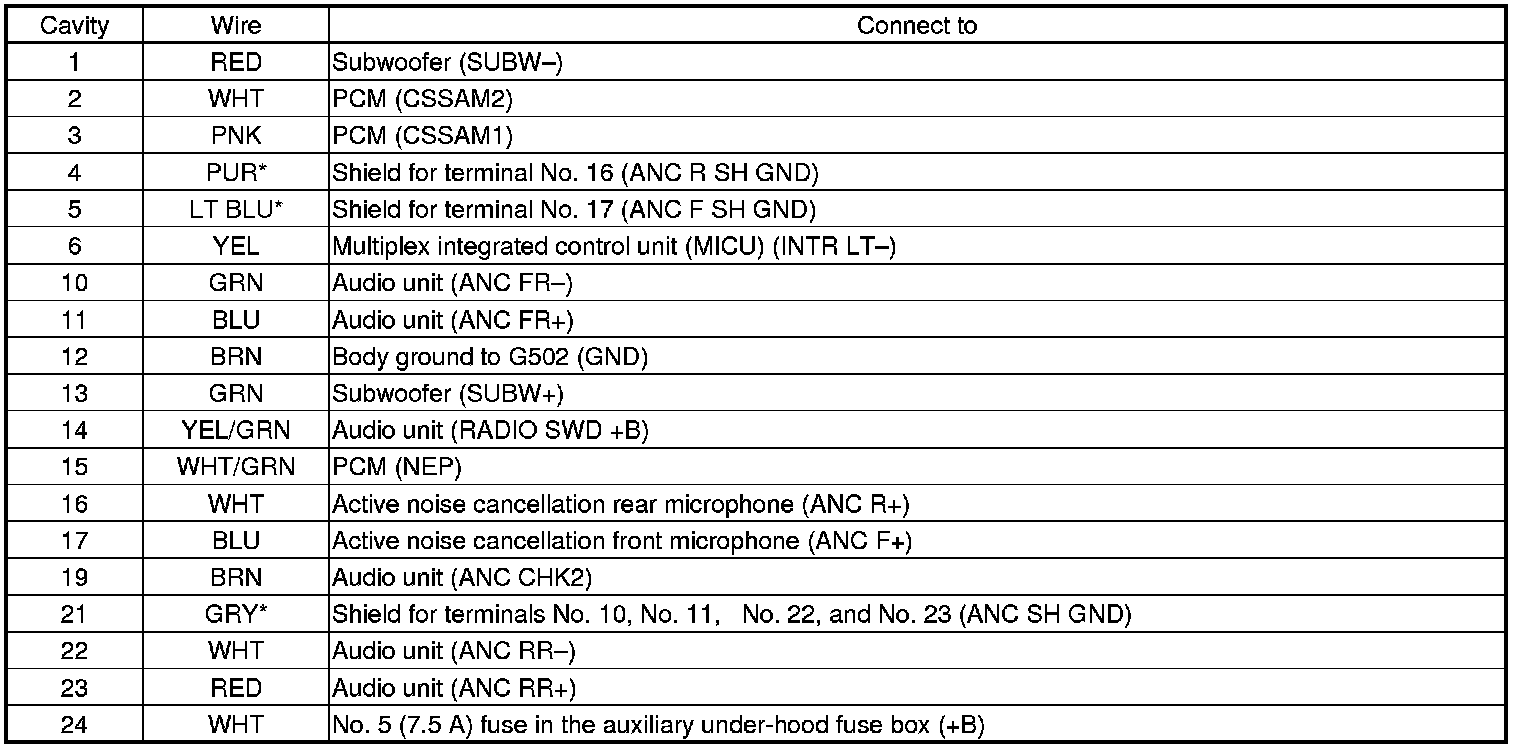

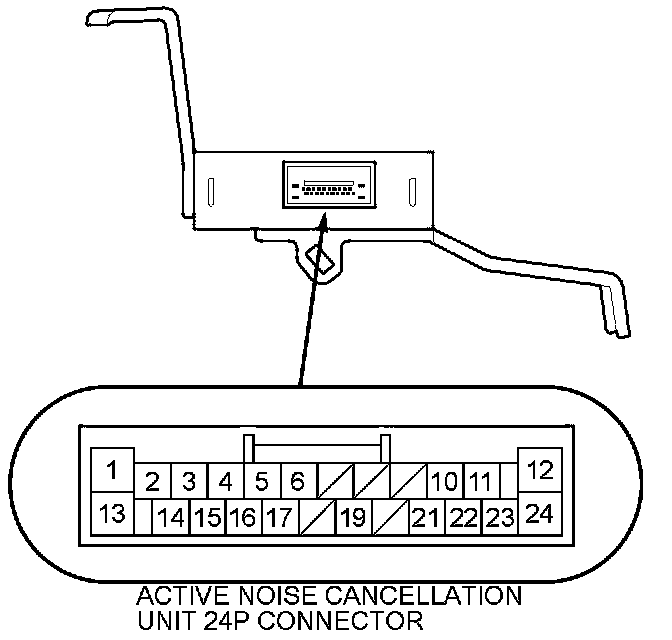

ACTIVE NOISE CANCELLATION UNIT 24P CONNECTOR















Auxiliary Jack Assembly Connector for Inputs and Outputs ('08-10 models)

When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in the following table.

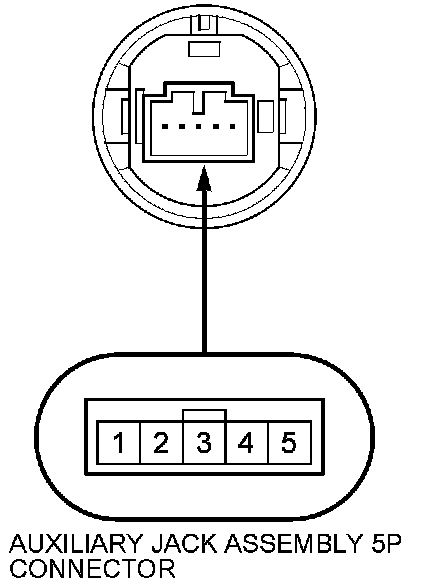

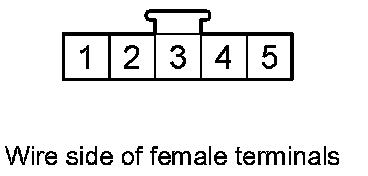

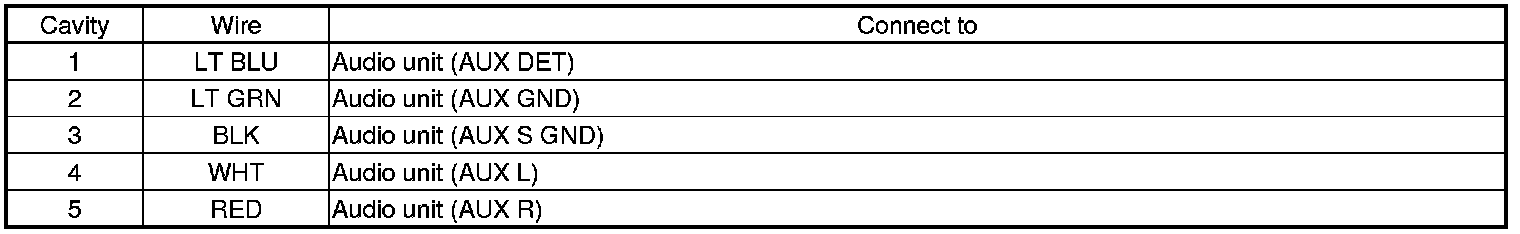

AUXILIARY JACK ASSEMBLY 5P CONNECTOR
