Part Two

Audio System Description


Audio Unit Connector for Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

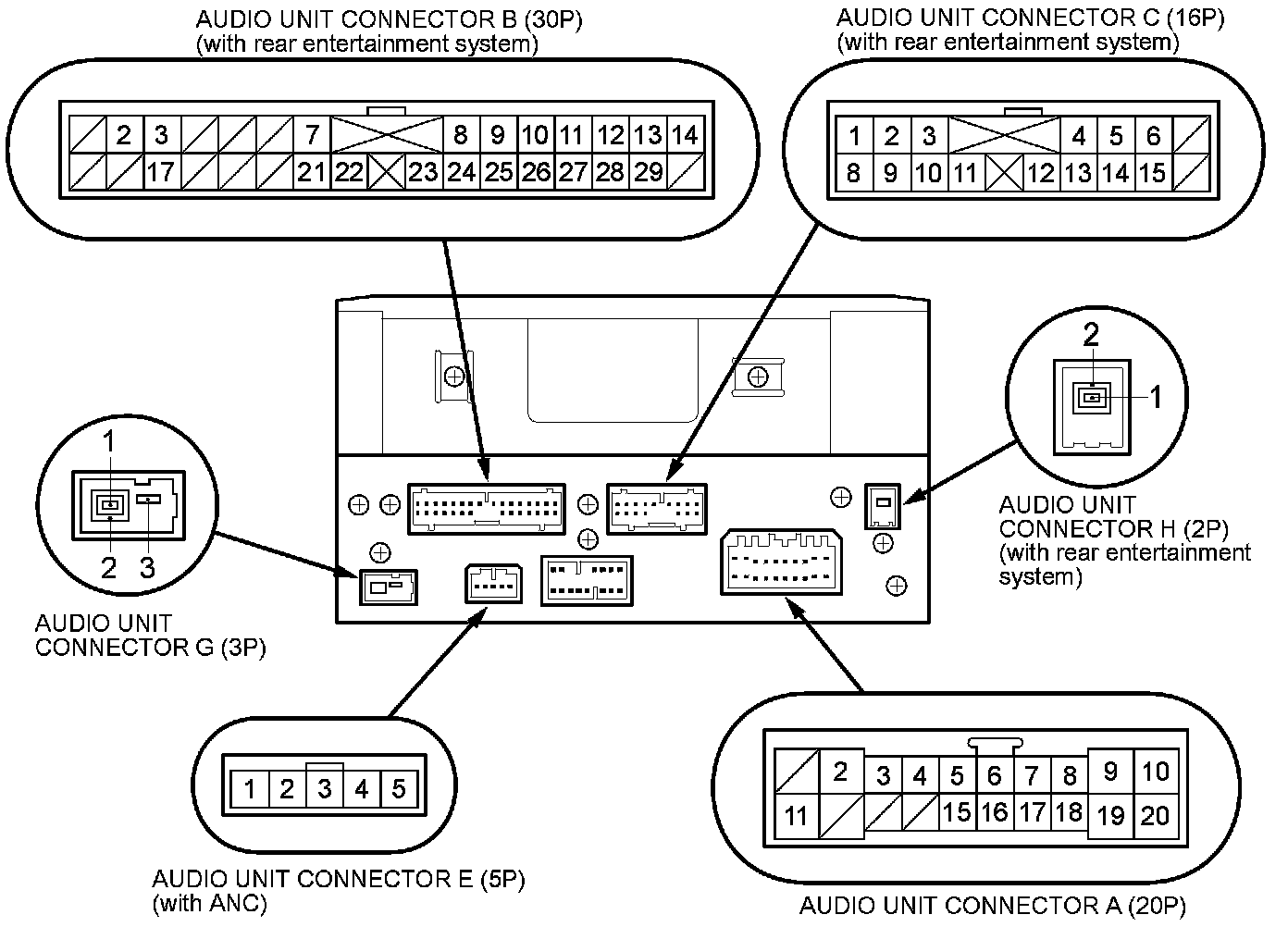

'07 model with premium audio system/without navigation

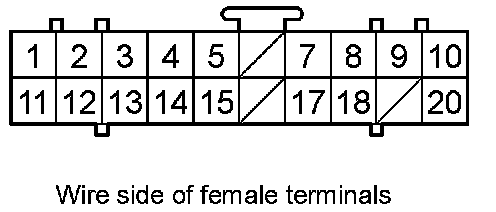

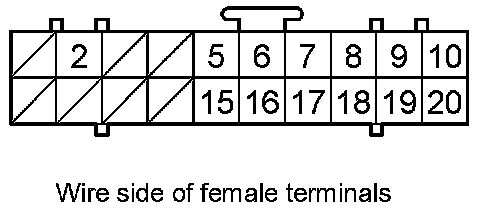

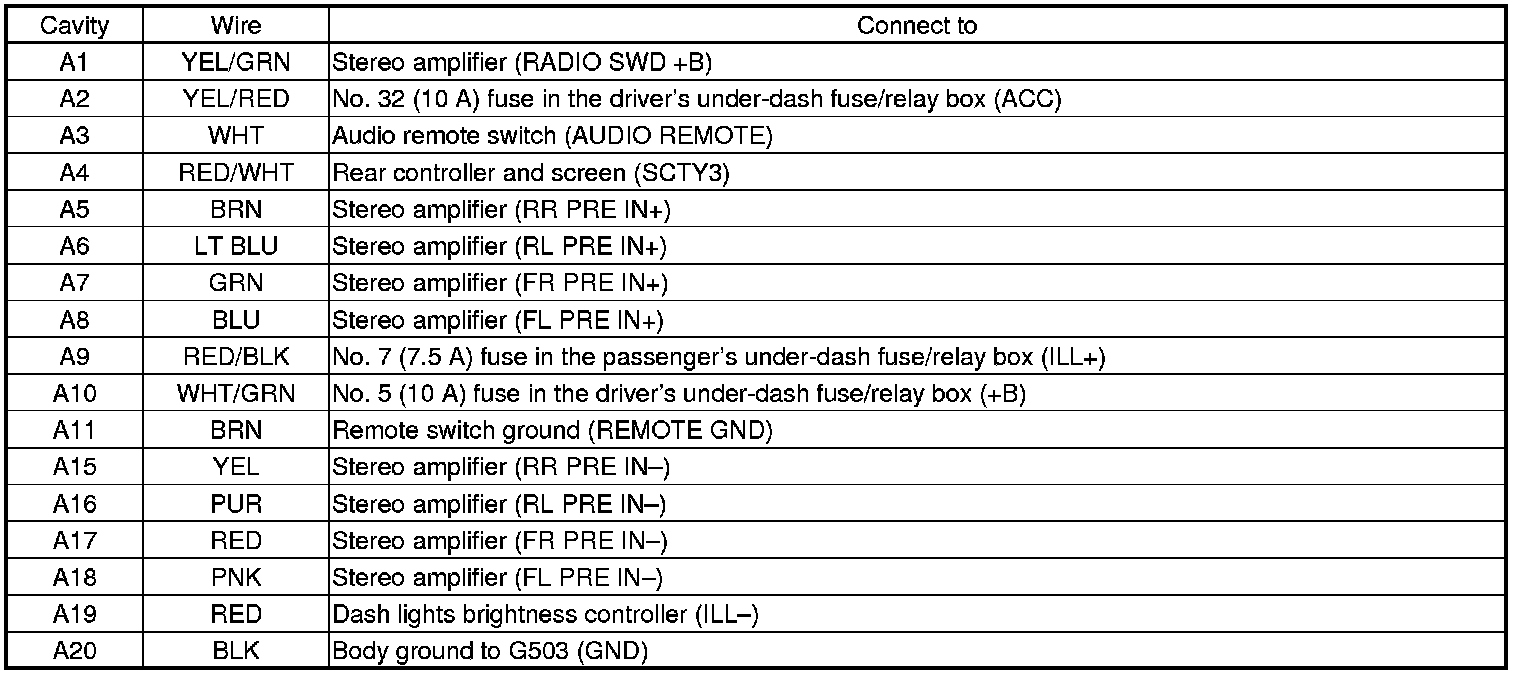

AUDIO UNIT CONNECTOR A (20P)

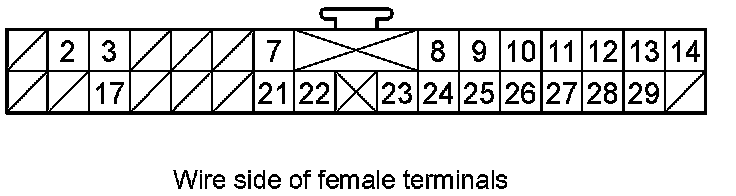

AUDIO UNIT CONNECTOR B (30P)

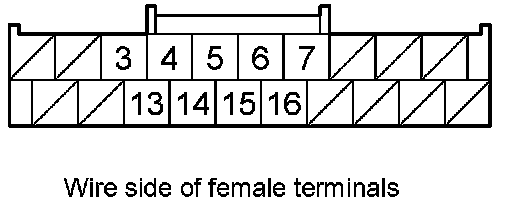

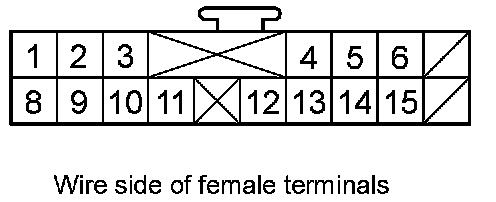

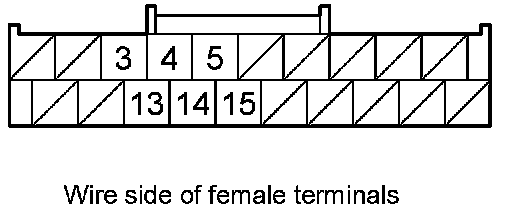

AUDIO UNIT CONNECTOR C (16P)

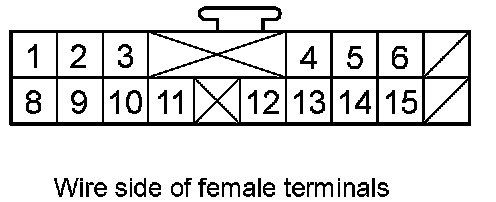

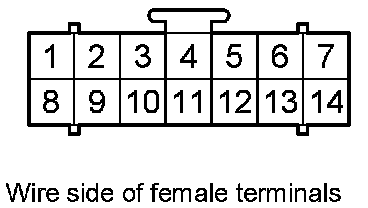

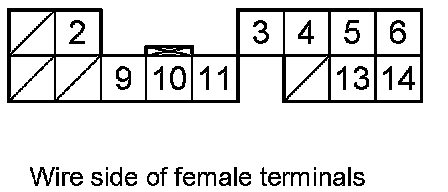

AUDIO UNIT CONNECTOR D (14P)















AUDIO UNIT CONNECTOR E (5P)

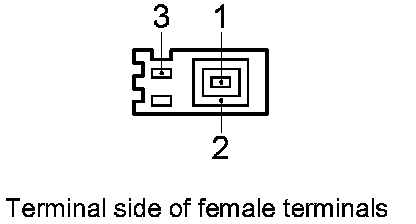

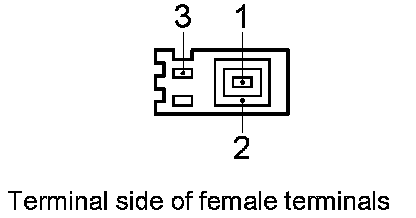

AUDIO UNIT CONNECTOR G (3P)

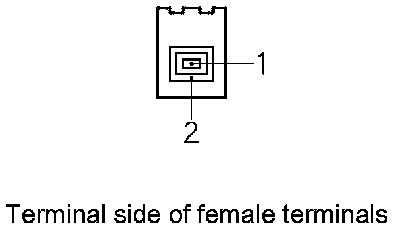

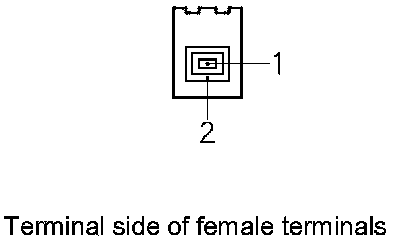

AUDIO UNIT CONNECTOR H (2P)

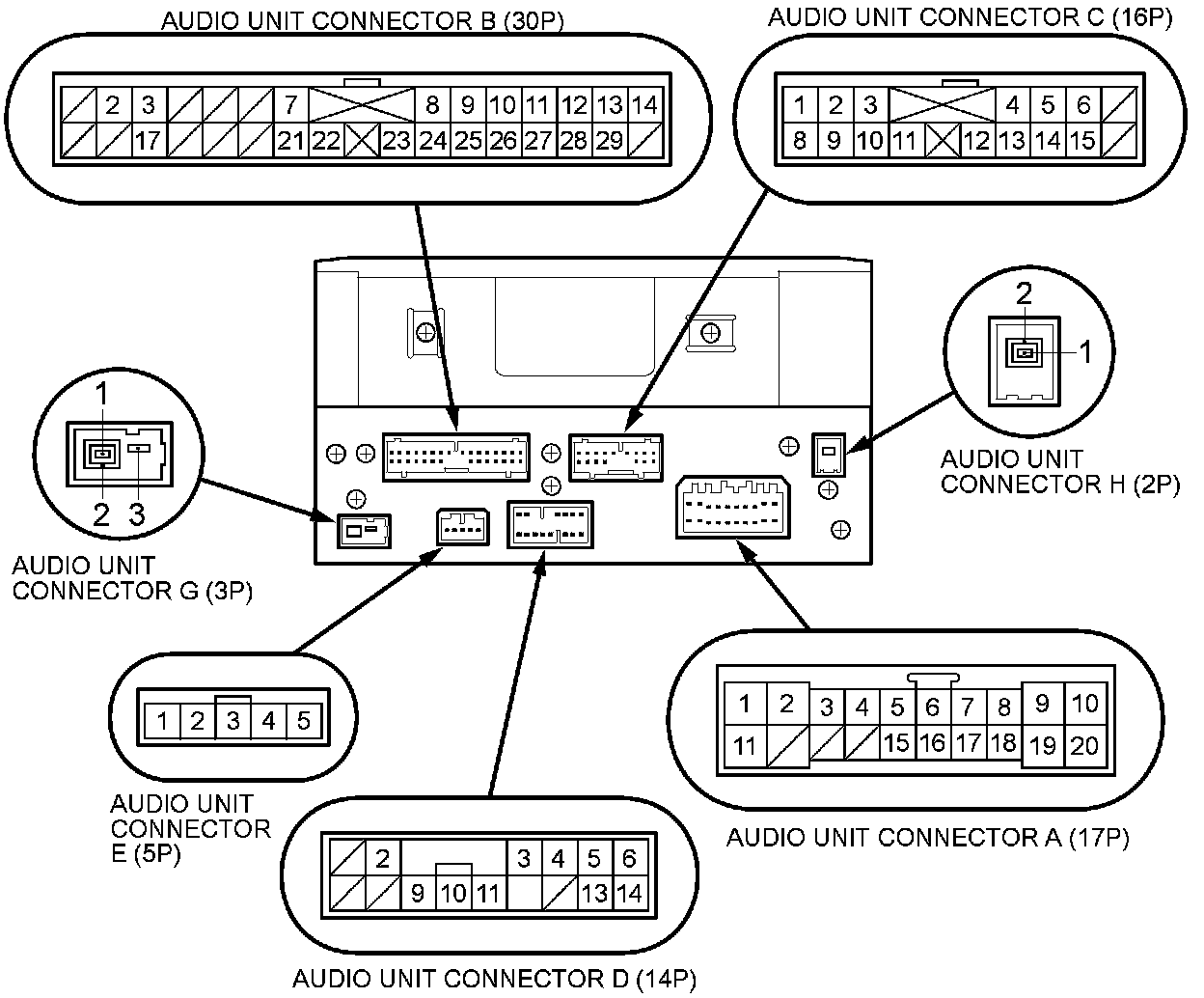

Audio Unit Connector for Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

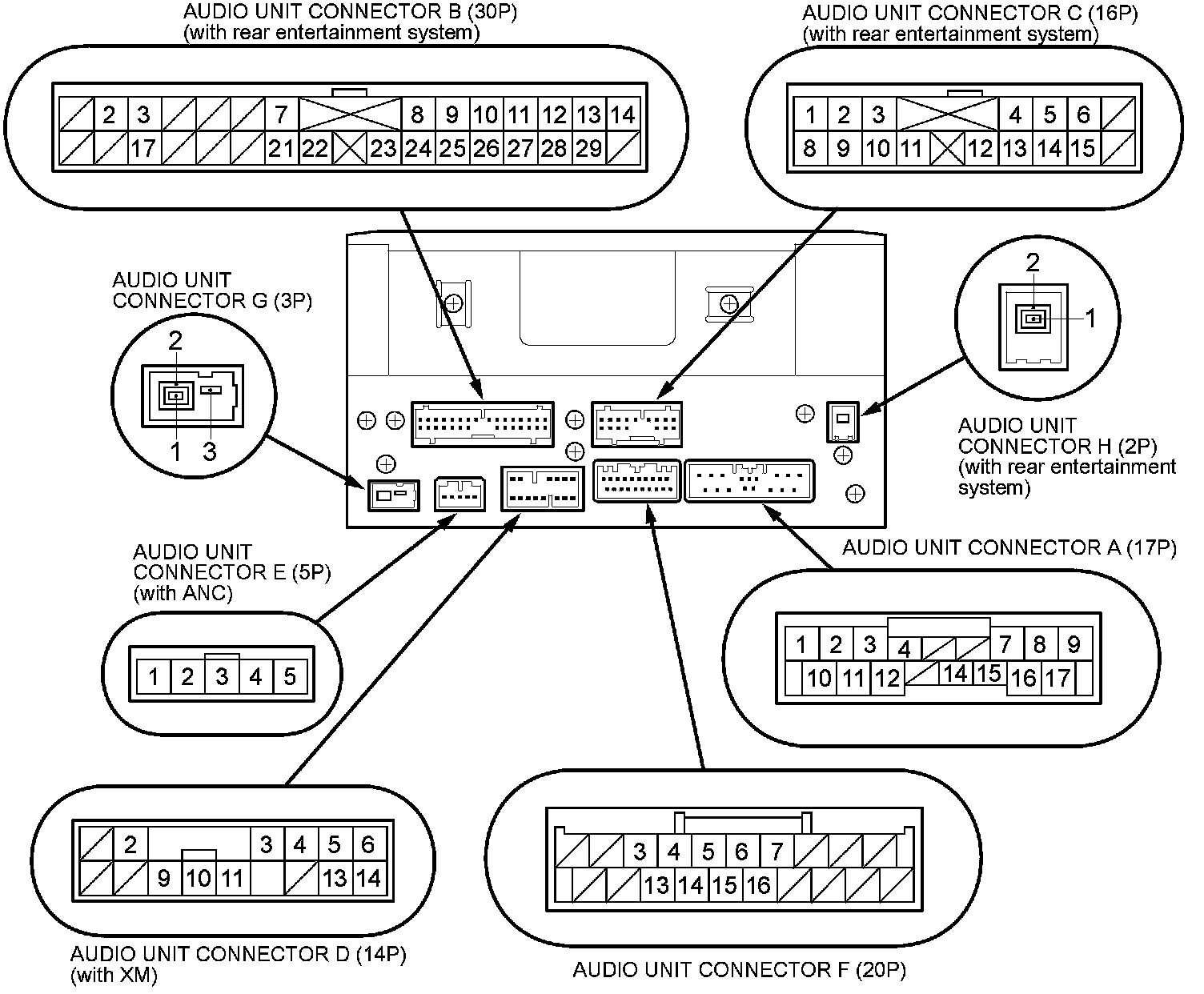

'07 model without premium audio system/without navigation/6 CD type





'08-10 models without premium audio system/without navigation/6 CD type

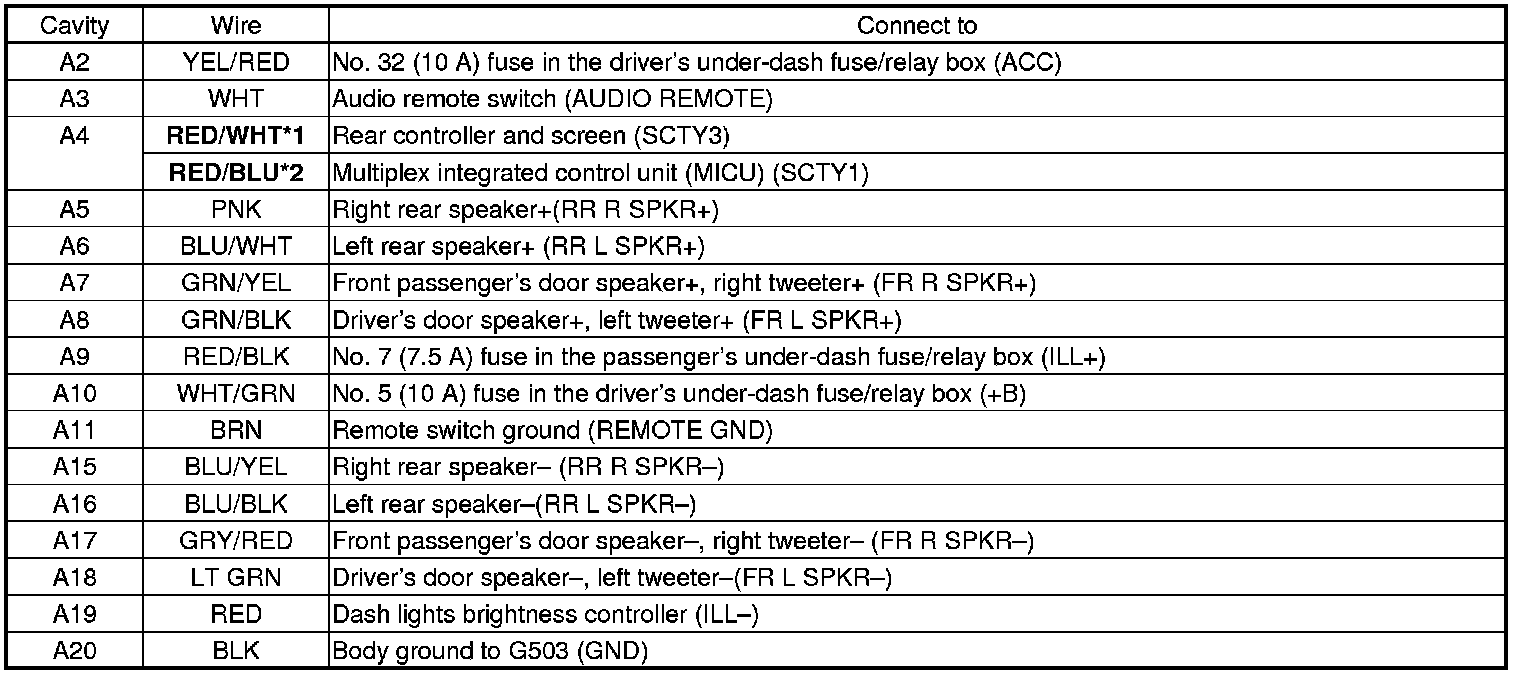

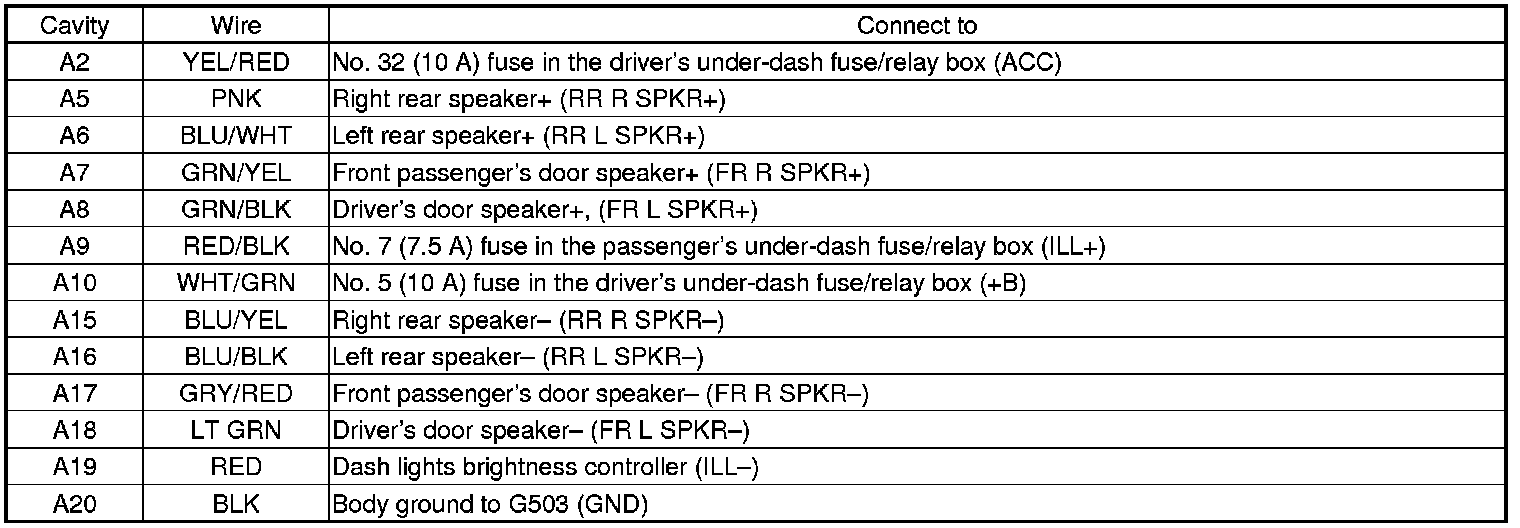

AUDIO UNIT CONNECTOR A (20P) ('07 model)

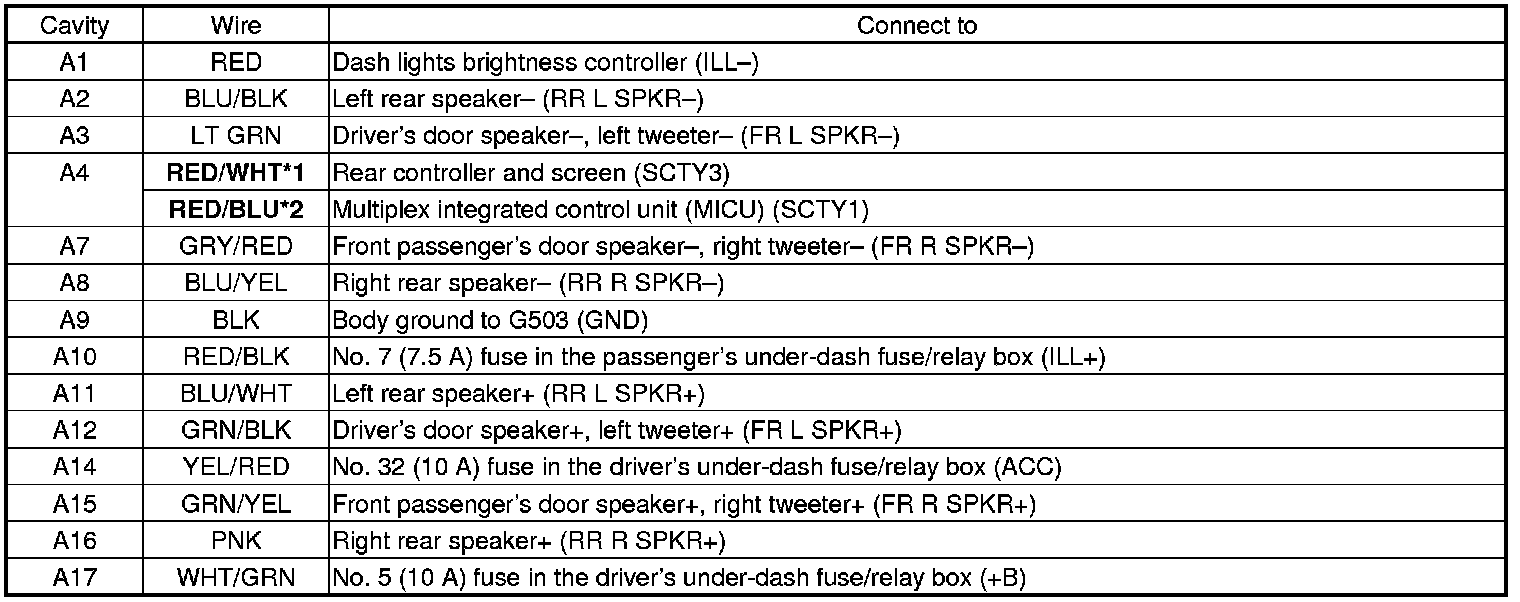

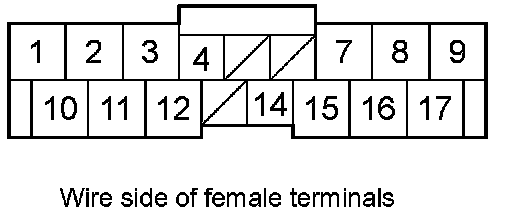

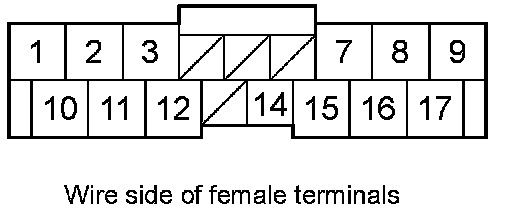

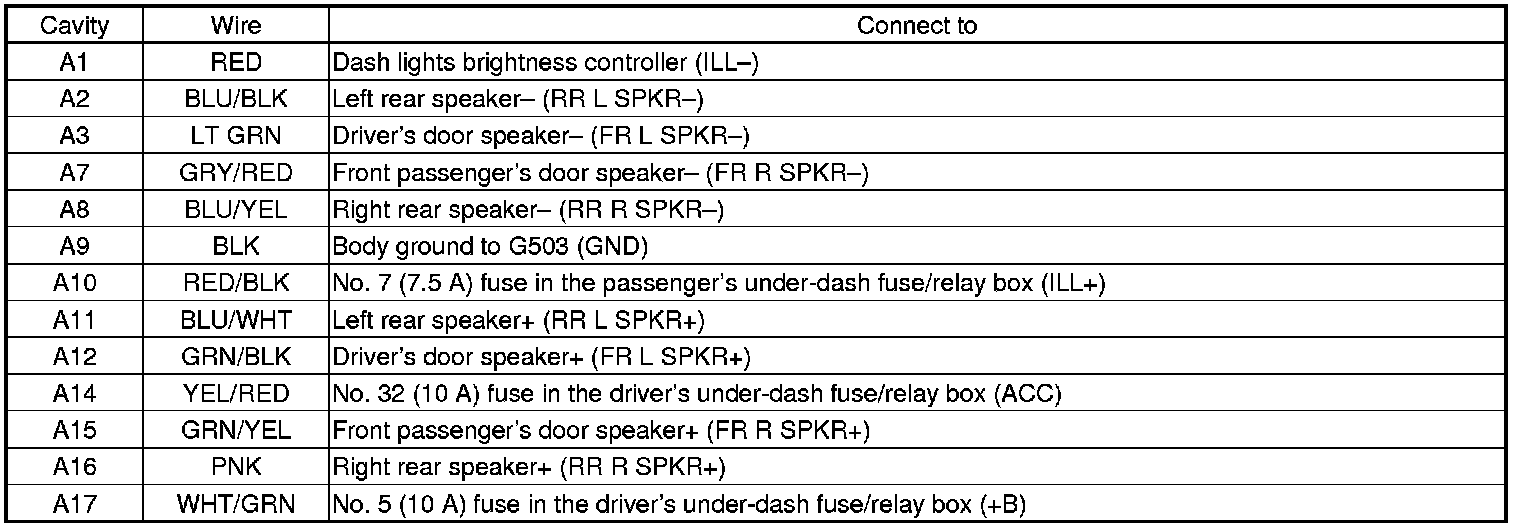

AUDIO UNIT CONNECTOR A (17P) ('08-10 models)

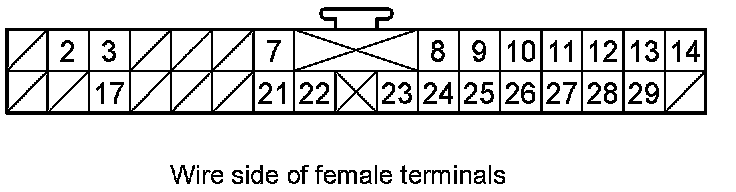

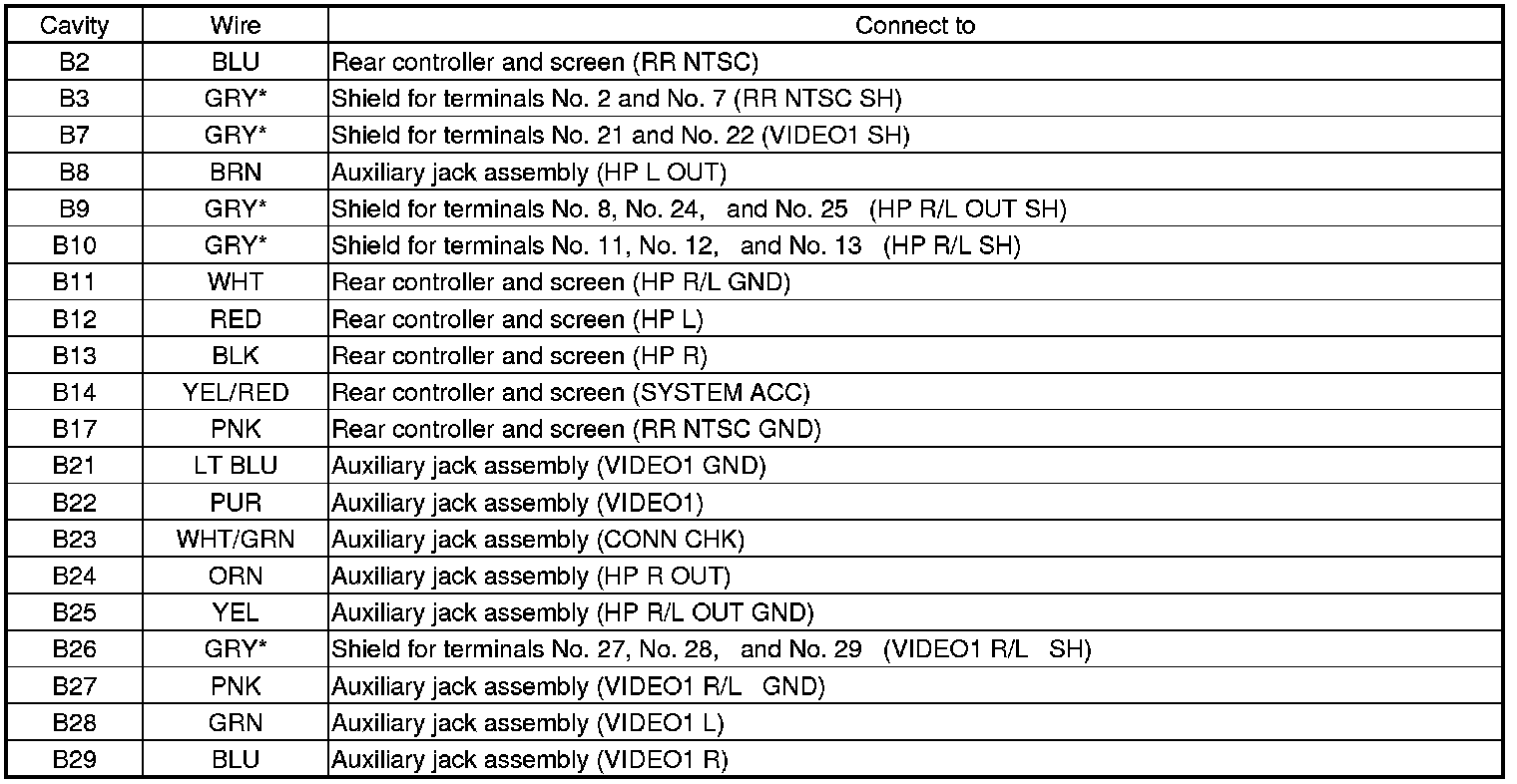

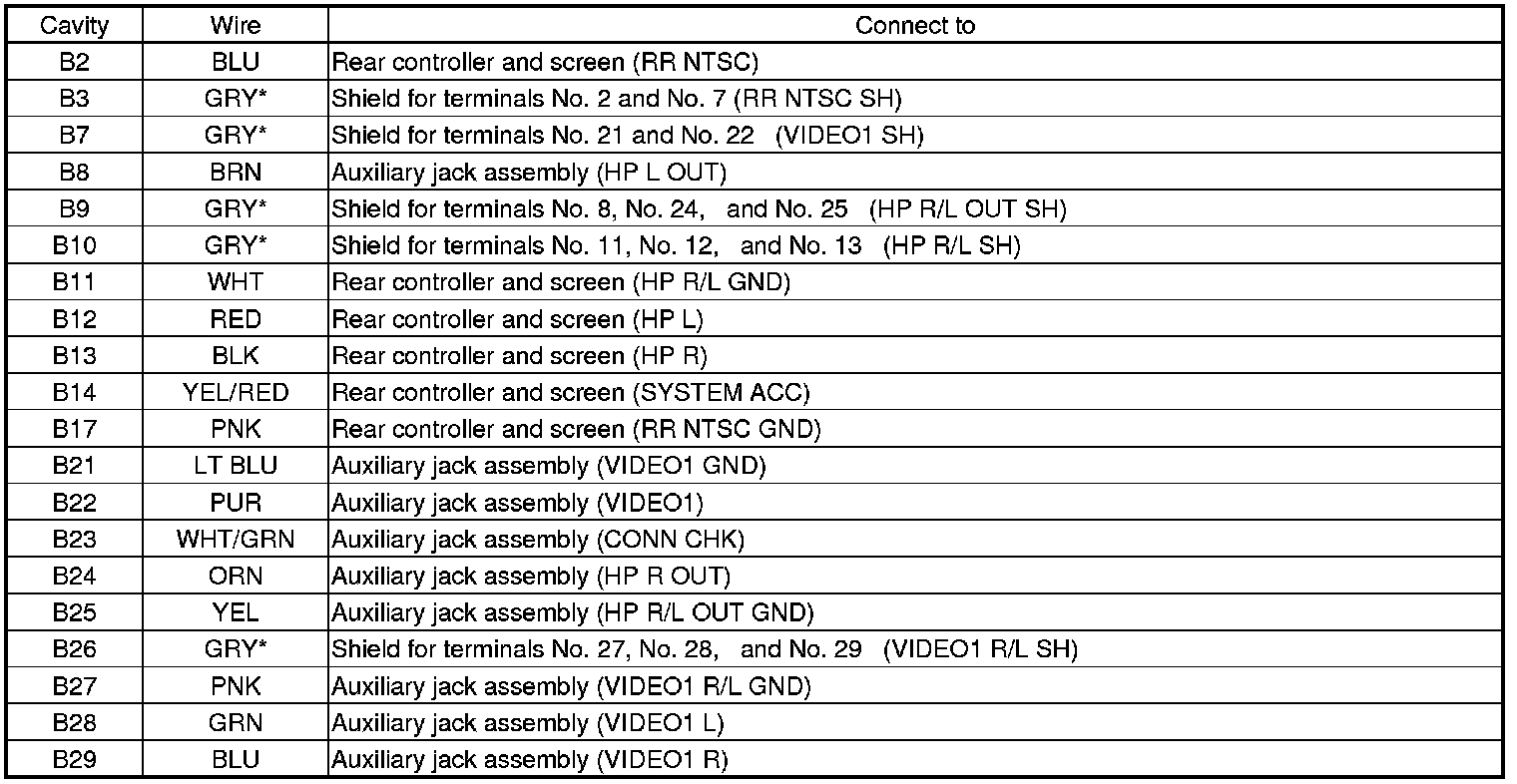

AUDIO UNIT CONNECTOR B (30P) (With rear entertainment system)

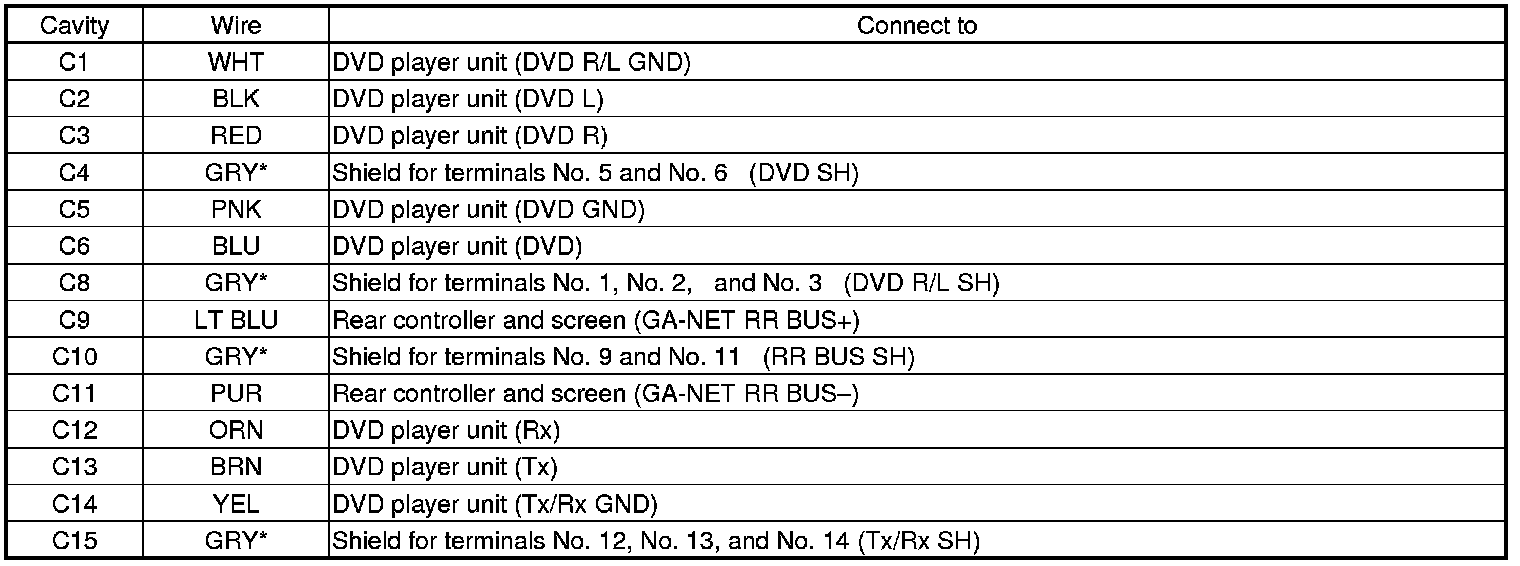

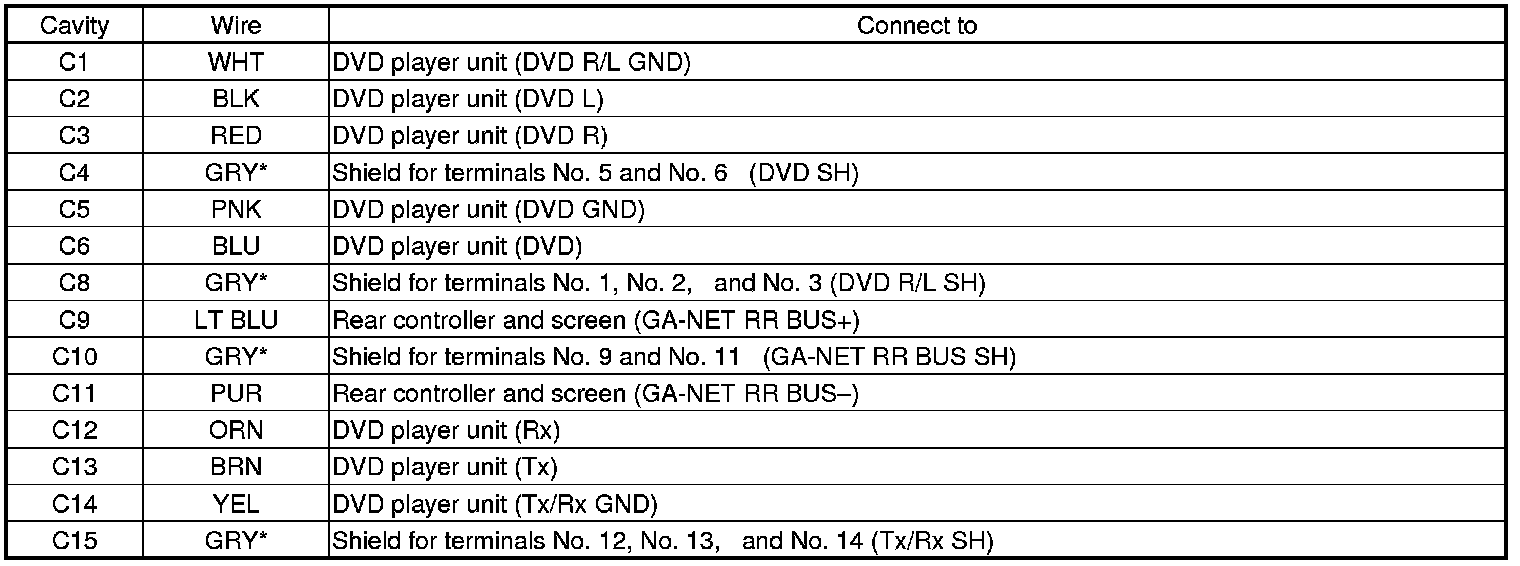

AUDIO UNIT CONNECTOR C (16P) (With rear entertainment system)

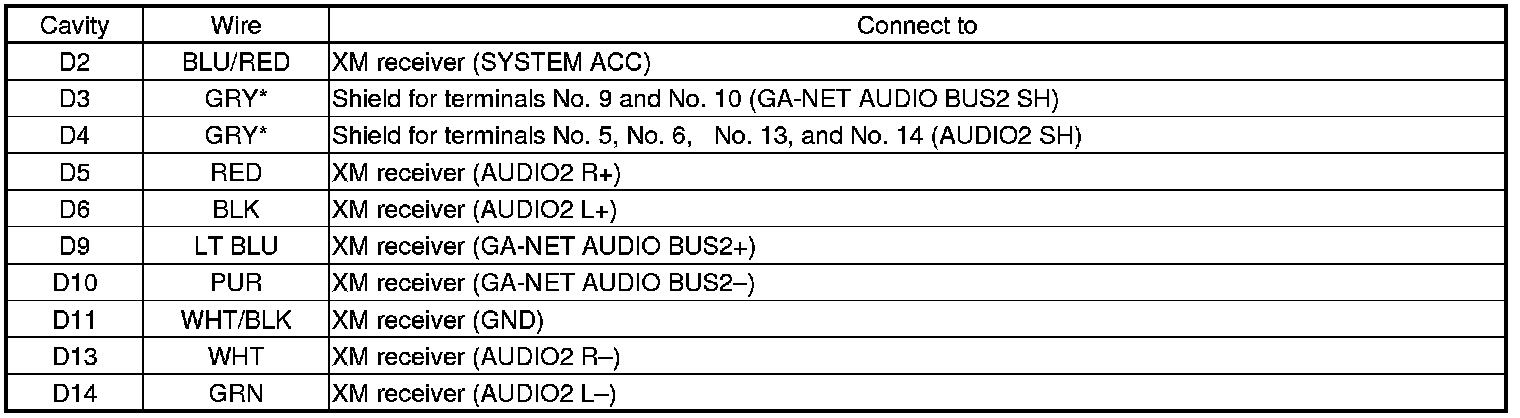

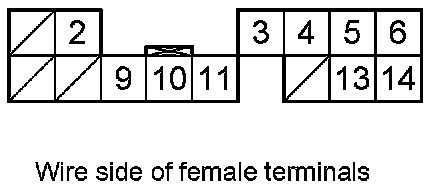

AUDIO UNIT CONNECTOR D (14P) ('08-10 models with XM)

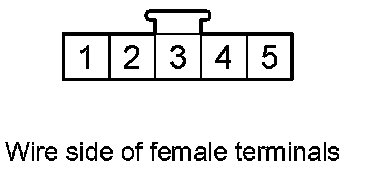

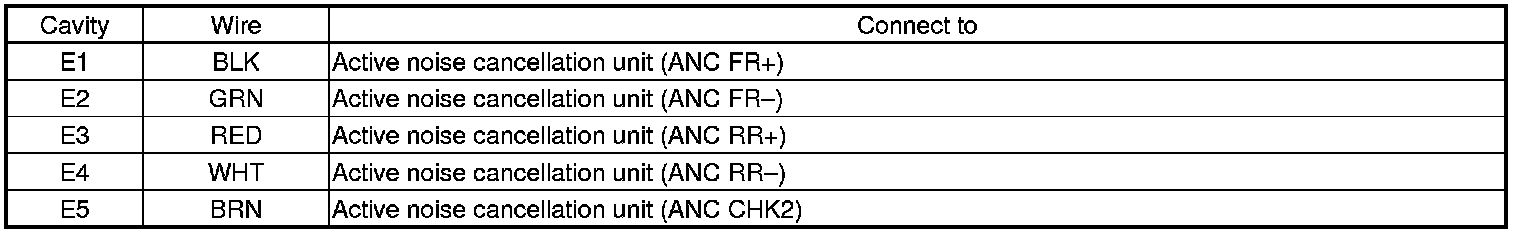

AUDIO UNIT CONNECTOR E (5P) (With ANC)

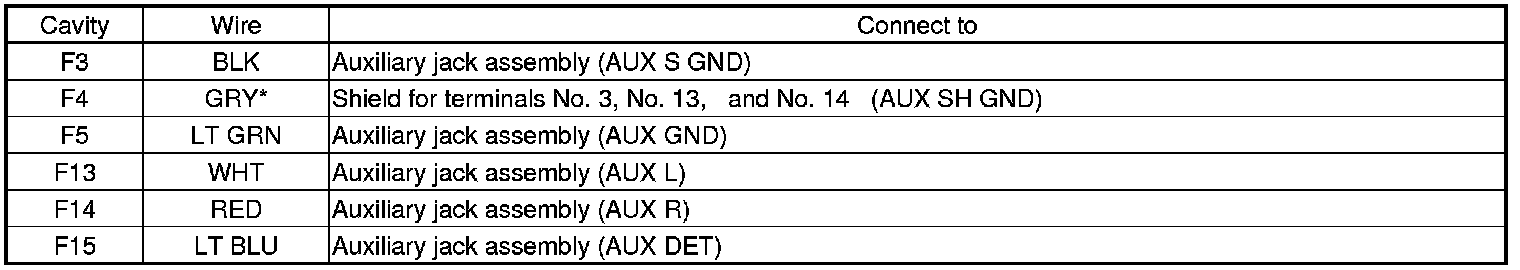

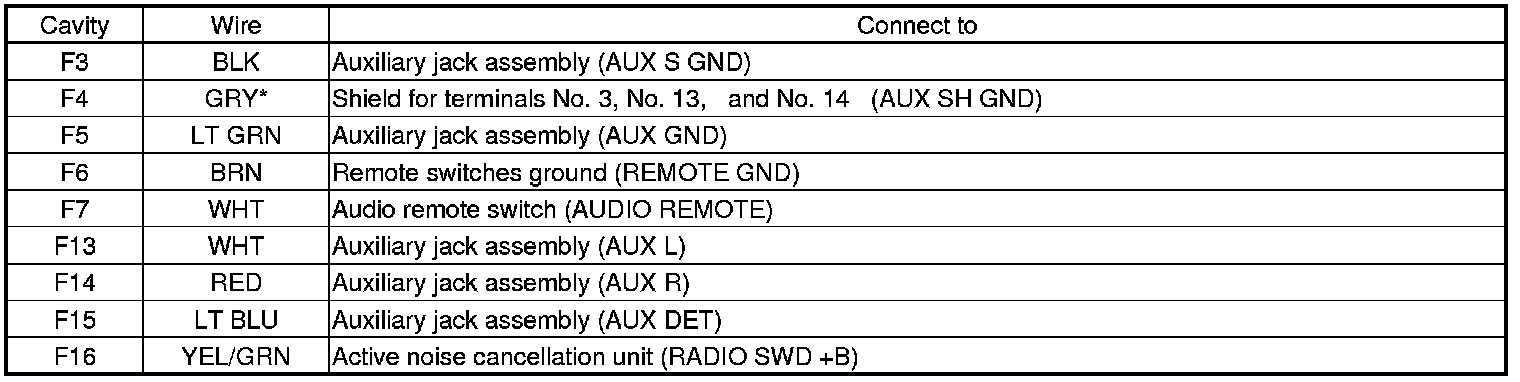

AUDIO UNIT CONNECTOR F (20P) ('08-10 models)

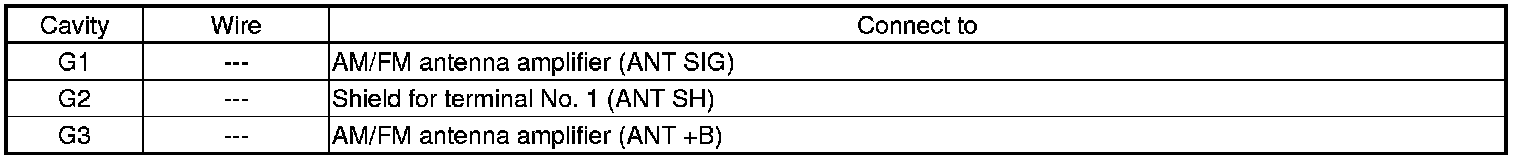

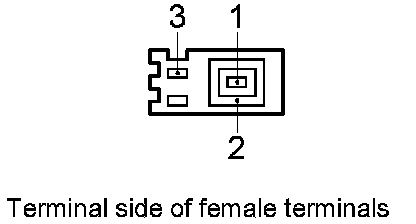

AUDIO UNIT CONNECTOR G (3P)

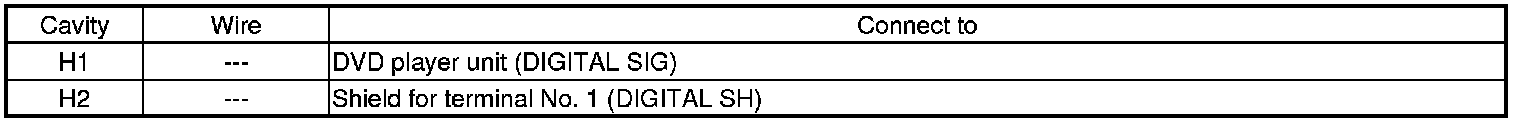

AUDIO UNIT CONNECTOR H (2P) (With rear entertainment system)

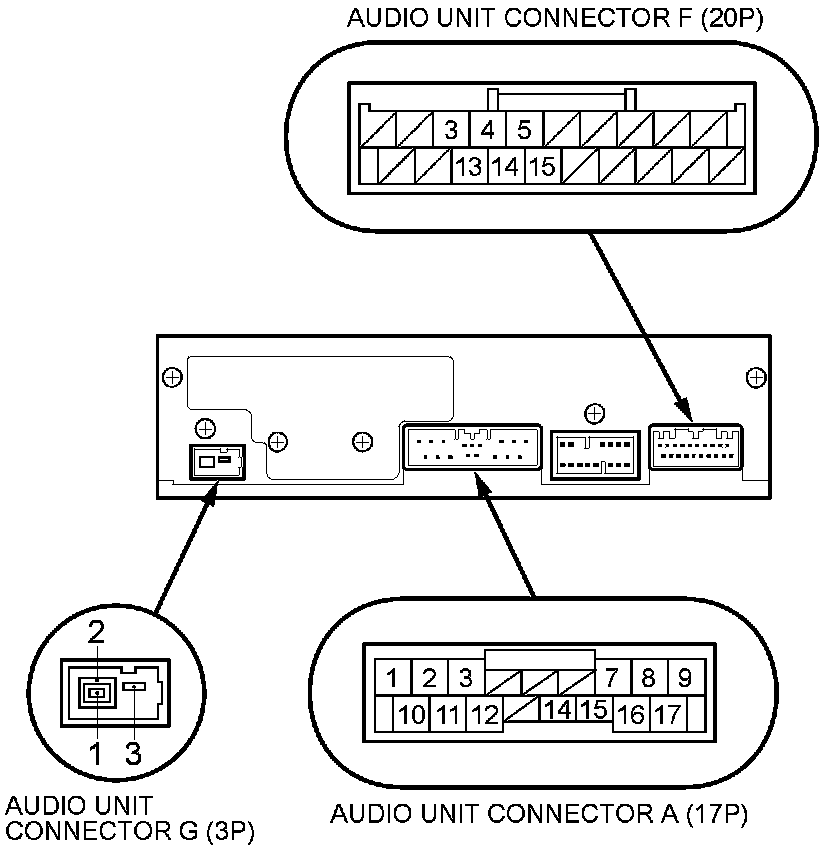

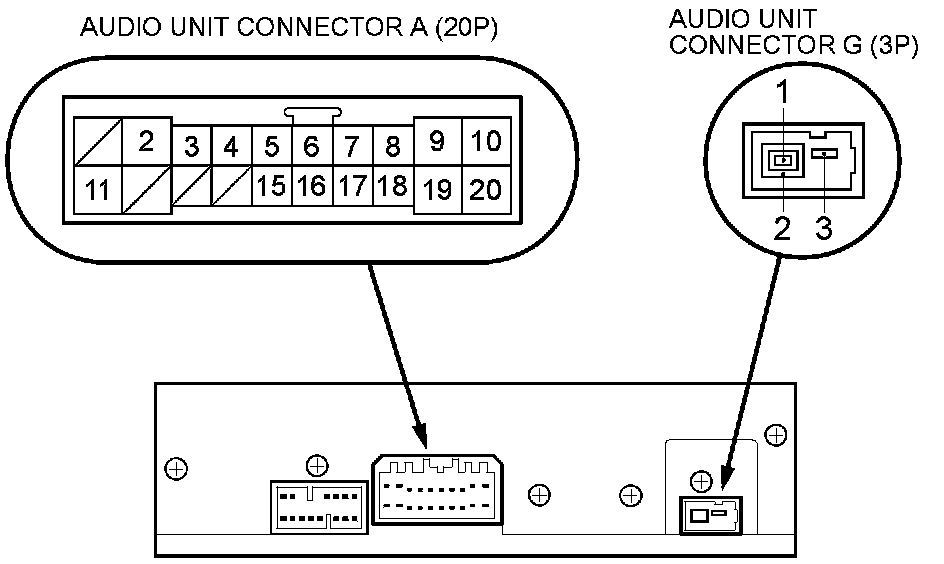

Audio Unit Connector for Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

'07 model without premium audio system/without navigation/1 CD type





'08-10 models without premium audio system/without navigation/1 CD type

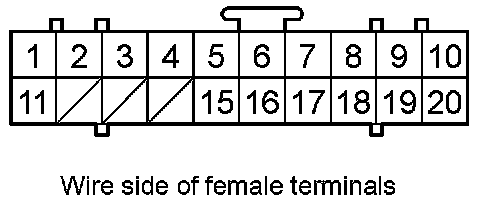

AUDIO UNIT CONNECTOR A (20P) ('07 model)











AUDIO UNIT CONNECTOR A (17P) ('08-10 models)











AUDIO UNIT CONNECTOR F (20P) ('08-10 models)















AUDIO UNIT CONNECTOR G (3P)

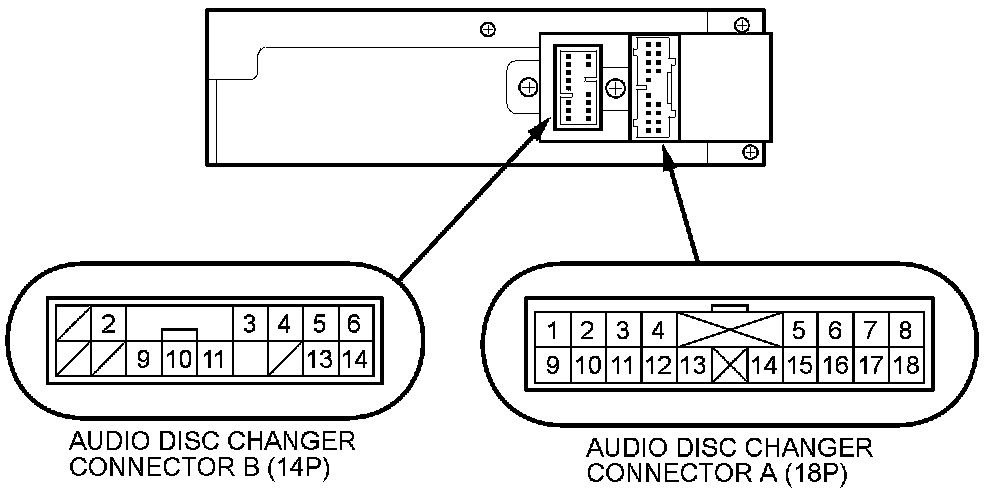

Audio Disc Changer Connector for Inputs and Outputs (With navigation)

When replacing a audio disc changer connector, match the wires to the cavities listed in the following table.

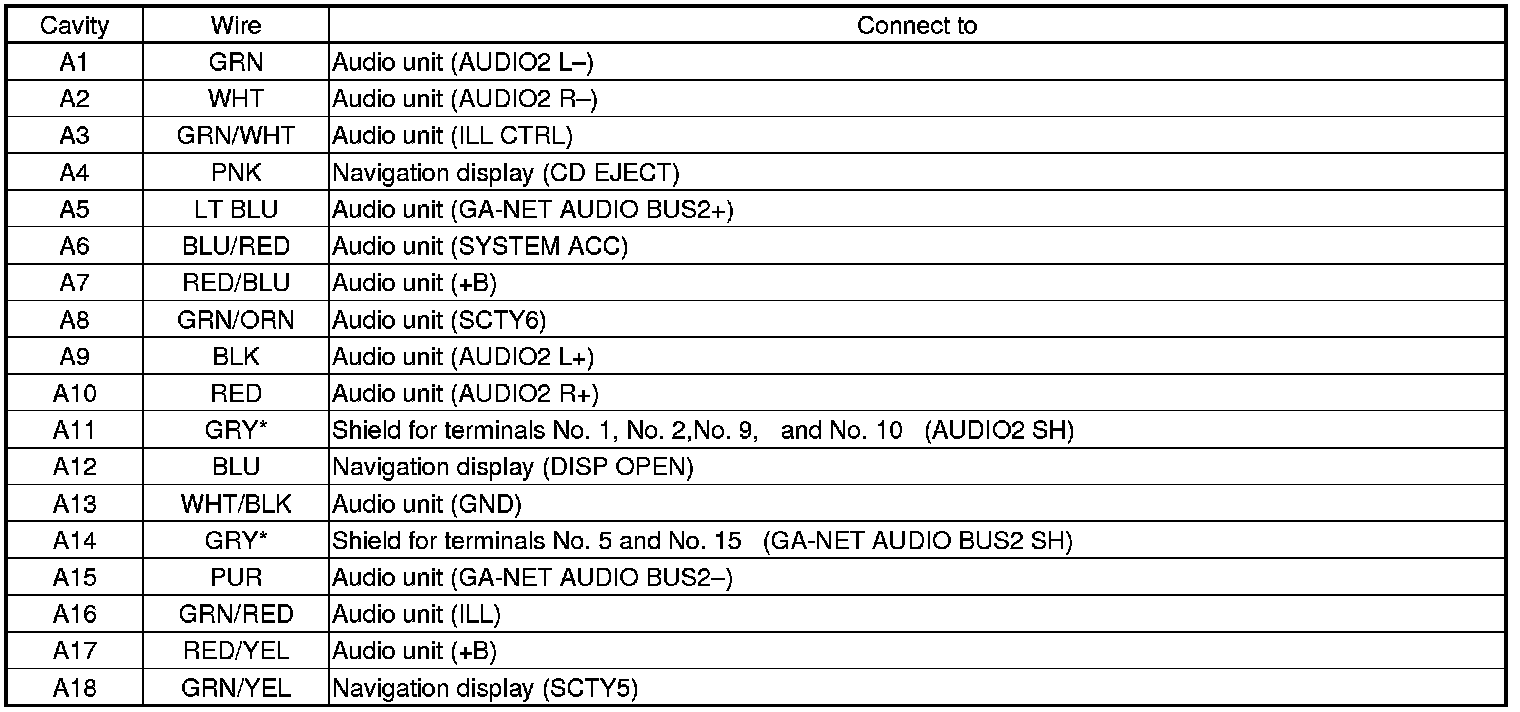

AUDIO DISC CHANGER CONNECTOR A (18P)















AUDIO DISC CHANGER CONNECTOR B (14P)

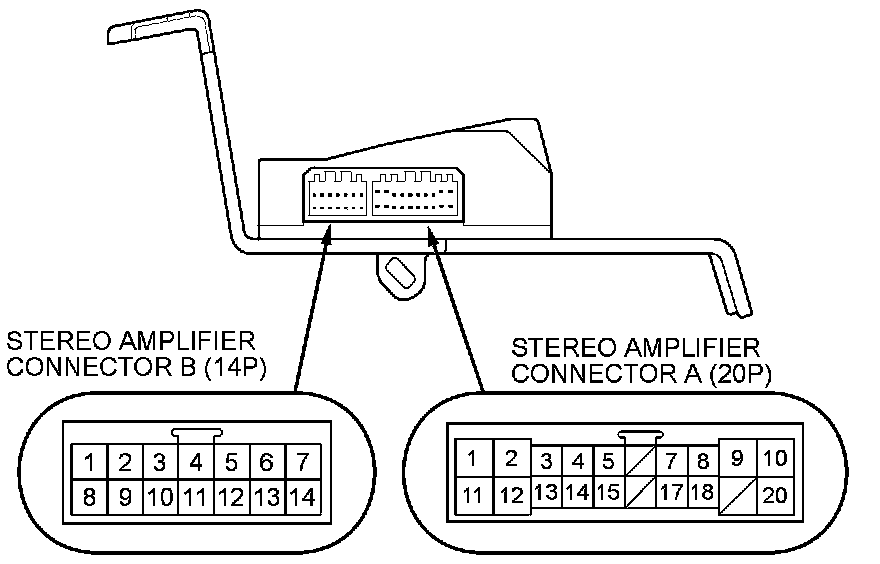

Stereo Amplifier Connector for Inputs and Outputs (With premium audio system)

When replacing a stereo amplifier connector, match the wires to the cavities listed in the following table.

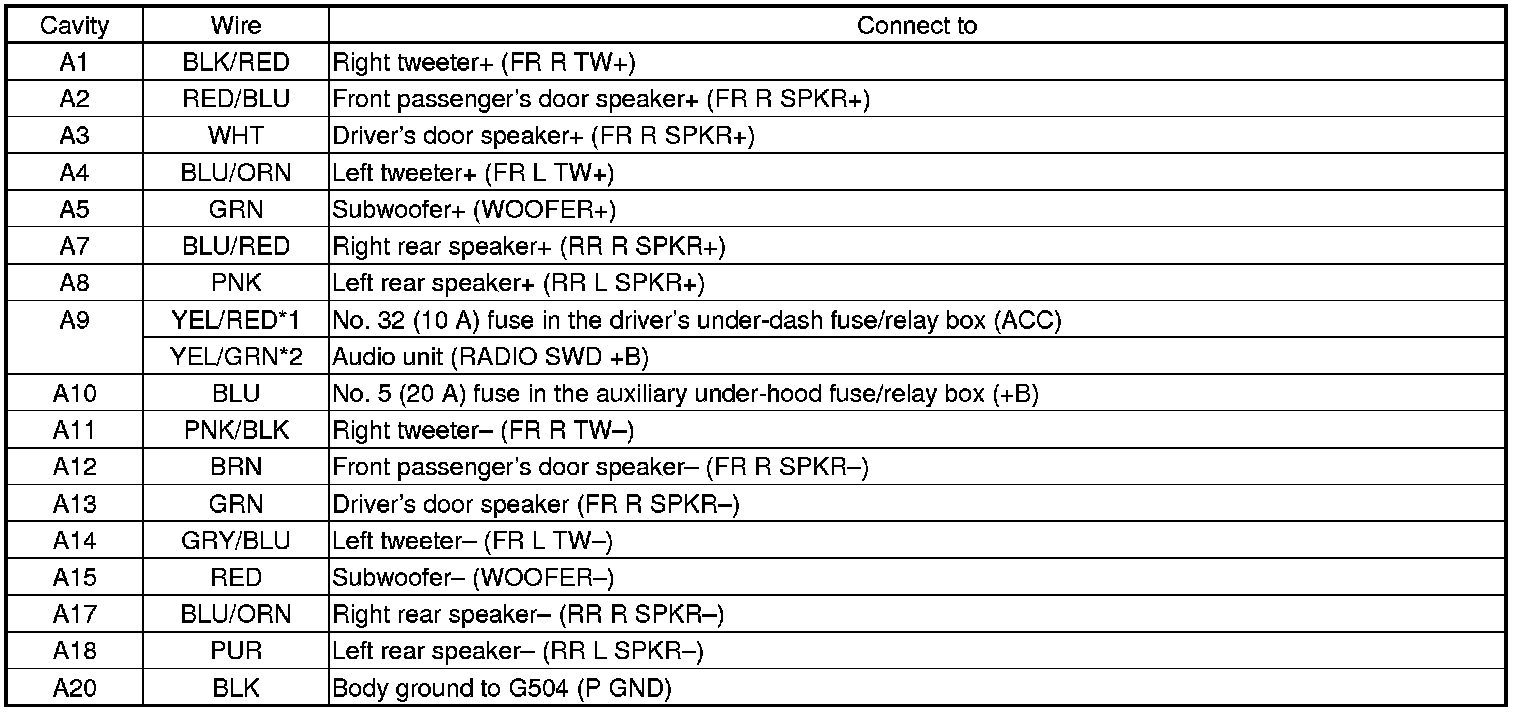

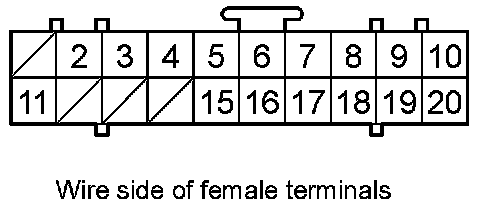

STEREO AMPLIFIER CONNECTOR A (20P)

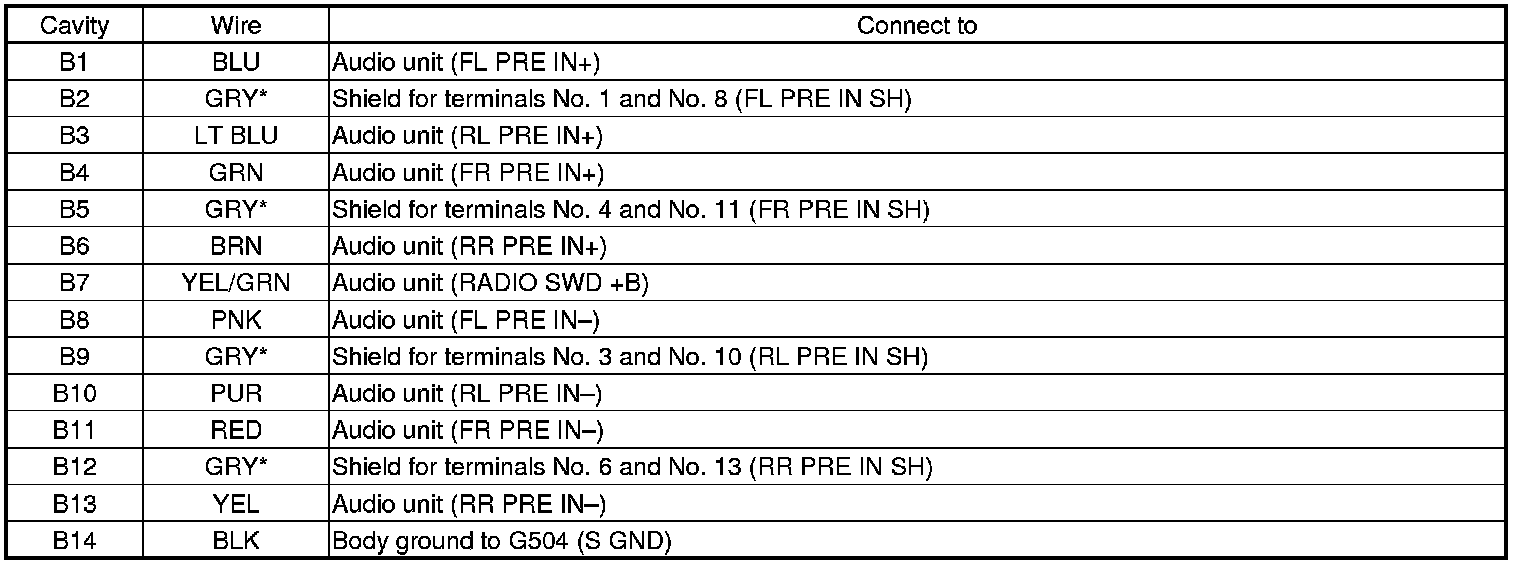

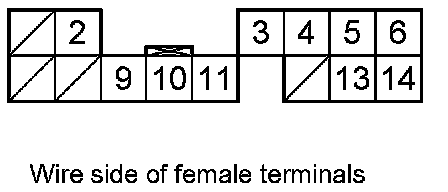

STEREO AMPLIFIER CONNECTOR B (14P)
