XM Receiver Removal/Installation

XM Receiver Removal/Installation

1. Remove the left rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

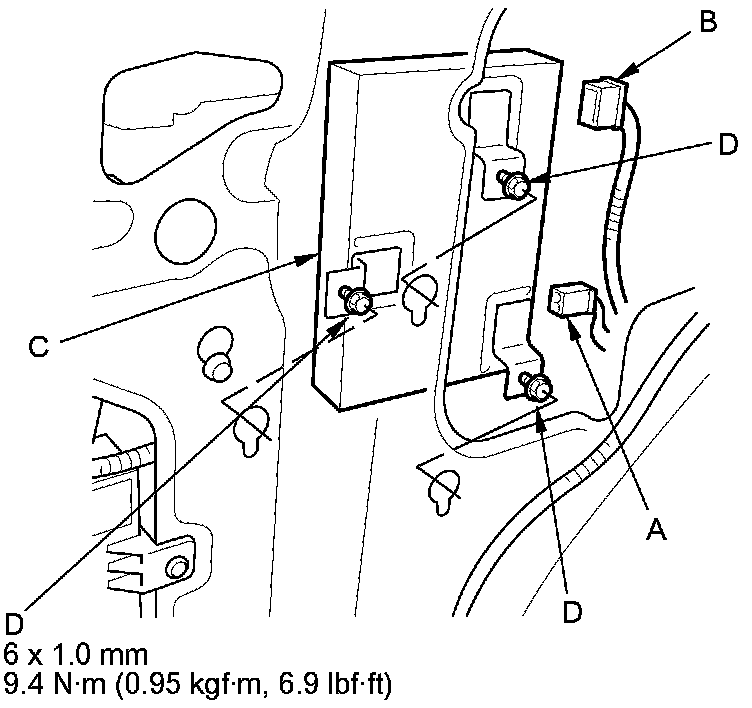

2. Disconnect the antenna 2P connector (A) and 14P connector (B) from the XM receiver (C).





3. Loosen the three bolts (D), and remove the XM receiver.

4. Install the XM receiver in the reverse order of removal.
