Audio Remote Switch Test

Audio Remote Switch Test

'07 model and '08-10 models without premium audio system

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

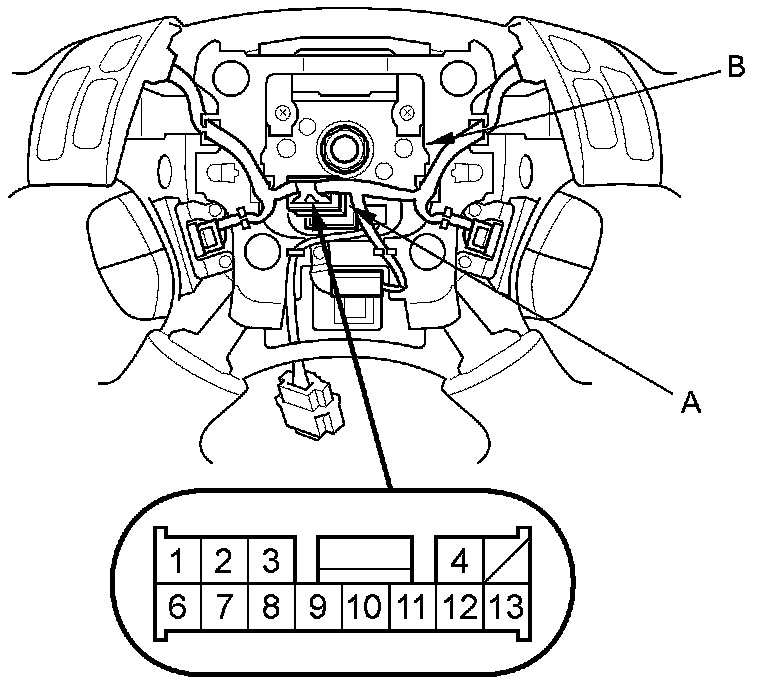

2. Disconnect the 13P connector (A) from the cable reel (B).

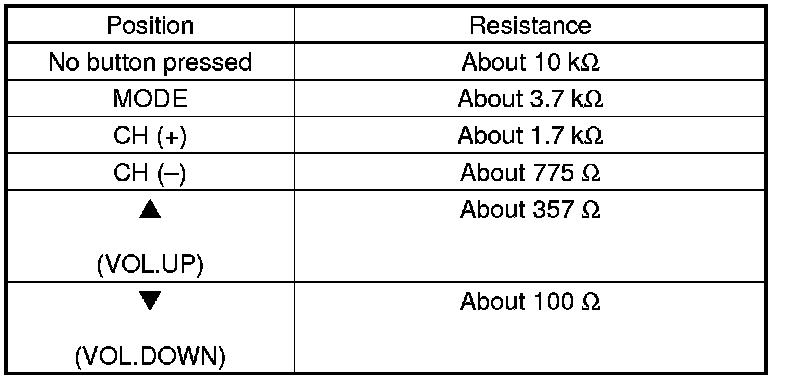

3. Measure the resistance between terminals No. 11 and No. 12 in each switch position according to the table.





4. If the resistance is not as specified, replace the audio remote switch Overhaul.

'08-10 models with premium audio system

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

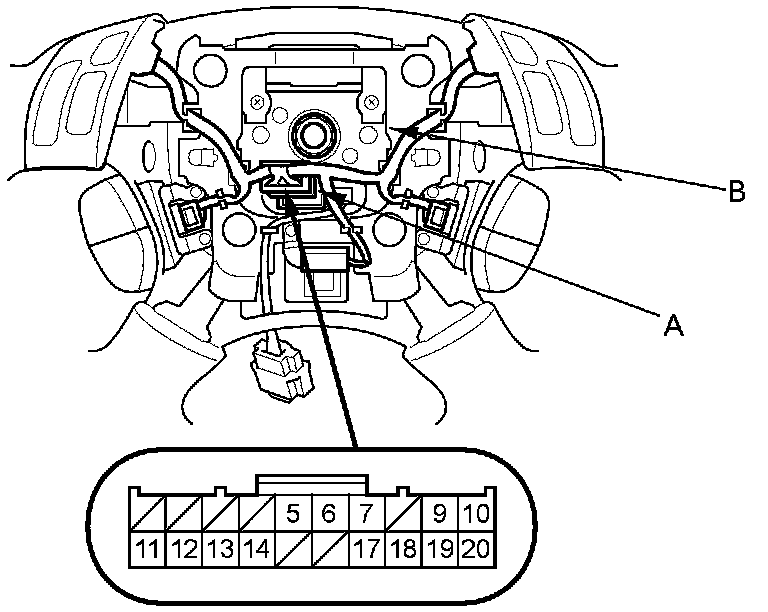

2. Disconnect the 20P connector (A) from the cable reel (B).





3. Measure the resistance between terminals No. 18 and No. 19 in each switch position according to the table.





4. If the resistance is not as specified, replace the audio remote switch Overhaul.
