Rear Bumper Removal/Installation

Rear Bumper Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Have an assistant help you when removing and installing the rear bumper.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the rear bumper or the body.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

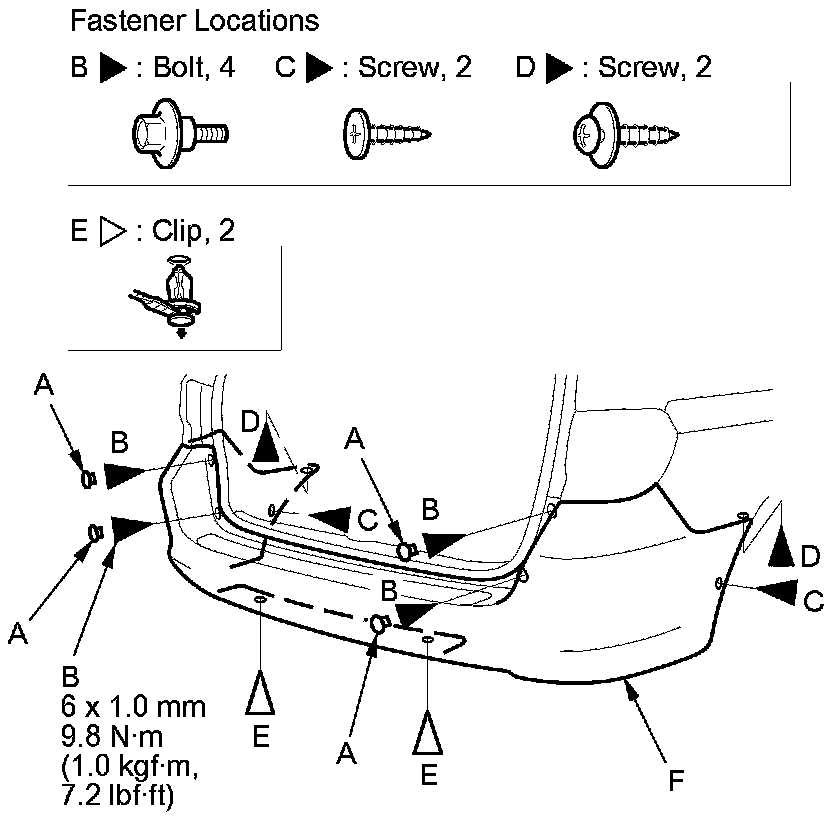

1. Pry out the caps (A), then remove the bolts (B) and the screws (C, D), and detach the clips (E) from the bumper (F).

'07 model





'08-10 models

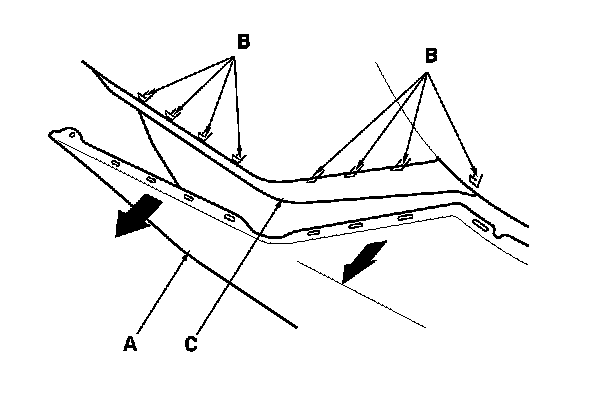

2. Pull the rear bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacers (C).

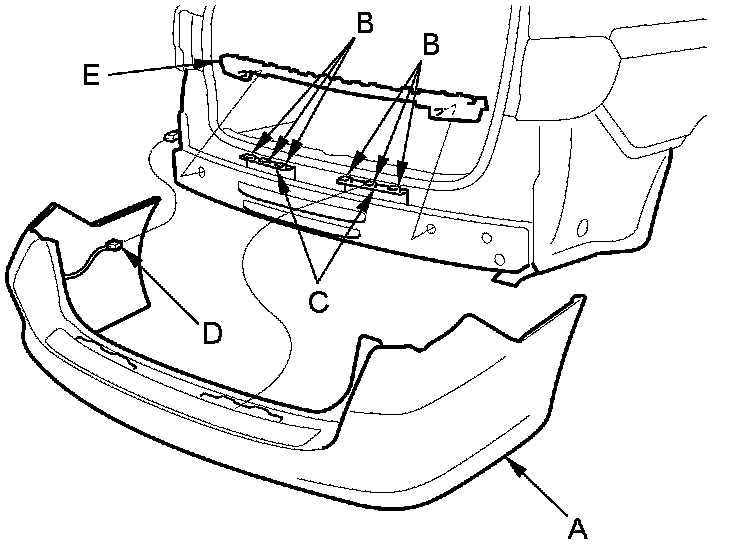

3. With the help of an assistant, pull the rear bumper (A) to release it from the hooks (B) on the upper brackets (C). Disconnect the rear bumper subharness connector (D) (for some models). If necessary, remove the absorber (E).





4. Install the bumper in the reverse order of removal, and note these item:

- Make sure the rear bumper securely engages the hooks on both side brackets and both side spacers.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
