Cabin Ventilation Duct: Service and Repair

Rear Air Outlet Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the body.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the rear bumper Rear Bumper Removal/Installation.

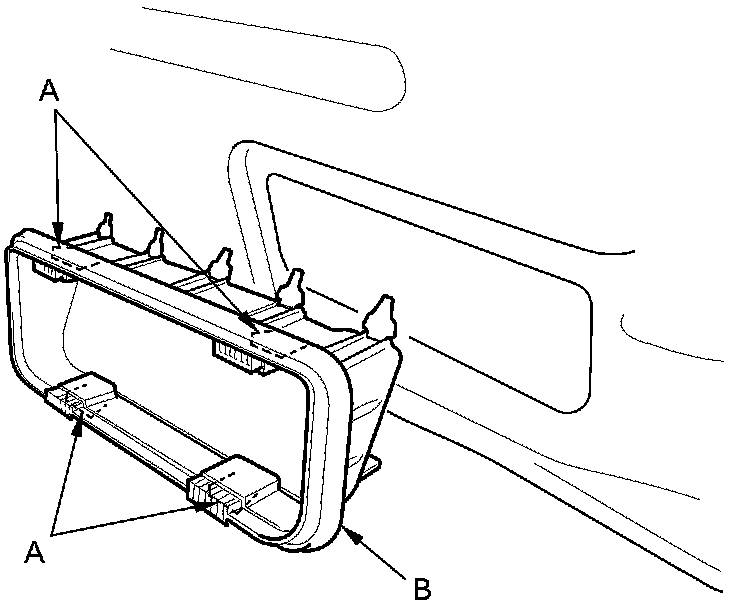

2. Detach the hooks (A), then remove the rear air outlet (B).





3. Install the air outlet by pushing on the edges until the hooks snap into place securely.
