Lower Sliding Door Roller: Service and Repair

Sliding Door Lower Roller Assembly Removal/Installation

1. Remove the lower roller plate Sliding Door Removal/Installation.

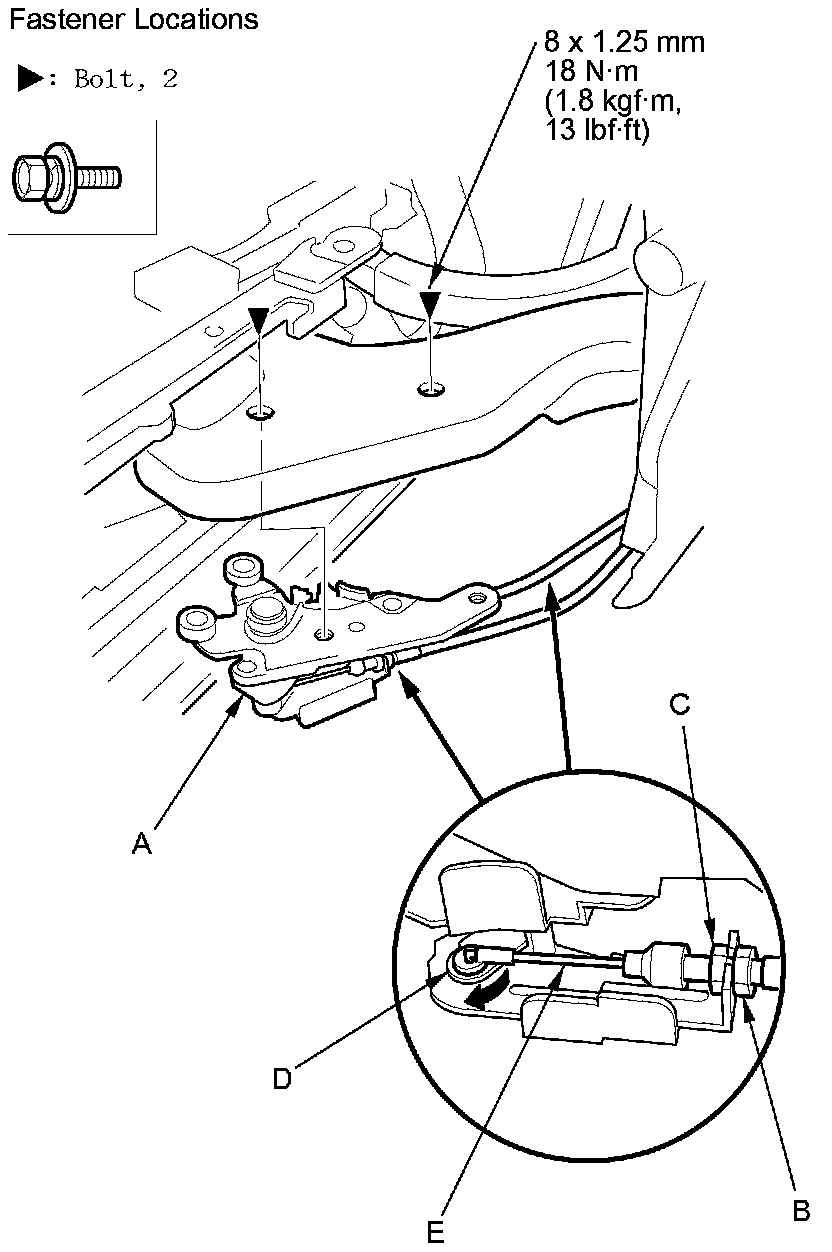

2. Remove bolts, then remove the lower roller assembly (A).





3. Loosen the locknut (B) and the adjusting nut (C) and release the cable fasteners (D), then remove the cables (E).

4. Install the cables on the new lower roller assembly.

5. Do the sliding door cable adjustment on the following cables:

- Lower roller latch cable Sliding Door Cable Adjustment
- Lower roller stop cable Sliding Door Cable Adjustment

6. Install the lower roller assembly in the reverse order of removal.
