Sliding Door Guide Pin Replacement

Sliding Door Guide Pin Replacement

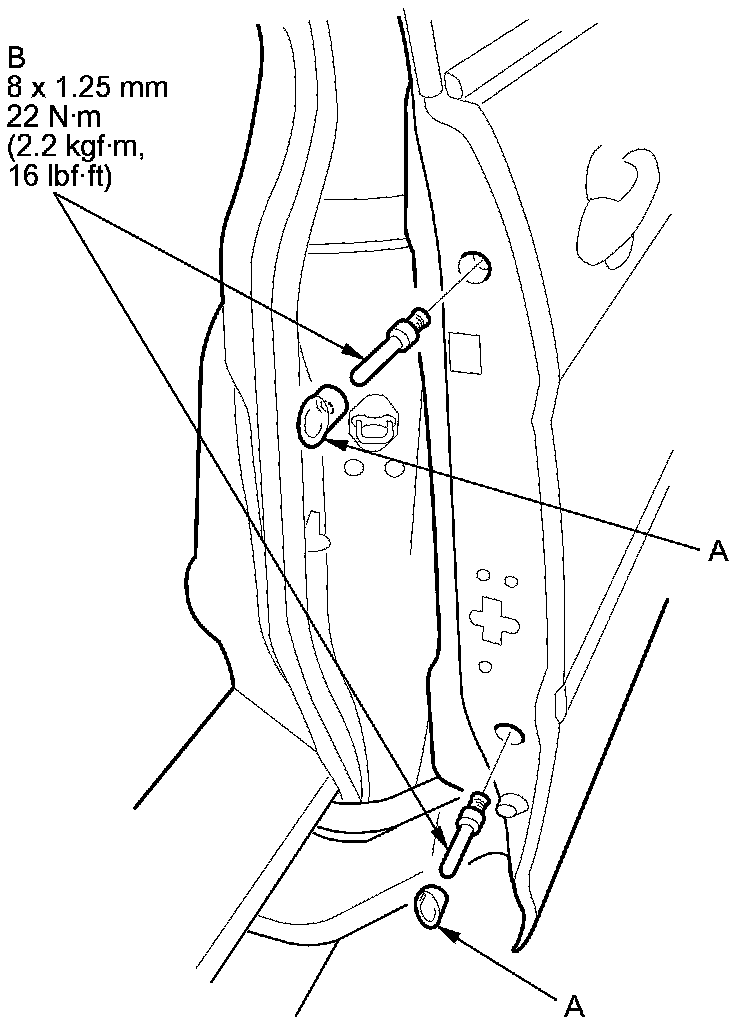

1. Remove the guide pin covers (A), then remove the guide pins (B).





2. Install the guide pins in the reverse order of removal, and apply medium strength liquid thread lock to the threads of the guide pins before reinstallation.
