Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

For Some Models

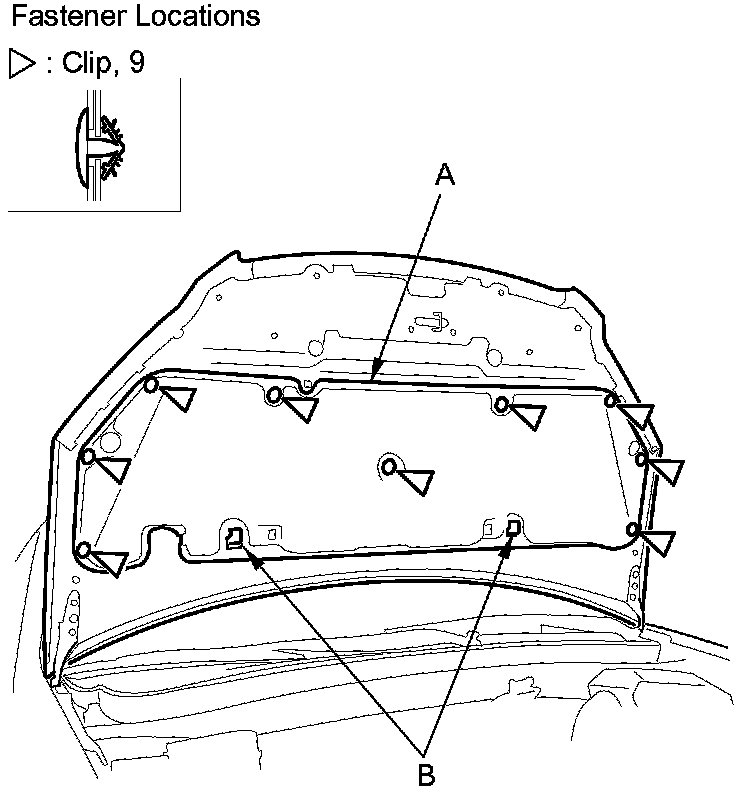

1. Detach the clips with a clip remover, then release the hood insulator (A) from the hooks (B). Take care not to bend the insulator or not to scratch the hood.





2. Install the insulator in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
