Hood Latch: Service and Repair

Hood Latch Replacement

1. Remove the front grille cover:

- '07 model
- '08-10 models Front Grille Cover Replacement

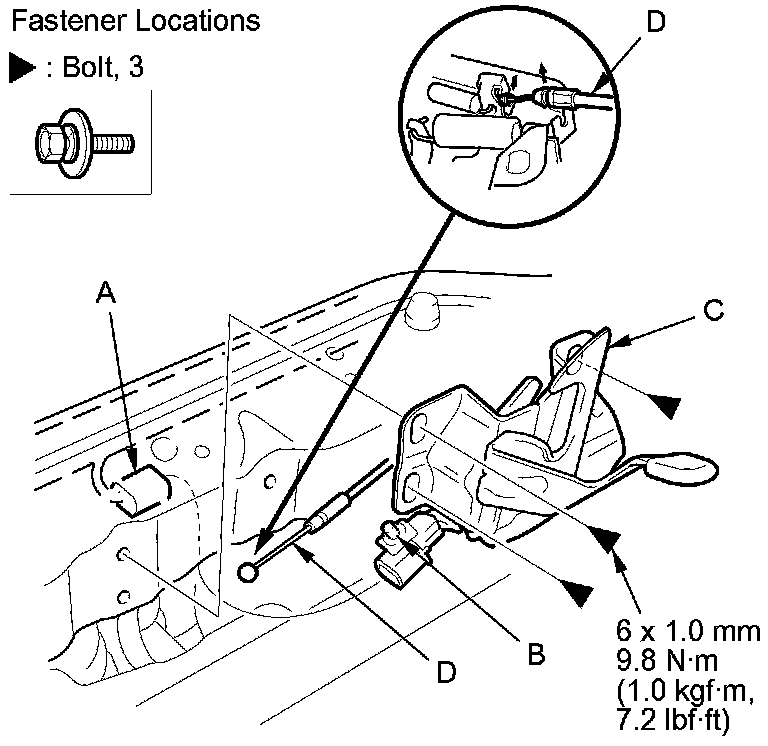

2. Disconnect the hood latch switch connector (A), then detach the connector clip (B).





3. Remove the bolts, then remove the hood latch (C) from the body.

4. Disconnect the hood opener cable (D) from the hood latch. Take care not to bend or kink the cable.

5. Install the latch in the reverse order of removal, and note these items:

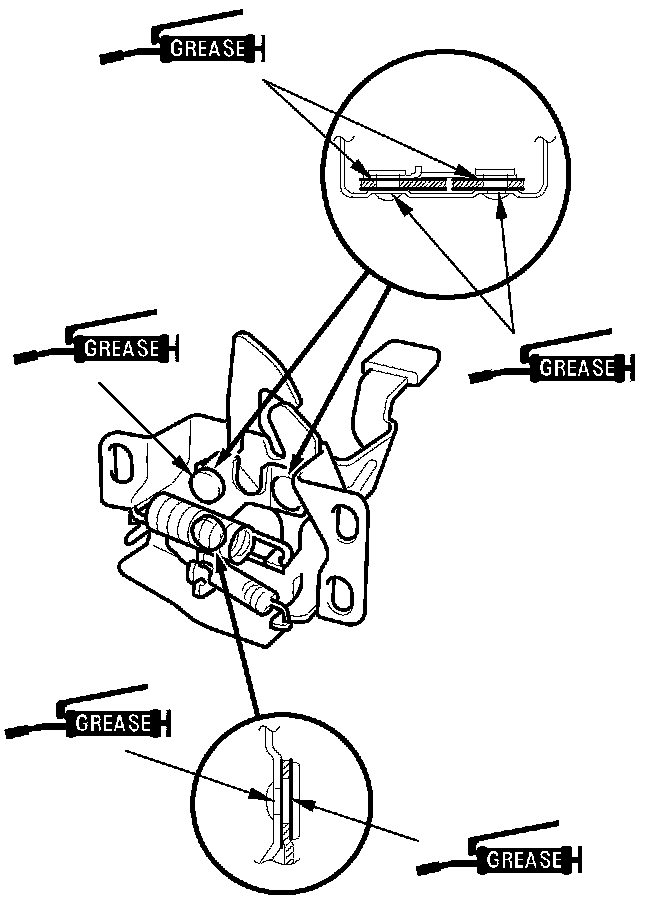

- Apply multipurpose grease to the hood latch as indicated by the arrows.
- Make sure the hood opener cable is connected properly and the hood latch switch connector is plugged in properly.
- Make sure the cable actuates the latch before you close the hood.
- Do the hood latch adjustment Adjustments.
- Make sure the hood opens properly and locks securely.
