Trunk / Liftgate: Adjustments

Tailgate Adjustment

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Put on gloves to protect your hands.

1. With power tailgate: Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before beginning work.

NOTE: Open the tailgate by using the emergency lever while adjusting the tailgate Tailgate Latch Replacement (With Power Tailgate).

2. Remove these items:

- Support strut from each side Service and Repair
- With power tailgate: Power tailgate drive unit Service and Repair

3. Slightly loosen each bolt.

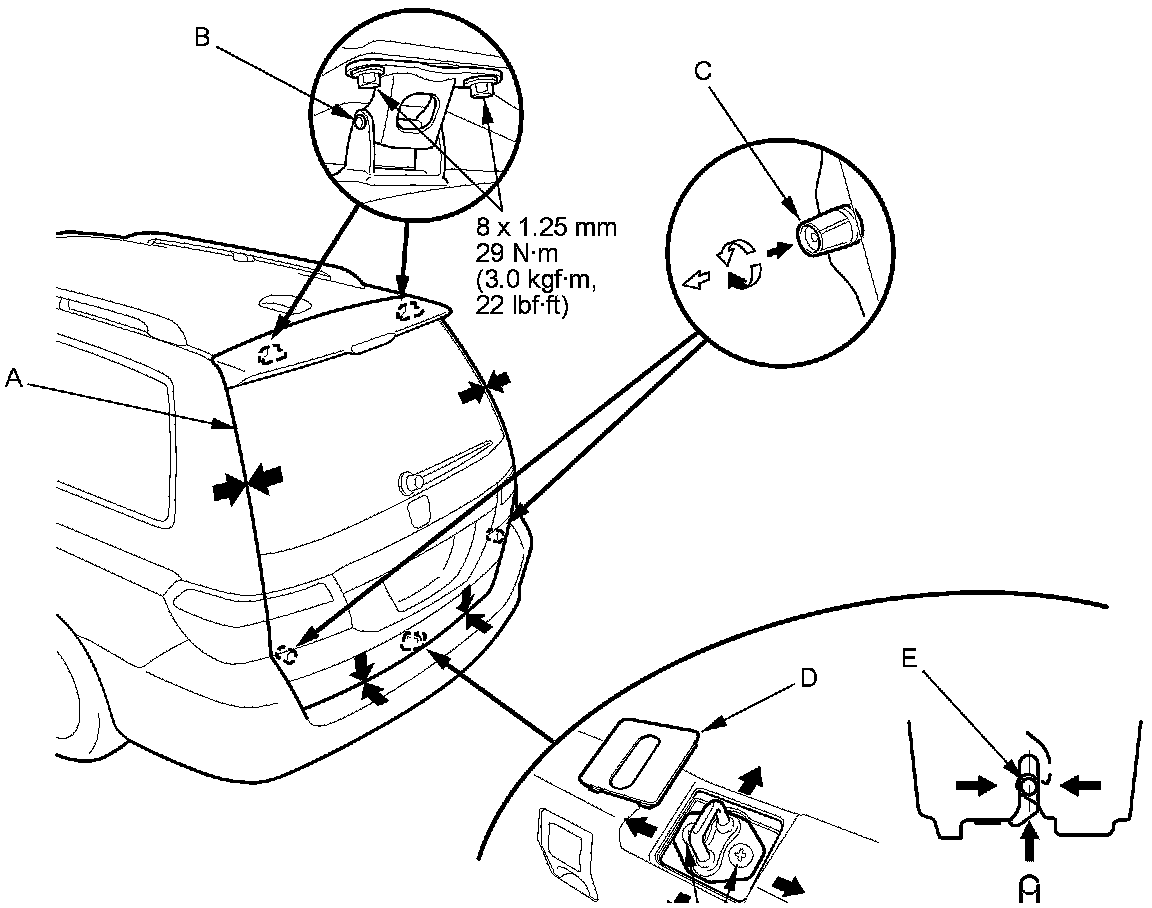

4. Adjust the tailgate (A) alignment in the following sequence:

- On the vehicle without power tailgate, pull down the rear area of the headliner Service and Repair. Take care not to bend the headliner excessively. Adjust the tailgate hinges (B) right and left, as well as forward and rearward, using the elongated holes.
- Turn the tailgate edge cushions (C), in or out as necessary, to make the tailgate fit flush with the body at the side edges.
- Remove the rear trim panel lid (D).
- Adjust the fit between the tailgate and tailgate opening by moving the striker (E).





5. Tighten each bolt to the specified torque with a torque wrench.

6. Check that the tailgate opens properly and locks securely.

7. Reinstall the support struts securely.

8. Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

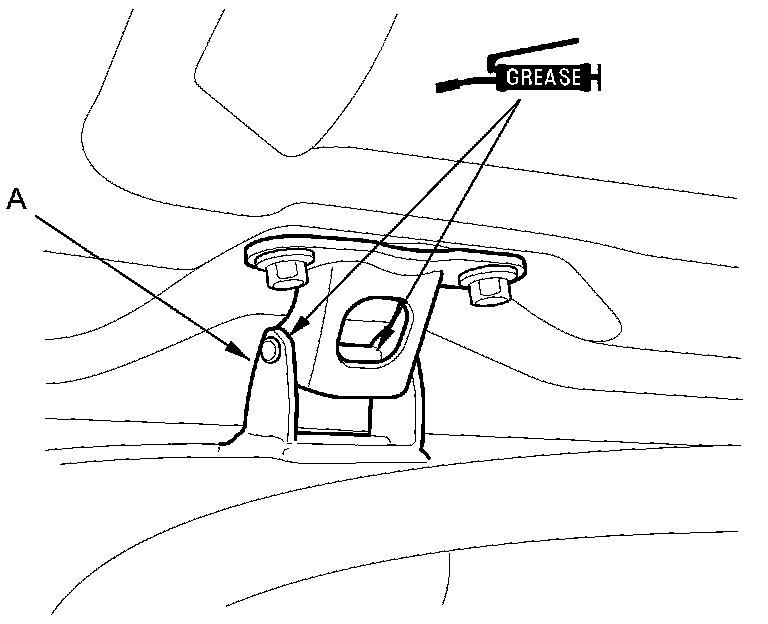

9. Apply multipurpose grease to the pivot area of the tailgate hinges (A) as indicated by the arrows.





10. Reinstall all remaining removed parts.

11. With power tailgate: Do the battery terminal reconnection procedure Procedures.
