Power Tailgate Outside Beeper Test/Replacement

Power Tailgate Outside Beeper Test/Replacement

1. Remove the rear bumper Rear Bumper Removal/Installation.

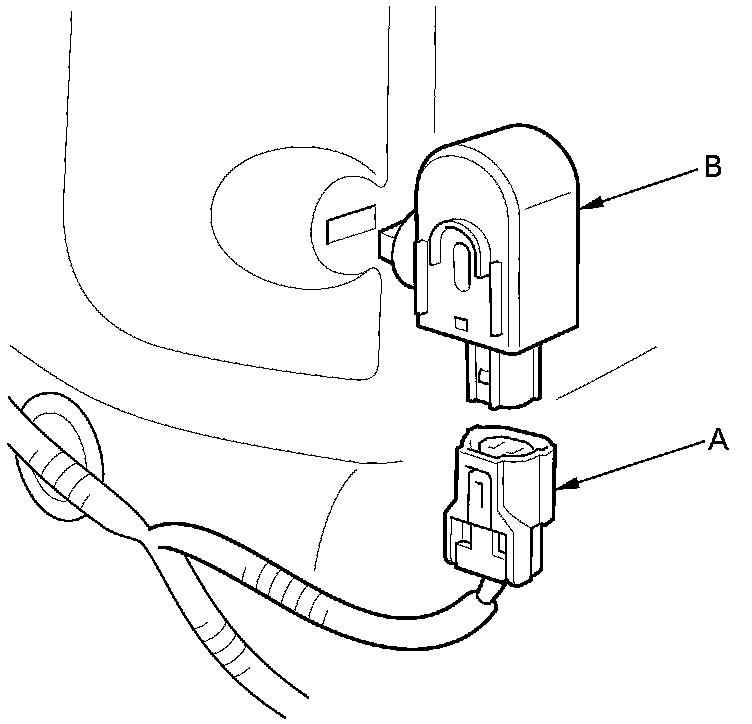

2. Disconnect the 2P connector (A) from the power tailgate beeper (B), then remove the beeper.





3. Test the beeper by connecting battery power to terminal No. 1 and ground to terminal No. 2. The beeper should click.

4. If the beeper does not click, replace it.
