Tailgate Handle Replacement (With Power Tailgate)

Tailgate Handle Replacement

With Power Tailgate

NOTE: Put on gloves to protect your hands.

1. Remove the rear license trim:

- '07 model
- '08-10 models Service and Repair

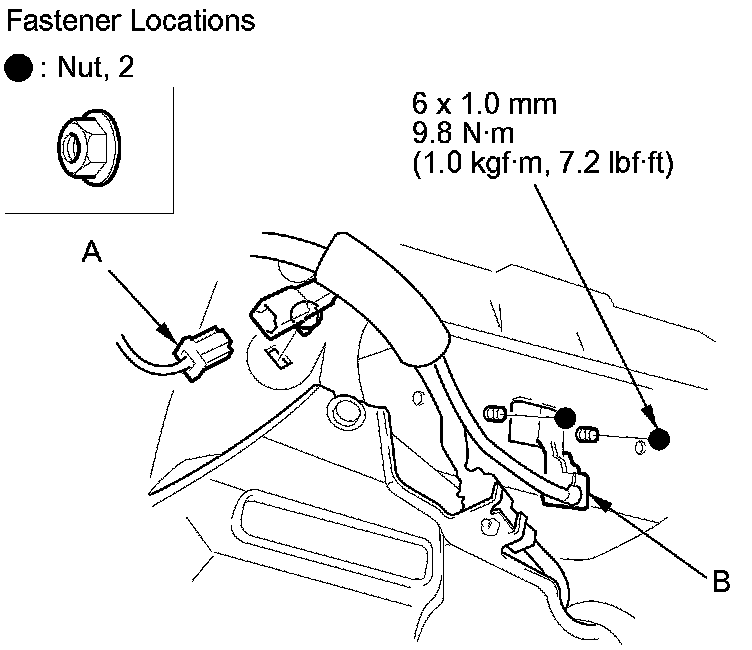

2. Disconnect the tailgate handle connector (A), and remove the nuts.





3. From outside of the tailgate, pull out the tailgate handle (B), then remove it.

4. Install the handle in the reverse order of removal, and note these items:

- Make sure the tailgate handle connector is plugged in properly.
- Make sure the tailgate opens properly.
