Body Emblem: Service and Repair

Emblem Replacement

'07 Model

NOTE: When using dental floss to cut the emblem adhesive, take care not to scratch the body.

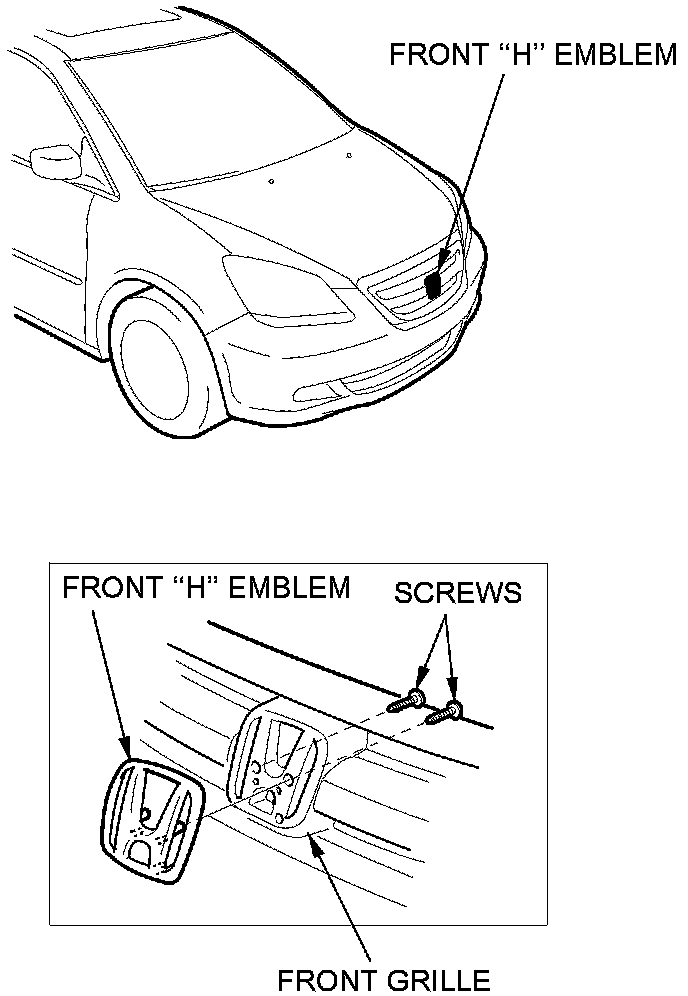

1. To remove the front "H" emblem, remove the front grille.

2. Clean the bonding surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

3. Apply the emblems where shown.






'08-10 Models

NOTE: When using dental floss to cut the emblem adhesive, take care not to scratch the body.

1. To remove the front "H" emblem, remove the front "H" emblem base Front Grille Replacement.

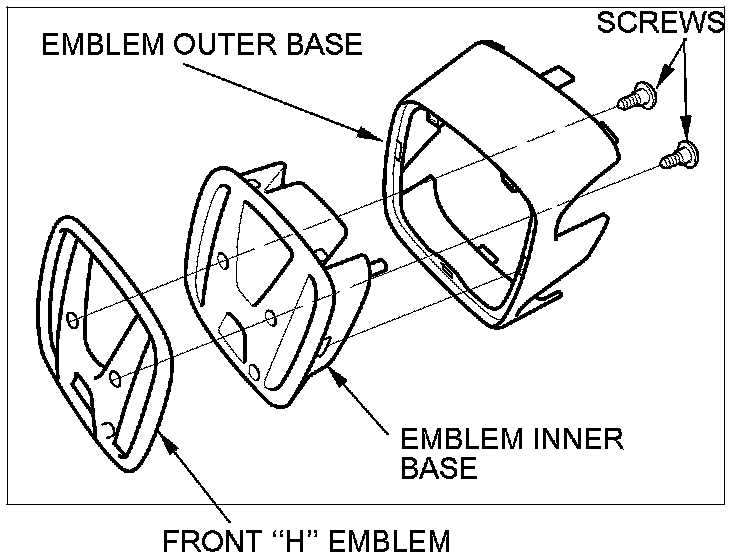

2. Remove the front "H" emblem from the base.

3. Clean the bonding surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

4. Apply the emblems where shown.

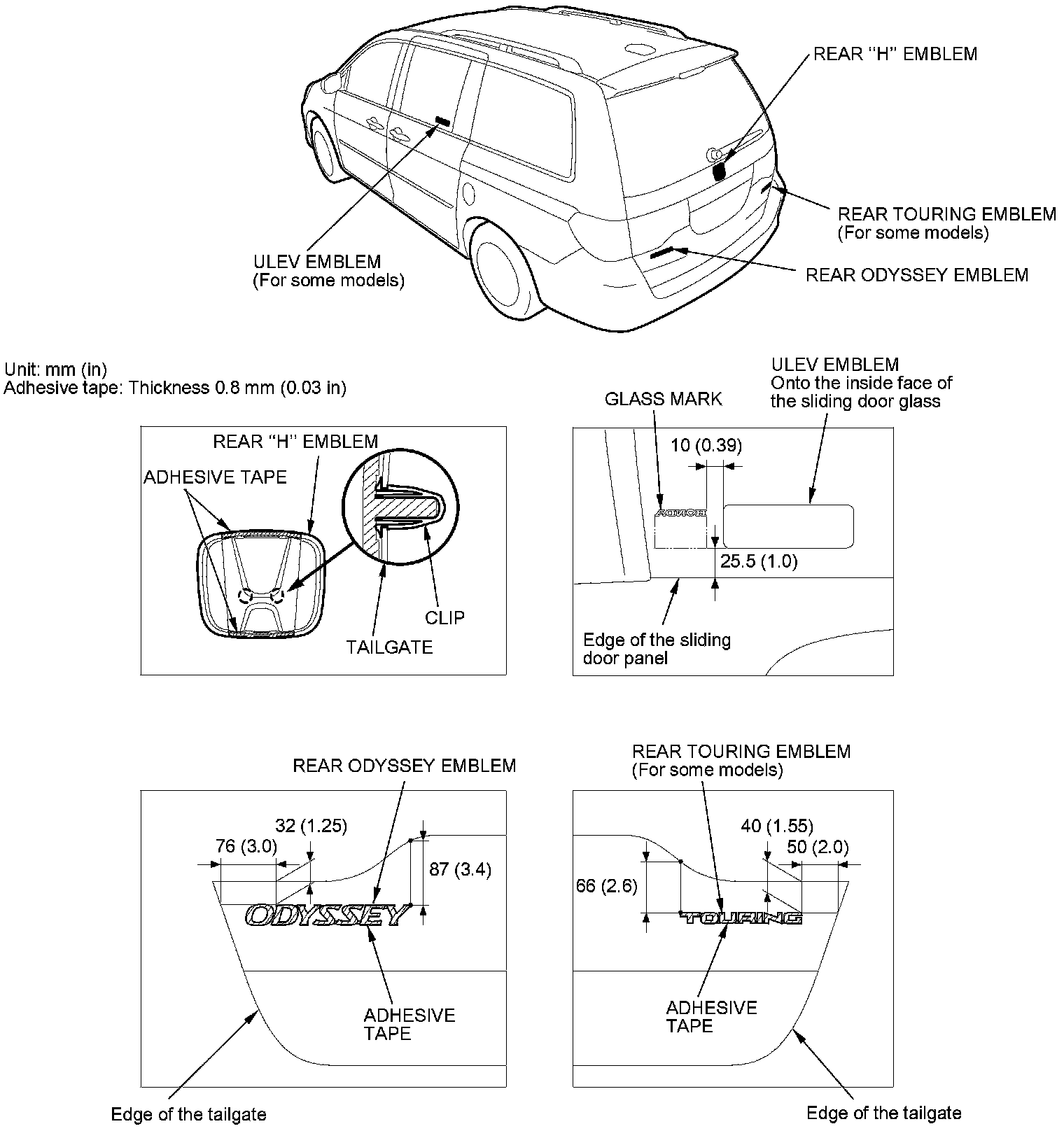

'07 Model

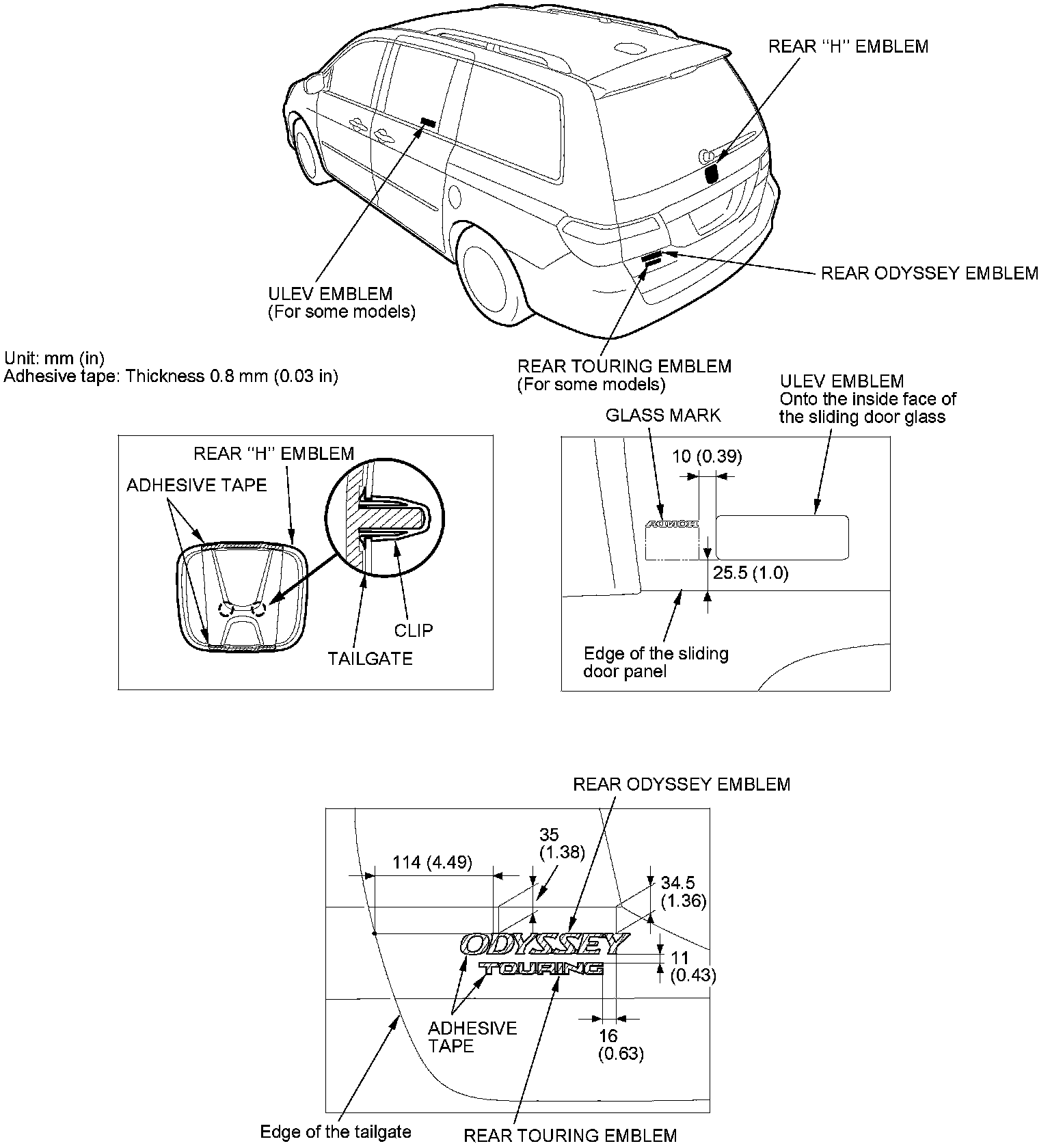

'08 Model

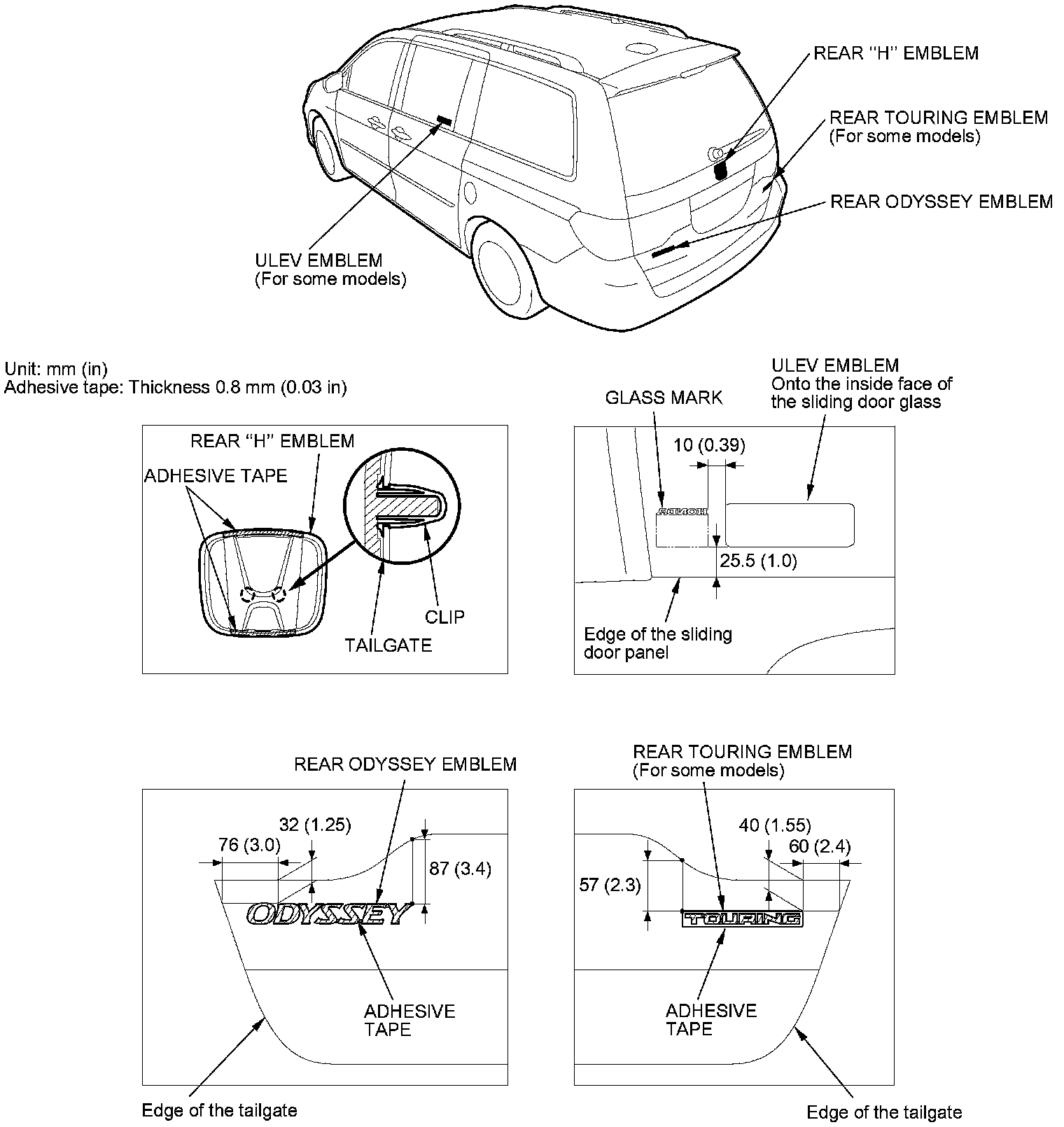

'09 -10 Models
