Front Inner Fender Replacement

Front Inner Fender Replacement

'08-10 Models

NOTE:

- Take care not to scratch the body.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

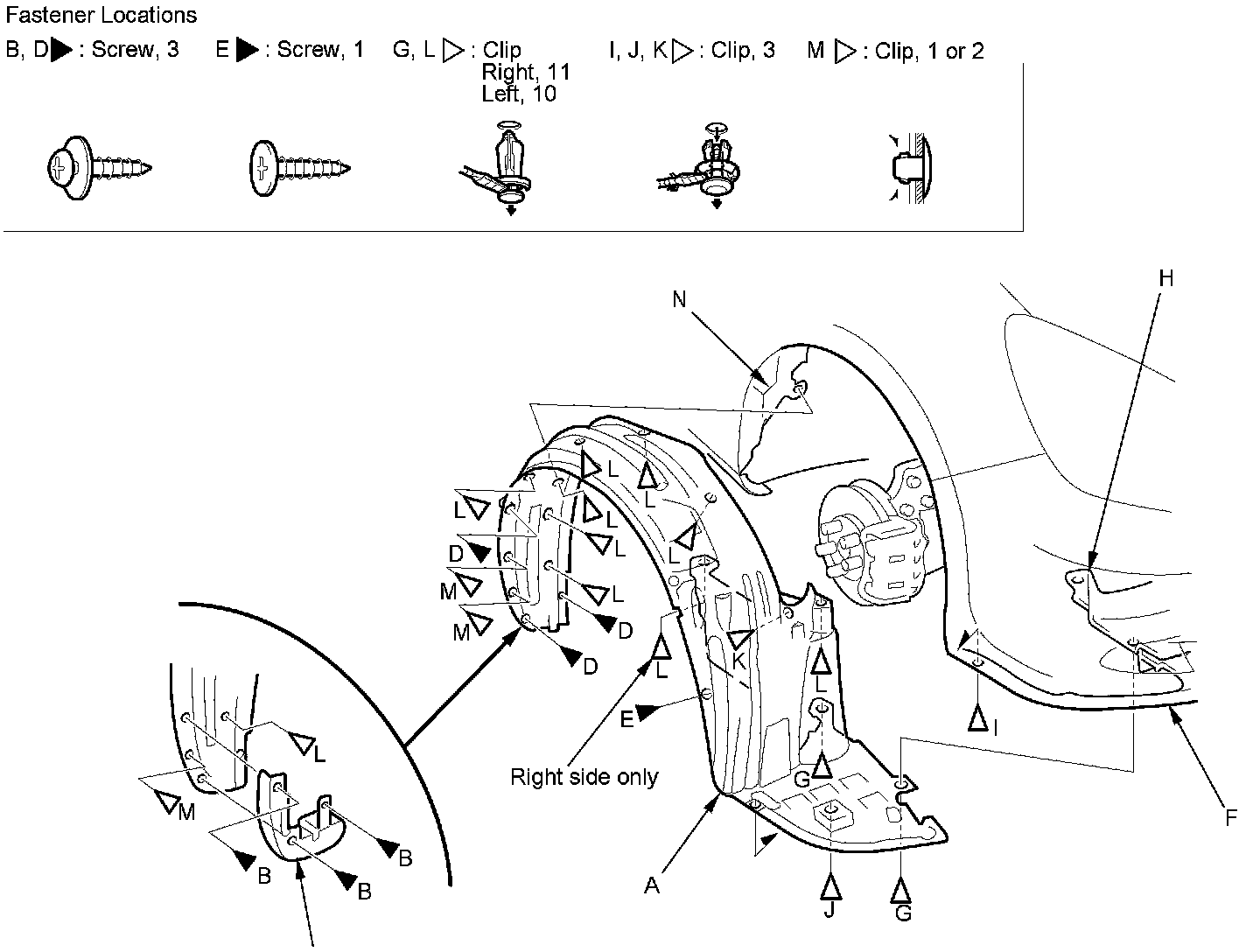

1. Remove the front inner fender (A).

1. With splash guard: On the back of the wheel arch, remove the screws (B), then remove the splash guard (C).

2. Without splash guard: On the back of the wheel arch, remove the screws (D, E).

3. From under the front bumper (F), remove the clips (G) securing the front splash shield (H) and the front inner fender, and remove the clip (I) securing the front bumper and the front inner fender, and remove the clip (J) securing the front inner fender on the body.

4. From the wheel arch, remove the clips (K, L, M) securing the front inner fender and the front fender fairing (N) on the body.

5. Pull out the front inner fender.





2. Install the inner fender in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
